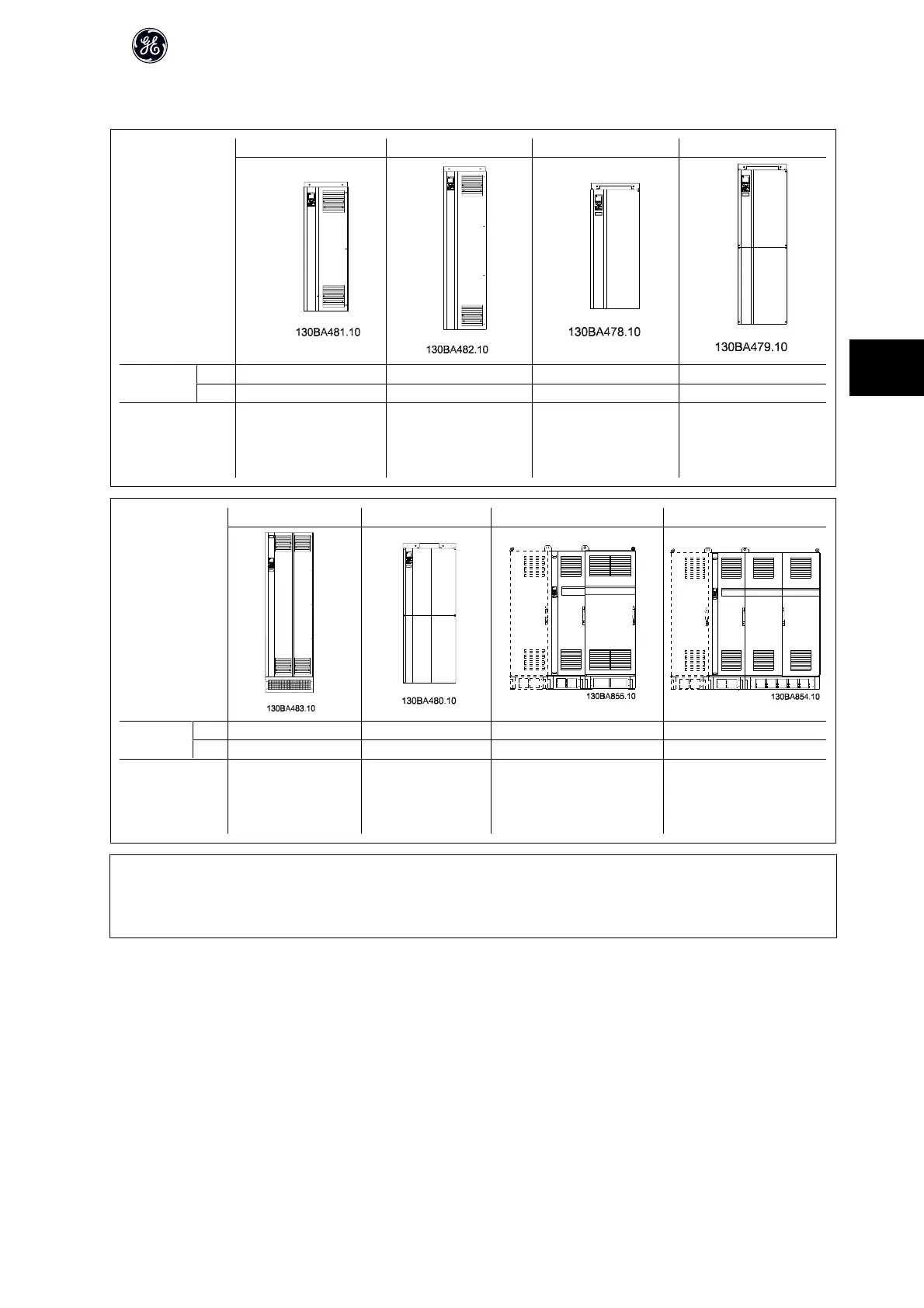

5.2.6 Rated Power
Unit Size 41 42 43 44
IP 21/54 21/54 00 00
NEMA Type 1/ Type 12 Type 1/ Type 12 Chassis Chassis
Light duty rated power
- 160% overload tor-
que
150 - 200 HP at 460 V
(380 - 480 V)
150 - 200 HP at 575 V
(525-600 V)
250 - 350 HP at 460 V
(380 - 480 V)
250 - 400 HP at 575 V
(525-600 V)
150 - 200 HP at 460 V
(380 - 480 V)
150 - 200 HP at 575 V
(525-600 V)
250 - 350 HP at 460 V
(380 - 480 V)
250 - 400 HP at 575 V
(525-600 V)
Unit Size 51 52 61/63 62/64
IP 21/54 00 21/54 21/54
NEMA Type 1/ Type 12 Chassis Type 1/ Type 12 Type 1/ Type 12
Light duty rated pow-
er - 160% overload
torque
350 - 600 HP at 460 V
(380 - 480 V)
450 - 650 HP at 575 V
(525-600 V)
350 - 600 HP at 460 V
(380 - 480 V)
450 - 650 HP at 575 V
(525-600 V)
650 - 1000 HP at 460 V
(380 - 480 V)
750 - 1050 HP at 575 V
(525-600 V)
1200 - 1350 HP at 460 V
(380 - 480 V)
1150 - 1350 HP at 575 V
(525-600 V)
NB!
The unit sizes 6X have four different sizes, 61, 62, 63 and 64 The 61 and 62 consist of an inverter cabinet on the right and rectifier cabinet on the left. The 63 and
64 have an additional options cabinet left of the rectifier cabinet. The 63 is an 61 with an additional options cabinet. The 64 is an 62 with an additional options
cabinet.
