3.2.3 Speed Up/Down

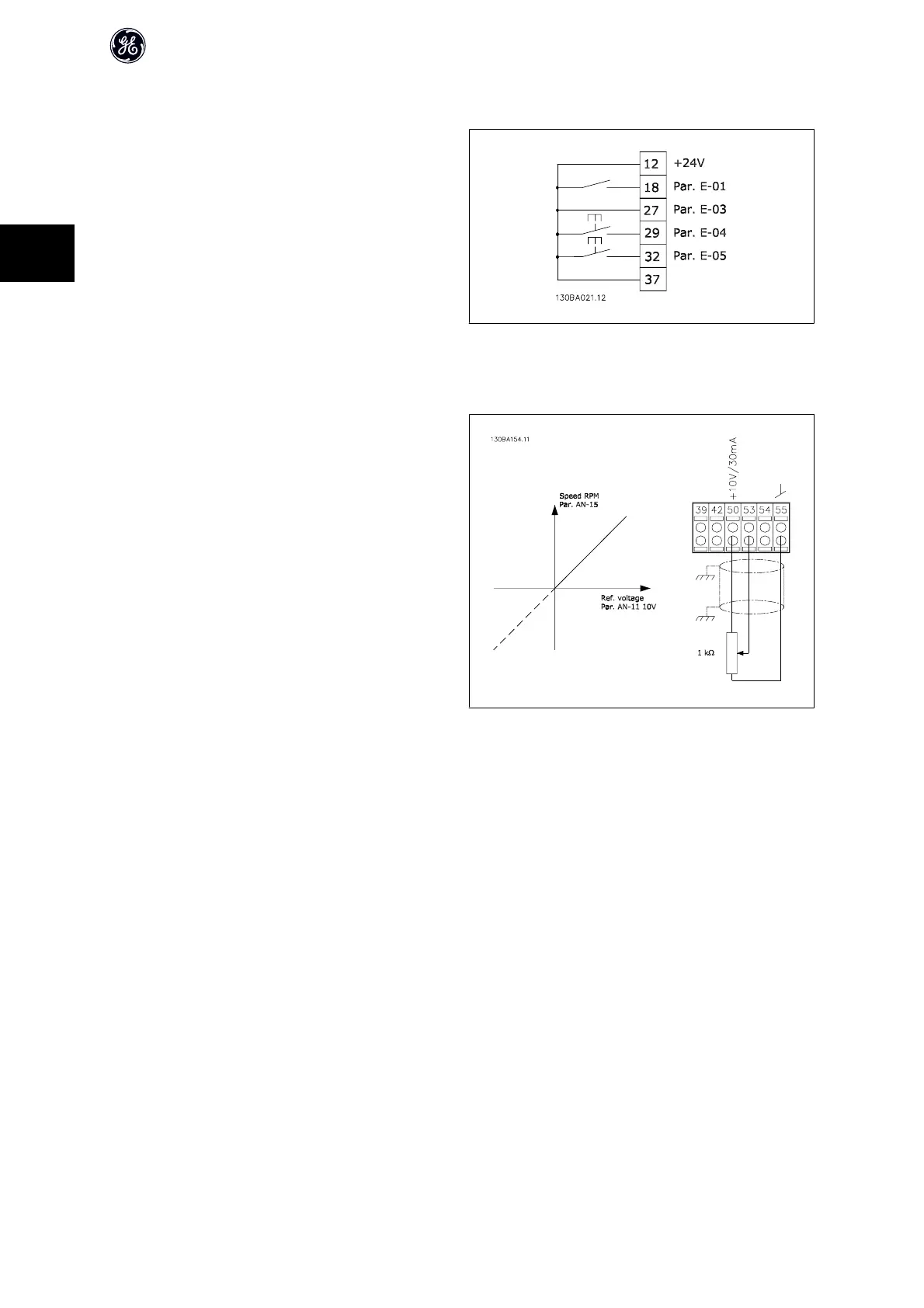

Terminals 29/32 = Speed up/down:.
Terminal 18 = par. E-01 Terminal 18 Digital Input Start [9] (default)
Terminal 27 = par. E-03 Terminal 27 Digital Input Freeze reference
[19]
Terminal 29 = par. E-04 Terminal 29 Digital Input Speed up [21]
Terminal 32 = par. E-05 Terminal 32 Digital Input Speed down [22]
3.2.4 Potentiometer Reference
Voltage reference via a potentiometer:
Reference Source 1 = [1] Analog input 53 (default)
Terminal 53, Low Voltage = 0 Volt
Terminal 53, High Voltage = 10 Volt
Terminal 53, Low Ref./Feedback = 0 RPM
Terminal 53, High Ref./Feedback = 1500 RPM
Switch S201 = OFF (U)
