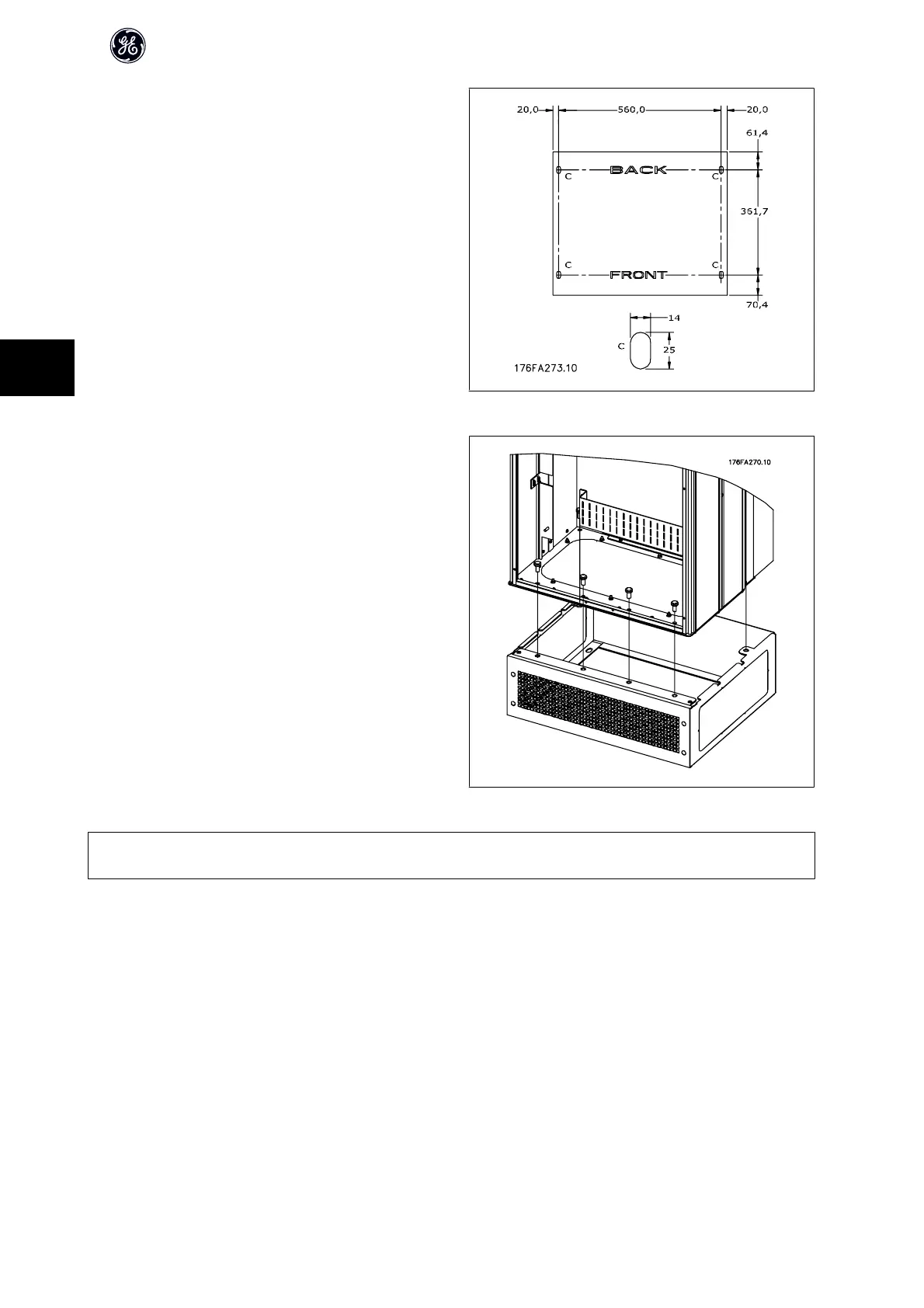

Install the pedestal on the floor. Fixing holes are to be drilled according to this
figure:
Illustration 5.37: Drill master for fixing holes in floor.
Mount the drive on the pedestal and fix it with the included bolts to the ped-
estal as shown on the illustration.
Illustration 5.38: Mounting of drive to pedestal
NB!
Please consult GE for more details on the pedestal kits.
