3.5.3 Gradient section and components
I
ntroduction
This section describes the gradient section.
Gradient section parts

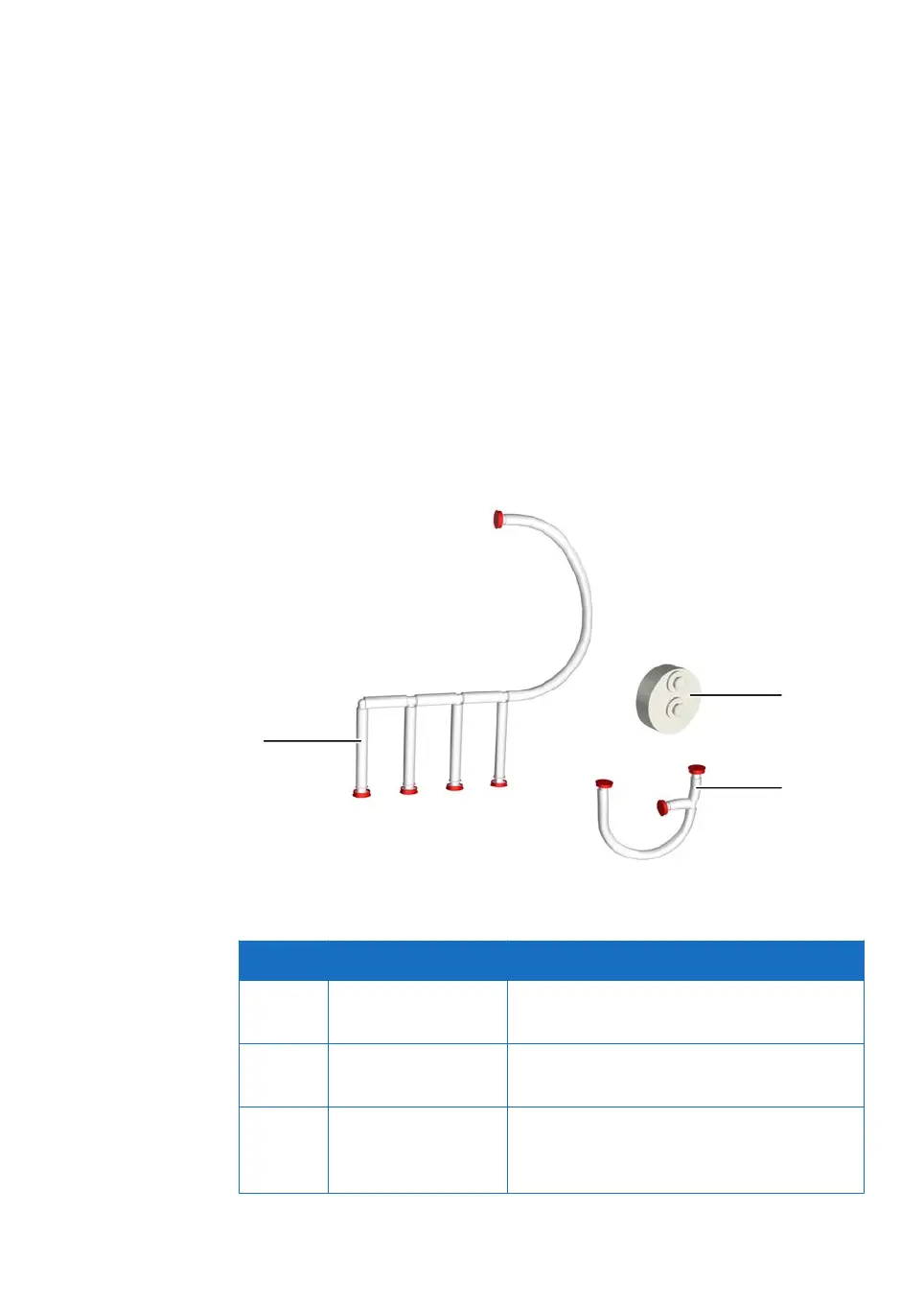

The gradient section is delivered as three parts. Each part constituting the gradient
section are sanitized by gamma irradiation and ready for use with ÄKTA ready XL.
Detailed specifications for the section are found in the product documentation sup-
plied with each section.
1
2
3
No. Part Function
1 Inlet manifold Manifold with 4 inlets corresponding to
v
alves XV-011 to XV-014.
2 Gradient pump
chamber (head)
Pump chamber to be assembled on the
P-201.B pump motor
3 Jumper tubing Tubing to be connected between the isocrat-
i
c pump P-201.A and gradient pump
P-201.B.
3 System description
3
.5 Flow kits
3.5.3 Gradient section and components
ÄKTA ready XL Operating Instructions 29281616 AE 71
