4.3.3 Connect compressed air supply
I
ntroduction
This section describes how to connect the compressed air supply.
For requirements on air supply, refer to Section 4.1 Site requirements, on page 77 and
Section 9.1 Specifications, on page 150.
Connect compressed air supply
Step Action
1
Connect compressed air to the air supply connection on the electrical cabi-
n
et.

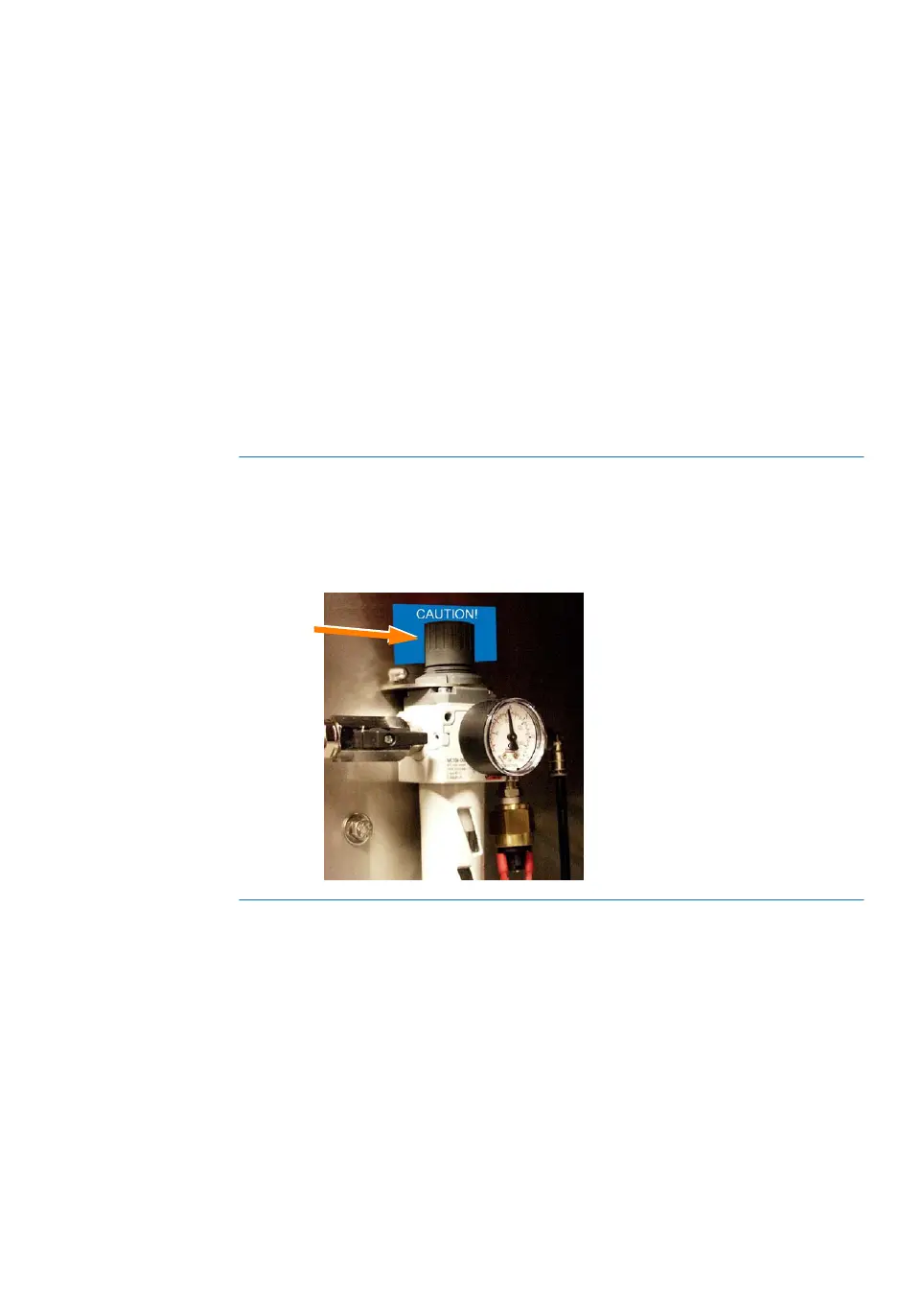

2 Make sure that the air supply pressure is between 6.5 to 10 bar g. The regu-
l
ator is set to 6.5 bar g at the factory and shall not be changed.
