Installation
2001989-203C ApexPro™ Telemetry 3-11
NOTE
The brackets used for handle installation can be used instead of the side
brackets for the end rack mounting option.

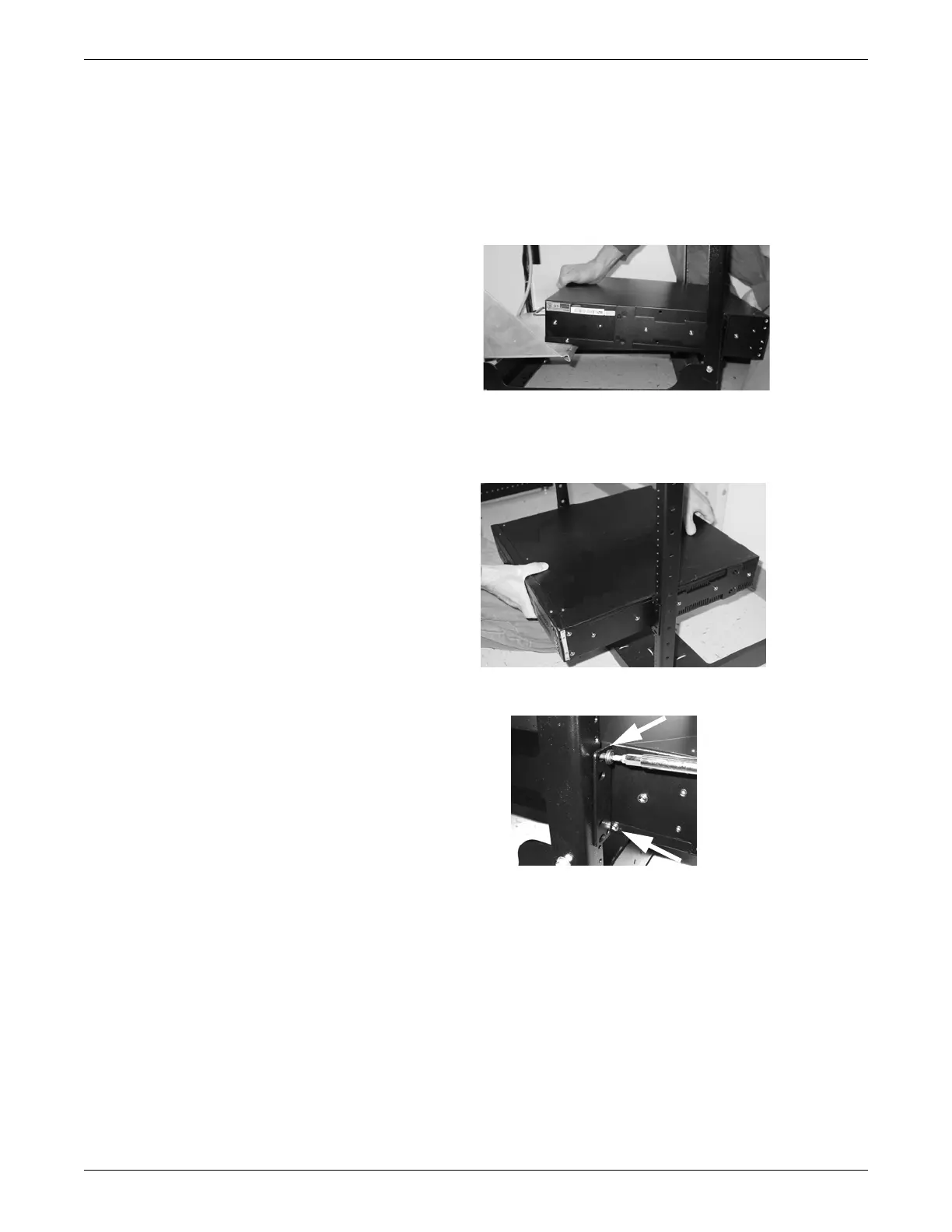

b. For end, or offset rack mounting options, position the ATS with the back
resting on the shelf installed in the previous step.
171A
c. For the center rack mounting option, have a second person assist by holding
the ATS in position in the rack while it is being secured. Align the flanges on
the installation brackets with the rack rails. Make sure the ATS is level.
173A
6. Secure the side brackets/ATS in the rack with 4 rack rail screws.
172A
Rack shelf mounting
NOTE
ATS shelf-mounting requires a 4-post rack. The ATS must rest level when it is
secured at the front rack posts, and rests on the shelf at the back.
1. Determine a position in the rack for the ATS shelf. The shelf should be installed
on the back rails.
2. Position the shelf as determined in the previous step.
