CHAPTER 3: CONNECTING TO DEVICES AND NETWORKS

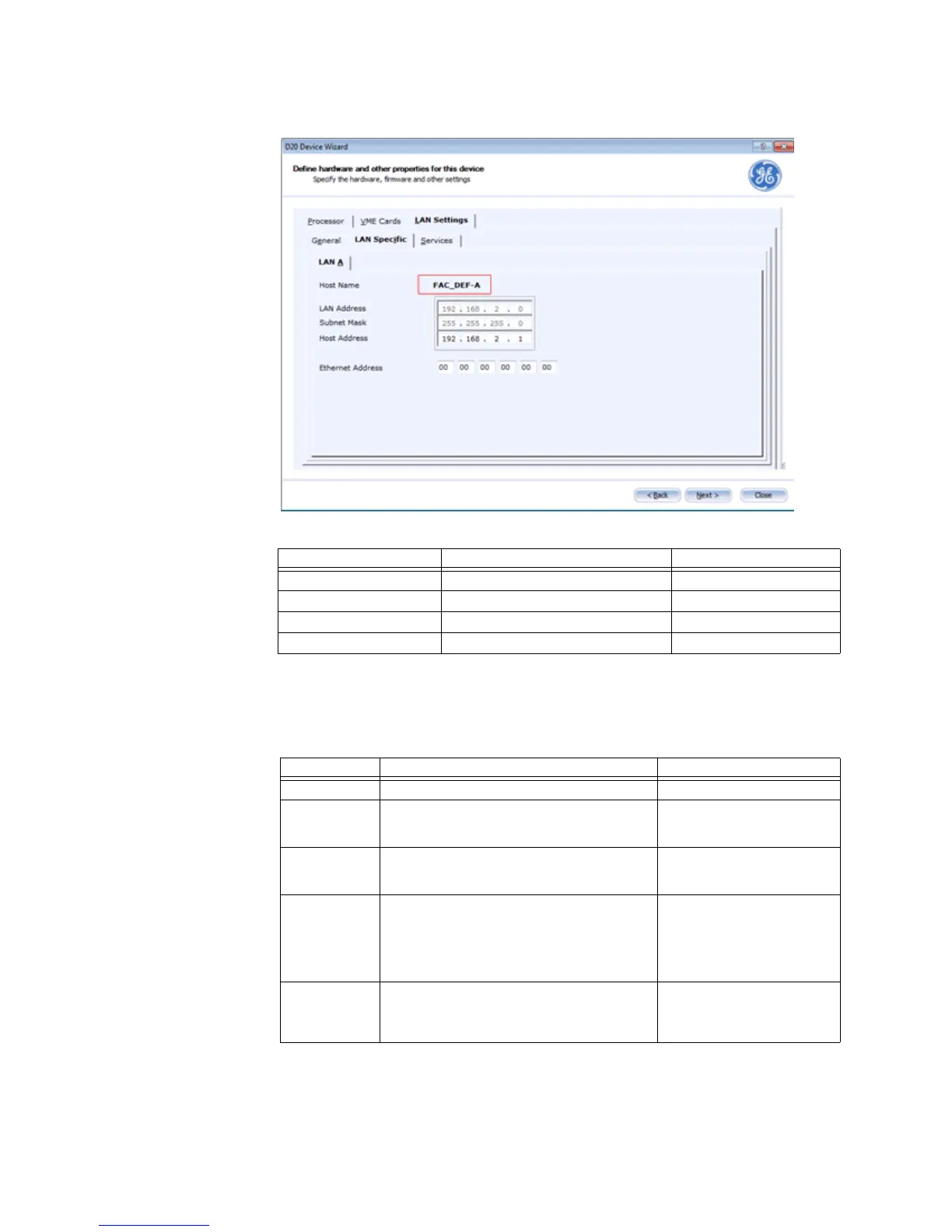

Figure 18: SGConfig - Host name shown in the LAN Settings
Table 19: Host name suffix conventions
The D20MX can be in one of five modes as defined in Table 20. You can find the current
mode of the D20MX by navigating to the SHELL in WESMAINT II+ and typing the command
el.
Table 20: System mode definitions
HostName Suffix IP Address Corresponds To... Example
AA CCU A, LAN A FAC_DEFAA
AB CCU A, LAN B FAC_DEFAB
BA CCU B, LAN A FAC_DEFBA
BB CCU B, LAN B FAC_DEFBB
Mode Description Partial “el” output
Active D20MX applications are operational. Active CCU YES
Standby D20MX applications are not operational but are
ready to take over on a switchover command or
a failover.
Standby CCU YES
Disabled D20MX applications have been suspended due
to an error. You must type el /r and boot in the
SHELL to clear this error.
Disabled YES
Debug D20MX boot sequence has been interrupted by
pressing CTRL-E. Put the CCU into this mode in
order to recover a system that has a corrupted
configuration or code image.
Redundant CCU NO
Standby CCU NO
Active CCU NO
Service Mode NO
Sys Service Mode NO
Disabled NO
Service Mode D20MX configuration has been corrupted or is in
the process of receiving a new configuration. To
recover the system, you must download a
configuration serially.
Service Mode YES
