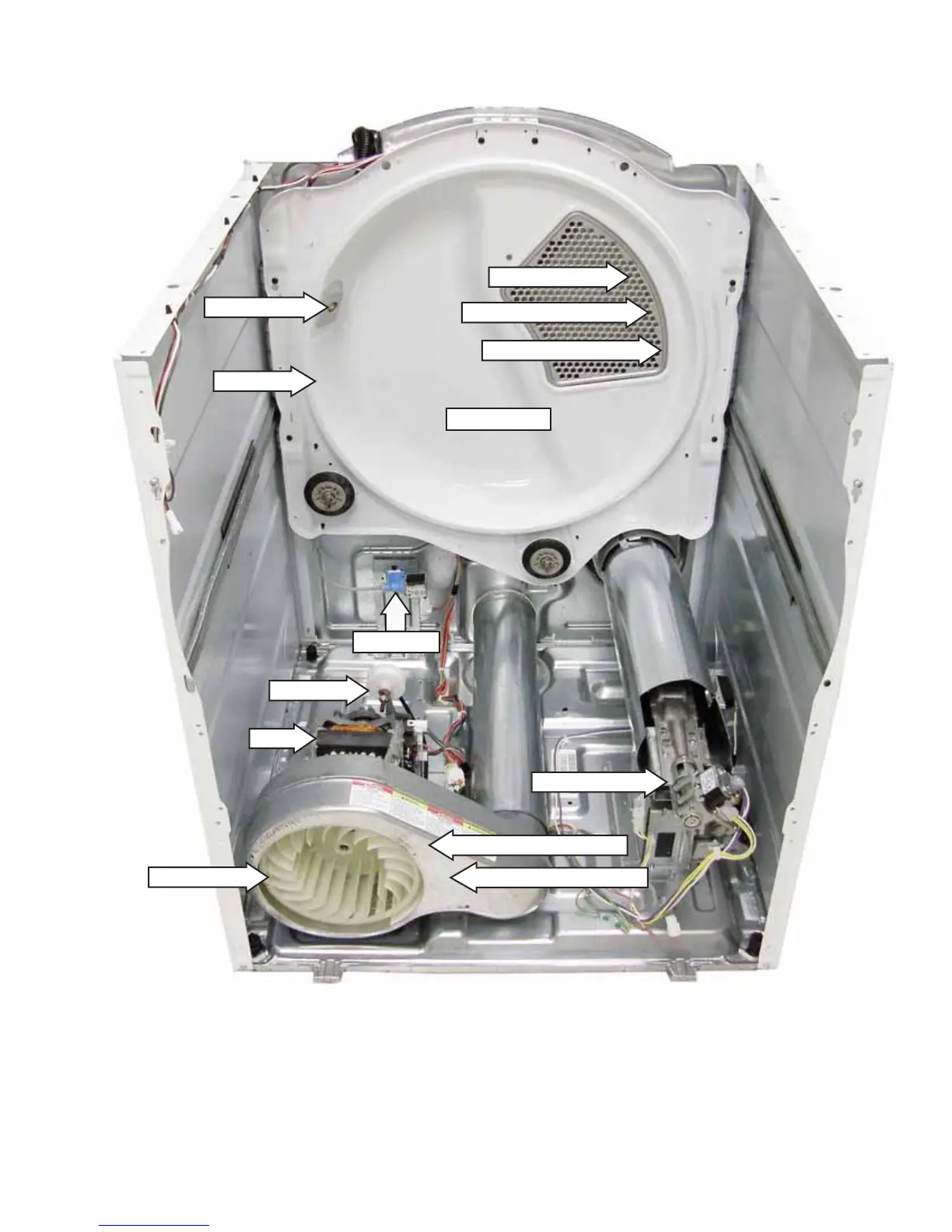

GE GHDS830EDWS - Component Location - Gas Model; Gas Dryer Component Diagram

– 15 –
Gas Model
Water Valve
Outlet Control Thermostat*
Outlet Control Thermistor*
Motor
Misting Nozzle
* Located on back of blower housing
** Located behind rear bulkhead
Blower Wheel
Inlet Thermistor**
Inlet Safety Thermostat**
High Limit Thermostat**
Drum Back
Rear Bulkhead
Idler Pulley
Burner Assembly
