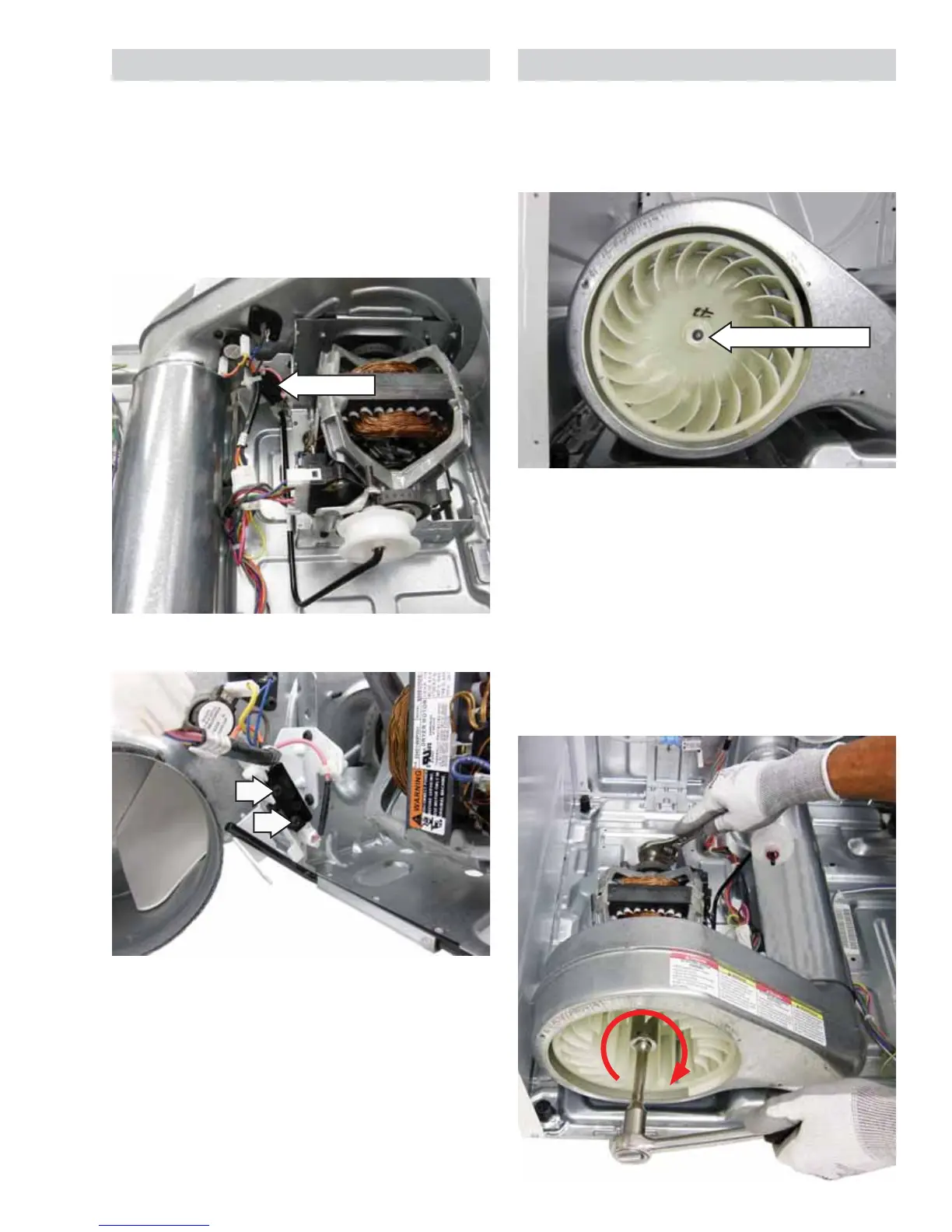

Belt Switch
The belt switch is located to the right of the drum
motor and is attached to the switch bracket with 2
Phillips-head screws. The switch is activated by the
movement of the idler arm. If the drive belt breaks
or comes off of the idler pulley, the belt switch
opens power to the drum motor, interrupting dryer
operation. The drum must be removed to access the
belt switch and wiring. (See Drive Belt and Drum.)
(Shown with exhaust tube removed for clarity.)
Belt Switch
Blower Wheel
The blower wheel is held to the motor shaft with
a 15/16-in. (24-mm) molded nut. To remove the
blower wheel, it is not necessary to remove the
motor from the dryer.
15/16-in. Molded Nut
To remove the blower wheel:
Note: Non-long vent model is shown below. The
procedure for the long vent model is similar.
1. Remove the drum. (See
Drive Belt and Drum.)
2. On non-long vent models, unlock the idler arm
from the idler arm bracket.
3. Hold the motor shaft from turning and use a
15/16-in. (24-mm) socket to rotate the blower
wheel clockwise from the motor shaft.
