GE GHDS830EDWS - Component Location - Electric Model; Electric Dryer Component Diagram

– 14 –
Electric Model
Component Locator Views
(Continued Next Page)

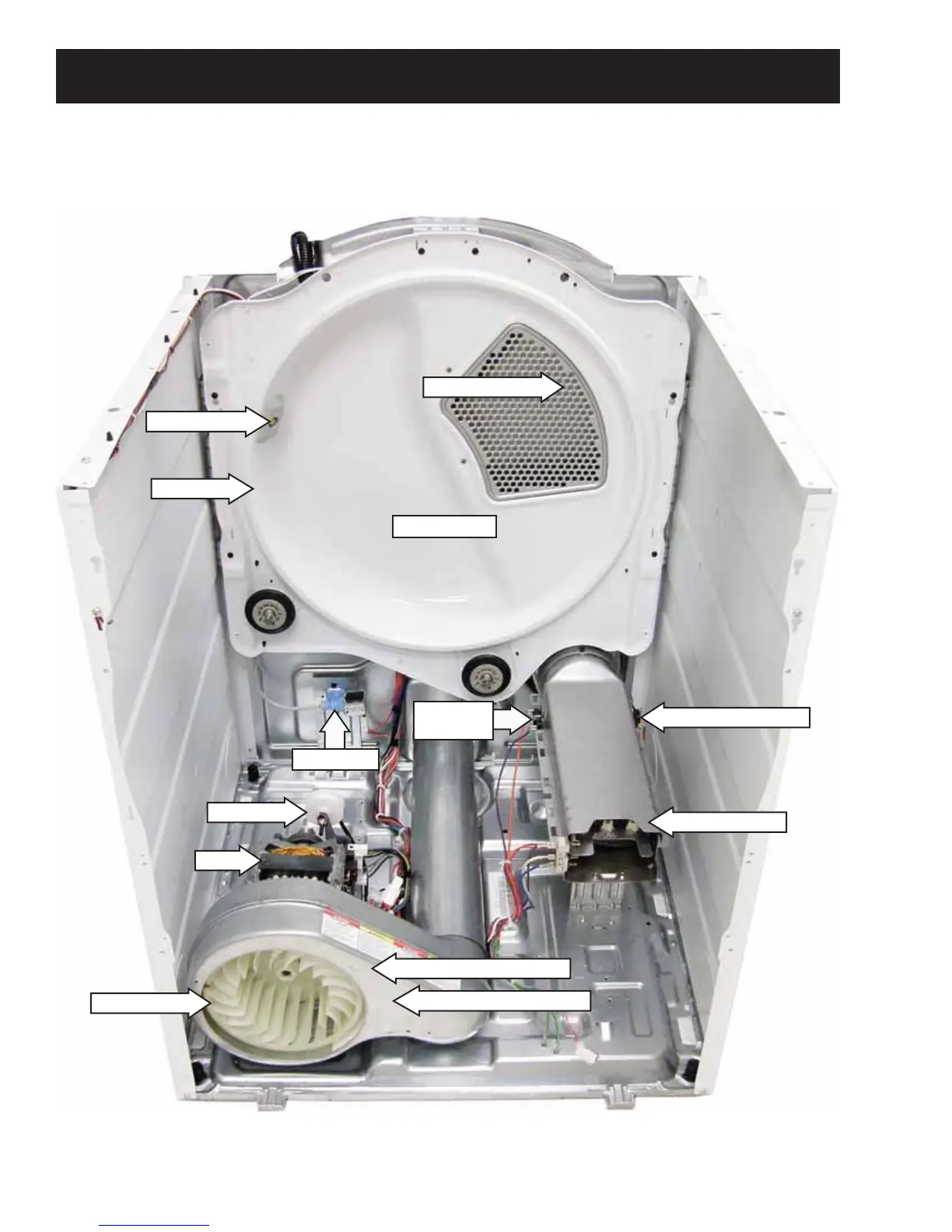

Heater Assembly
High Limit Thermostat
Blower Wheel
Motor
Idler Pulley
Outlet Control Thermostat*
Outlet Control Thermistor*
Water Valve
Inlet Safety
Thermostat
Inlet Thermistor**
* Located on back of blower housing
** Located behind rear bulkhead
Drum Back
Rear Bulkhead
Misting Nozzle
