– 25 –

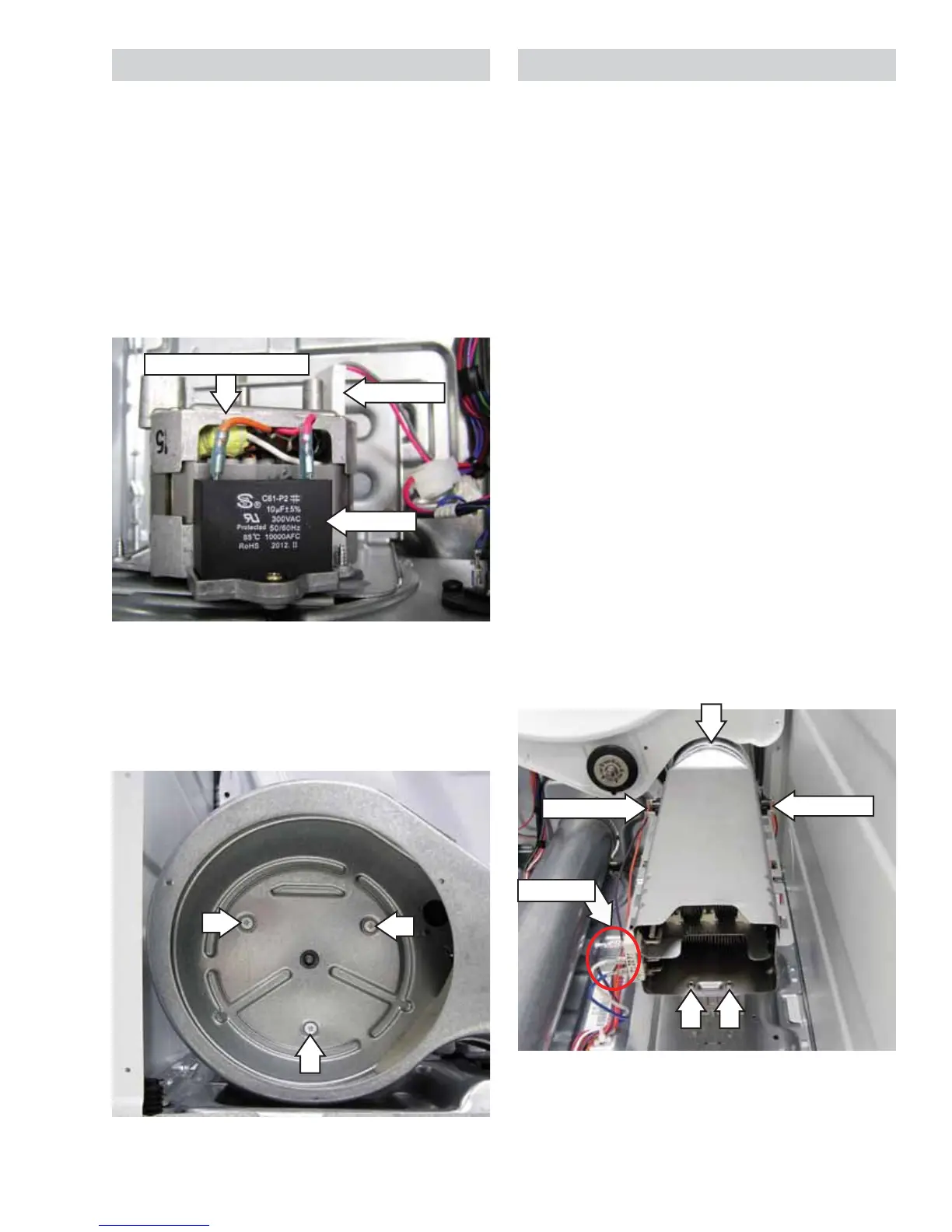

Long Vent Motor
The long vent motor operates on 120-VAC and
rotates at 300 RPM. The motor has an approximate
resistance value of 15 Ω. A 10 ufd capacitor is
attached to the motor. The motor is attached to
the back of the blower housing with 3 Phillips-head
screws.
To remove the long vent blower motor:
1. Remove the blower wheel. (See
Blower Wheel.)
2. Disconnect the motor wire harness.
3. Remove the 3 Phillips-head screws that attach
the motor to the blower housing.
4. Pull the motor out from the back of the blower
housing.
Disconnect
Capacitor
Long Vent Blower Motor
Heater Assembly
WARNING: Sharp edges may be exposed when
servicing the dryer. Use caution to avoid injury.
Wear Kevlar® gloves or equivalent protection.
The heater assembly is located below the drum
on the right side of the chassis. It consists of 2
open-wire elements, each fastened inside a single
housing. The elements are wired in parallel with
each other and controlled by a relays on the control
board.
When energized, each element draws
approximately 12.5 amps at 240 VAC. Each element
has a resistance value of approximately 20.6
When both are energized, the elements draw
approximately 25 amps at 240 VAC. The 2 inner
elements have a combined resistance value of
approximately 41.2
To remove the heater assembly:
1. Remove the drum. (See
Drive Belt and Drum.)
2. Note the wire locations, then disconnect all
wiring from the heater assembly.
3. Remove the Phillips-head screw from the top on
the heater assembly.
4. Remove the two 1/4-in. hex-head screws that
attach the heater assembly to the chassis.
Disconnect
Disconnect
Disconnect
To Next Page
