– 28 –
Caution: The ignitor is very fragile. To prevent
breaking the ignitor, care must be taken when
installing the burner assembly.
Ignitor
WARNING: Sharp edges may be exposed when
servicing the dryer. Use caution to avoid injury.
Wear Kevlar® gloves or equivalent protection.

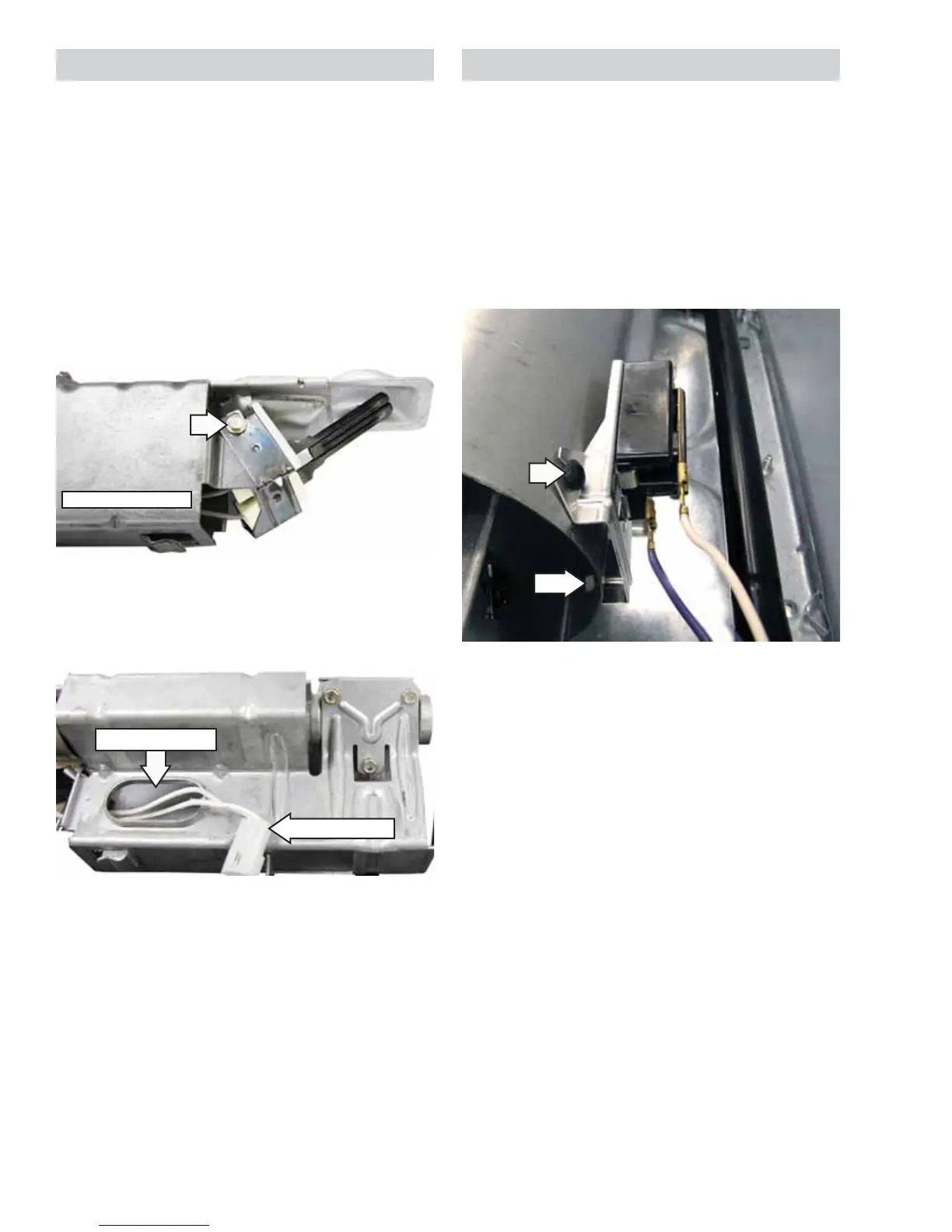

The ignitor is located at the end of the burner
assembly in the combustion chamber opening and
has a maximum rating of 4 amps. The ignitor has an
approximate resistance value of 40 to 200 Ω.
The ignitor is attached to the gas valve bracket
with a Phillips-head screw. To access the ignitor, it is
necessary to remove the burner assembly. (See Gas
Valve
and follow steps 1 through 7.)
Gas Valve Bracket
Note: When installing the ignitor, make sure the
ignitor wiring harness is routed through the opening
in the burner bracket.
Harness Opening
Ignitor Harness
Flame Detector
The fl ame detector is attached to the right side of
the combustion chamber.
To remove the fl ame detector:
1. Remove the front bulkhead. (See Front Bulkhead.)
2. Disconnect the 2 wires from the fl ame detector.
3. Remove the fl ame detector from the tab at the
bottom.
Note: Upon reassembly, ensure the tab at the
bottom of the fl ame detector is inserted into the slot
located on the combustion chamber.
Tab
