– 27 –

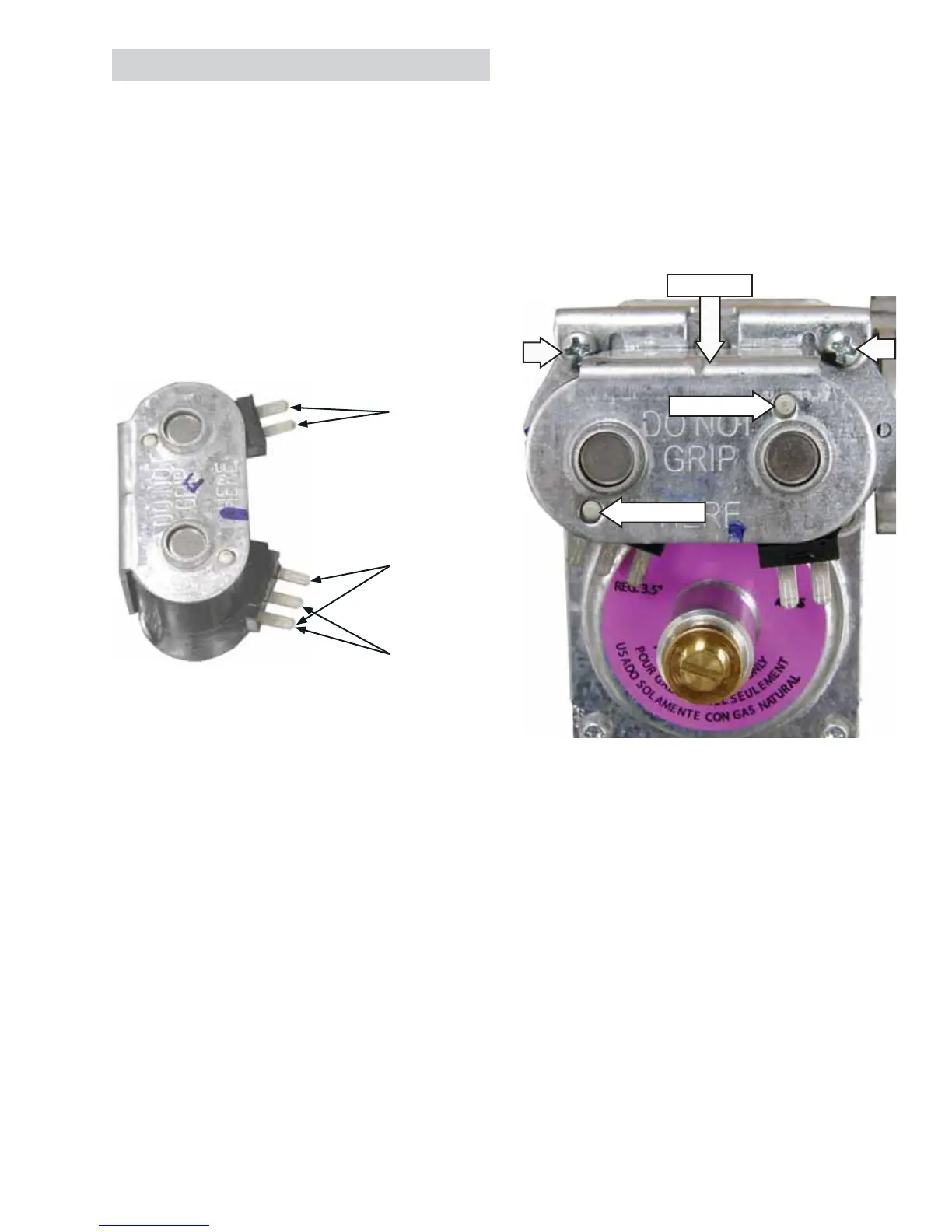

Main Coil
Booster Coil
Safety Coil
Gas Valve Coils
The burner assembly gas valve utilizes 2 coils. A
double coil (safety and booster coils combined) and
a single main coil are located on top of the gas valve
in front of the combustion chamber opening. The
coils can be replaced separately.
Gas valve coil assembly resistance values:
• Safety coil terminals - 1400
• Booster coil terminals - 580
• Main coil terminals - 1300
To remove the double and main coils:
1. Remove the burner assembly from the dryer.
(See Gas Valve and follow steps 1 through 7.)
2. Note the position of the locator pins inserted in
the coil bracket.
3. Remove the 2 Phillips-head screws that attach
the coil bracket to the valve body.
4. Lift the coil bracket vertically.
5. Lift coils vertically from valve assembly.
Note: Upon assembly, ensure the locator pins are
inserted into the holes provided in the coil bracket.
Locator Pin
Locator Pin
Coil Bracket
