Wire Retainer
Gas Valve

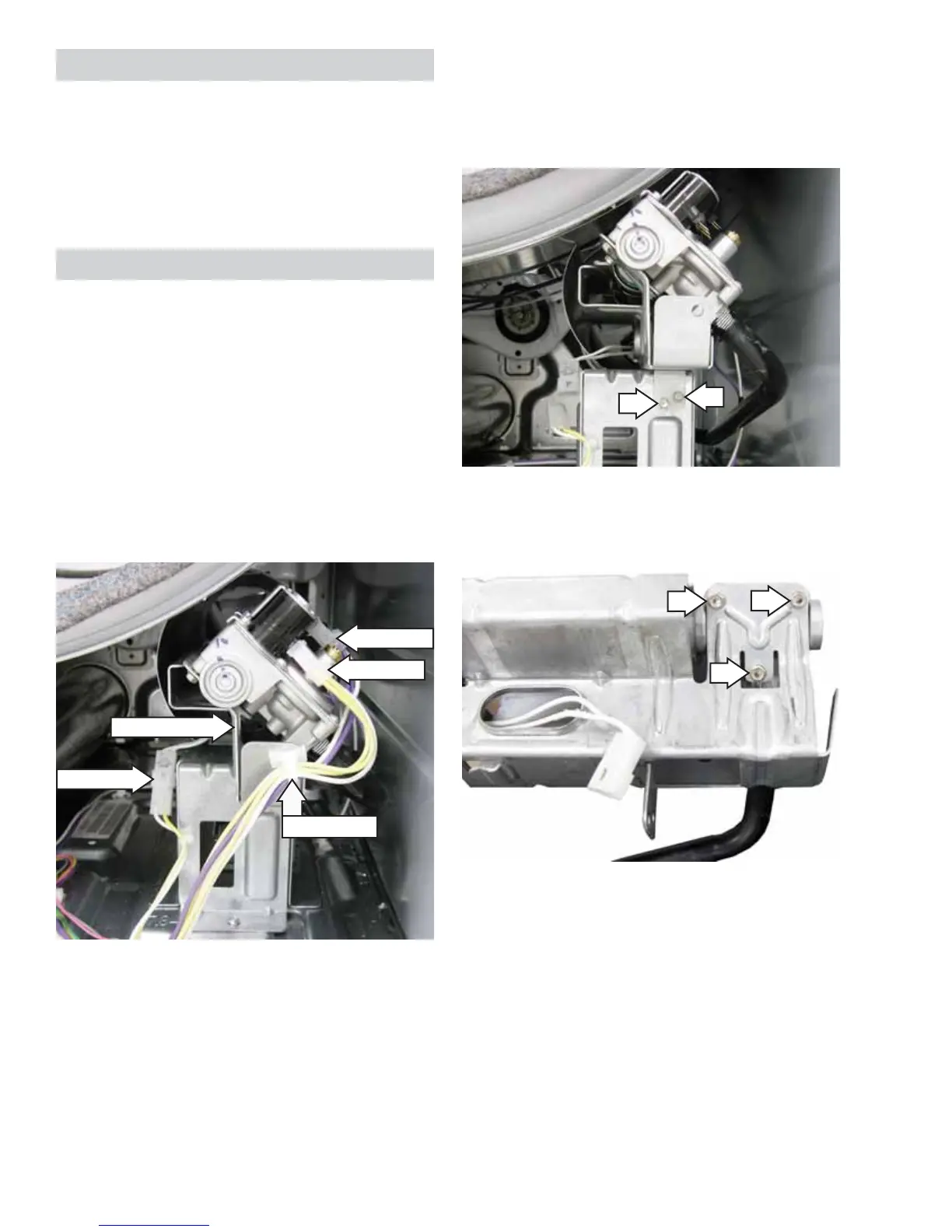

The gas valve is attached to the burner bracket.
To remove the gas valve:
1. Shut off the gas supply to the dryer.
2. Remove the front bulkhead. (See
Front Bulkhead.)
3. Disconnect the ignitor wire harness.
4. Disconnect the wire harness from both coils.
5. Remove the wire retainer from the front of the
burner bracket.
6. Remove the two 1/4-in. hex-head screws from
the front of the burner bracket.
7. Pull the burner and the connected gas inlet pipe
as an assembly out from the dryer.
Burner Assembly and Gas Conversion
The burner assembly consists of the gas valve with
attached gas inlet pipe, gas valve coils, and burner.
To convert the dryer from natural gas to LP gas,
refer to conversion kit Part #WE25M87. To convert
the dryer from LP gas to natural gas to, refer to
conversion kit Part #WE25M88.
8. Remove the three 1/4-in. hex head screws that
attach the gas valve to the burner bracket.
Burner Bracket
To Next Page
