GE H
EALTHCARE
D
IRECTION
5394227, 12
LOGIQ
S8/LOGIQ
E
8
S
ERVICE
M
ANUAL
5 - 22

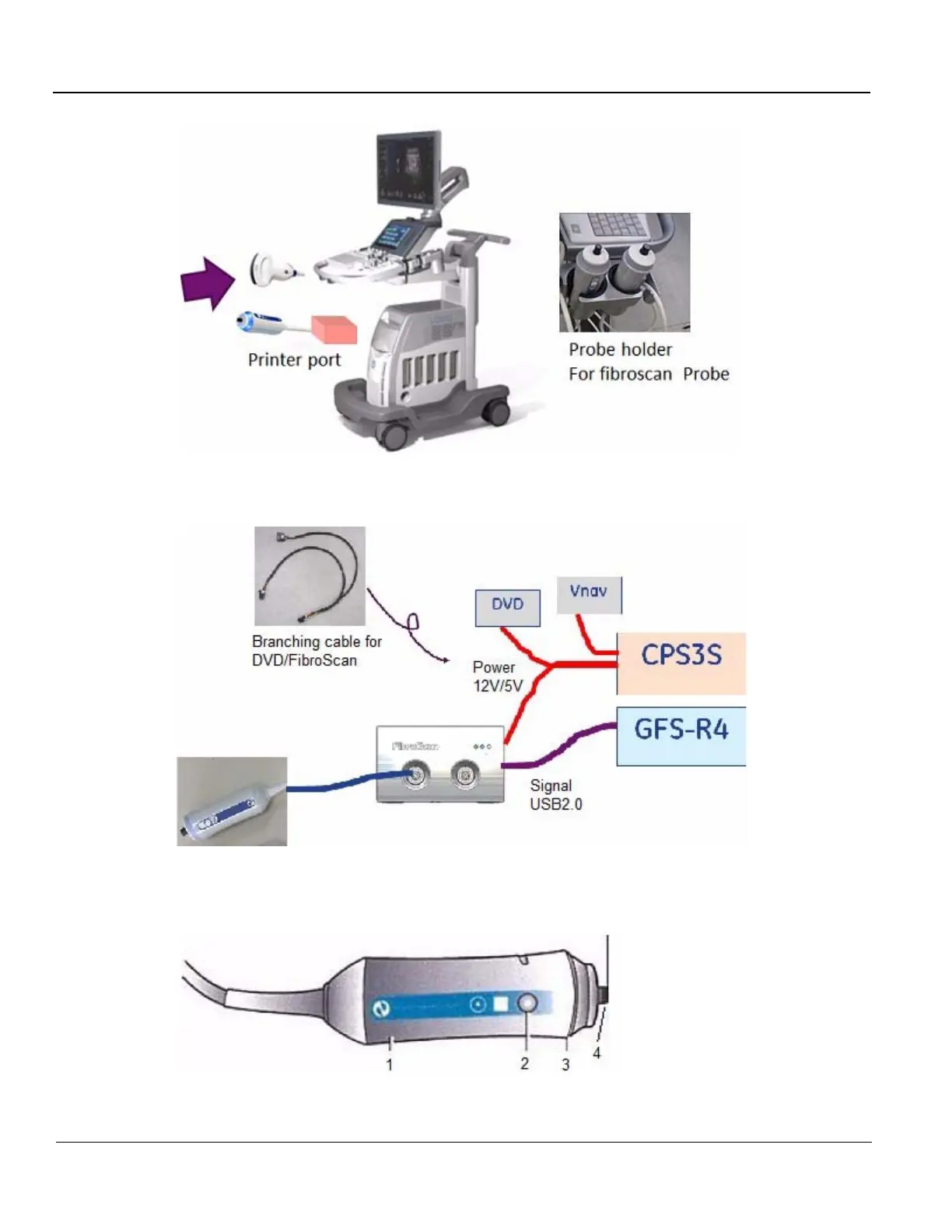

Section 5-7 - Hardware Options.
5-7-1-3
FibroScan mounting pos
ition
Figure 5-
12 FibroScan mo
unting position
5-7-1-4
FibroScan Signa
l Connection
Figure 5-13 Signal Connection
5-7-1-5
FibroScan Prob
e
Figure 5-14 FibroScan
Probe
1.Electrodynamic tran
sducer
2.Meas
urement button
3.Indicator light (L
ED)
4.Ultrasonic transducer
247
249
