IRECTION 5394227, 12 LOGIQ S8/LOGIQ E8 SERVICE MANUAL
3 - 40 Section 3-9 - Optional Peripherals/Peripheral Connection
3-9-1-2 WIth Off-board UVC

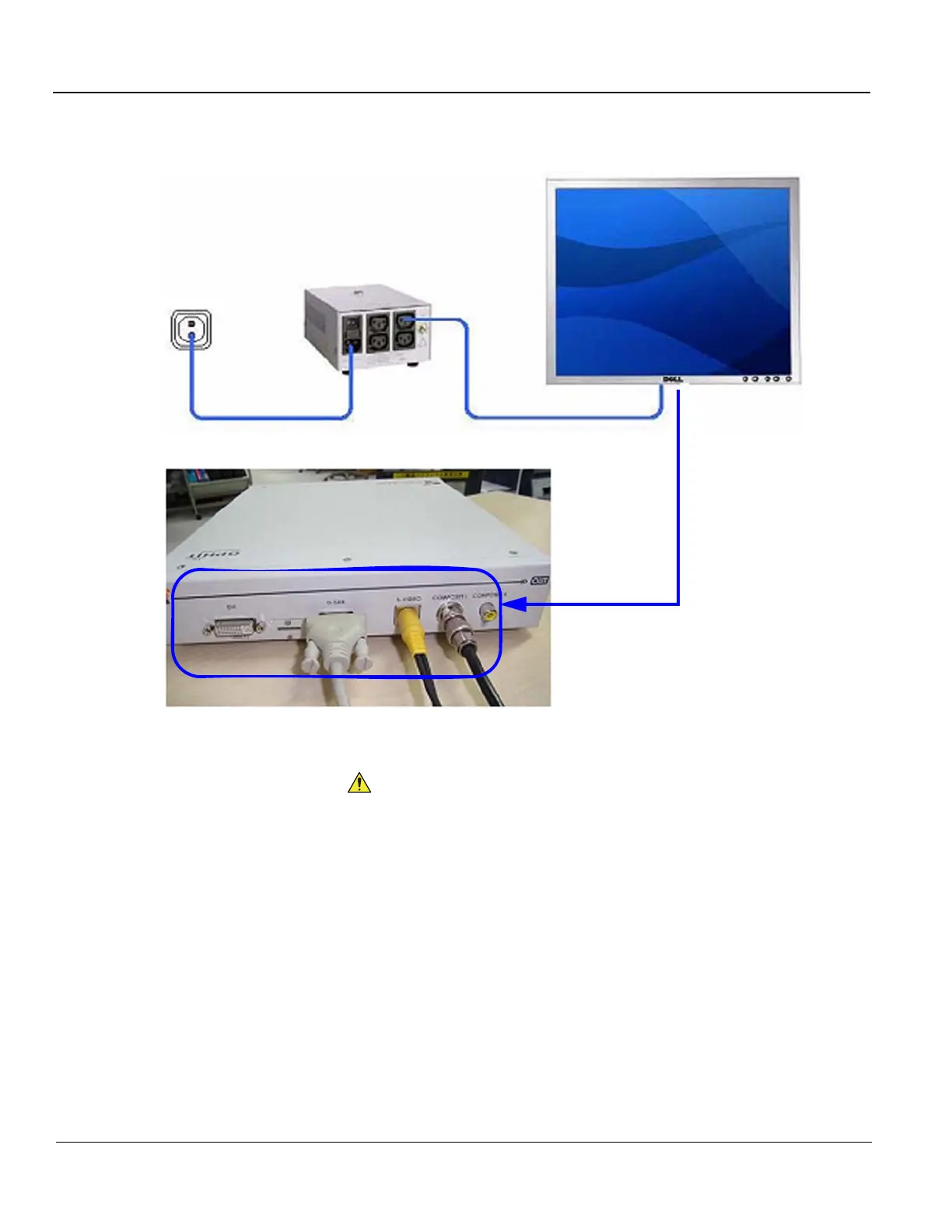

Figure 3-27 Connection Scheme - Secondary LCD Monitor with Off-board UVC
Secondary Monitor
A ppropriate
Transformer
A Secondary “Patient” Monitor MUST NEVER be connected to the LOGIQ S8’s mains supply directly!
CAUTION
!! CAUTION:
Output connection
Following Output formats are available:
- DVI
- D-SUB (VGA)
- S-VIDEO
- COMPOSITE (BNC)
- COMPOSITE (RCA)
If the secondary patient monitor to be located inside of
isolation transformer.
the patient environment, to be connected to the appropriate

GE LOGIQ S8 Specifications

General

Type	Ultrasound System
Display Type	LCD
3D/4D Imaging	Yes
Connectivity	DICOM, USB, Ethernet
Display Size	19 inches
Transducers	Linear, Convex, Phased Array
Doppler Modes	Color Doppler, Power Doppler, Spectral Doppler
Operating Modes	B-Mode, M-Mode
Applications	Abdominal, Cardiac, Obstetrics, Gynecology, Vascular, Musculoskeletal
Portability	Cart-based
Transducer Ports	4
