GE LOGIQ S8 User Manual

GE HEALTHCARE PROPRIETARY TO GE
D
IRECTION 5394227, 12 LOGIQ S8/LOGIQ E8 SERVICE MANUAL
Section 3-9 - Optional Peripherals/Peripheral Connection 3 - 47
3-9-4 ECG connector
Connect the ECG cable to the ECG connector on the monitor arm or on the side of the operator panel,
depending on the system version.

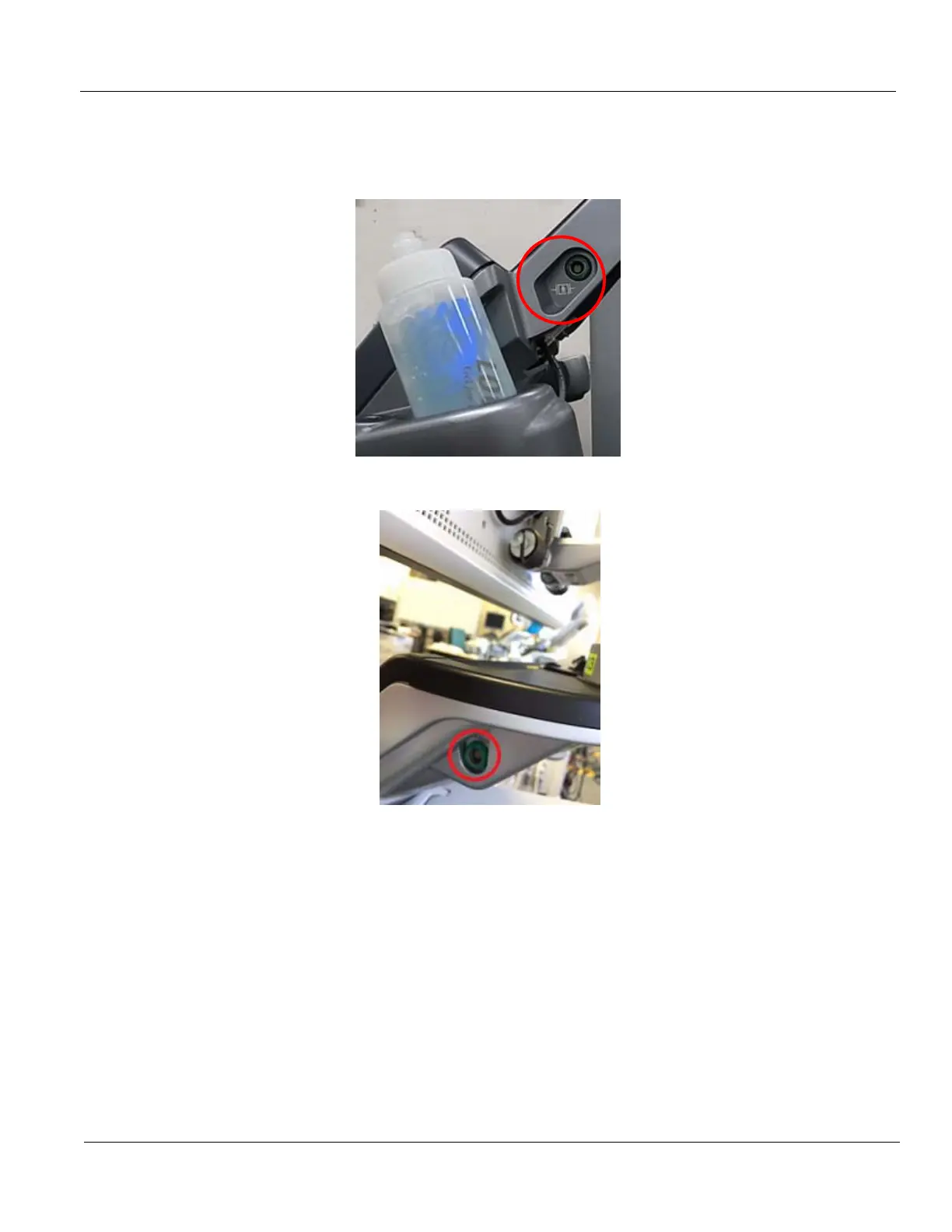

Figure 3-34 ECG Connector location (R1 to R3 system)
Figure 3-35 ECG Connector location (R4 system)
Figure 3-36

GE LOGIQ S8 Specifications

General

Type	Ultrasound System
Display Type	LCD
3D/4D Imaging	Yes
Connectivity	DICOM, USB, Ethernet
Display Size	19 inches
Transducers	Linear, Convex, Phased Array
Doppler Modes	Color Doppler, Power Doppler, Spectral Doppler
Operating Modes	B-Mode, M-Mode
Applications	Abdominal, Cardiac, Obstetrics, Gynecology, Vascular, Musculoskeletal
Portability	Cart-based
Transducer Ports	4
