3 - 42 Section 3-9 - Optional Peripherals/Peripheral Connection
3-9-2 Connecting the Off-Board/On-Board UVC
3-9-2-1 Connecting the Off-Board UVC
1.) Power OFF/Shutdown the system as described in Section 3-7 "Power On/Off" on page 3-17.
2.) Connect the UVC according to correct connection scheme.

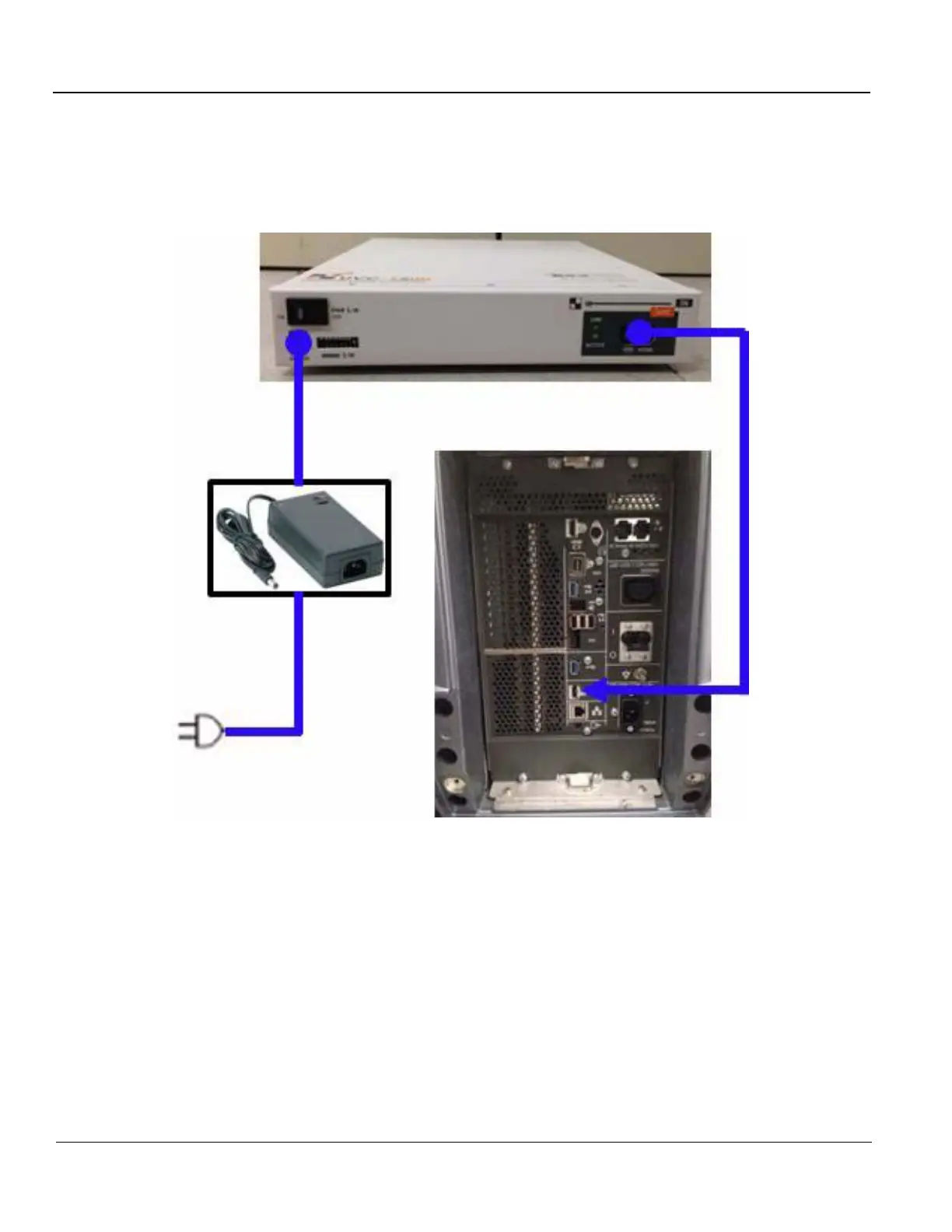

Figure 3-29 R2 Off-Board UVC Connection
