3-9-2-1 Connecting the Off-Board UVC (cont’d)

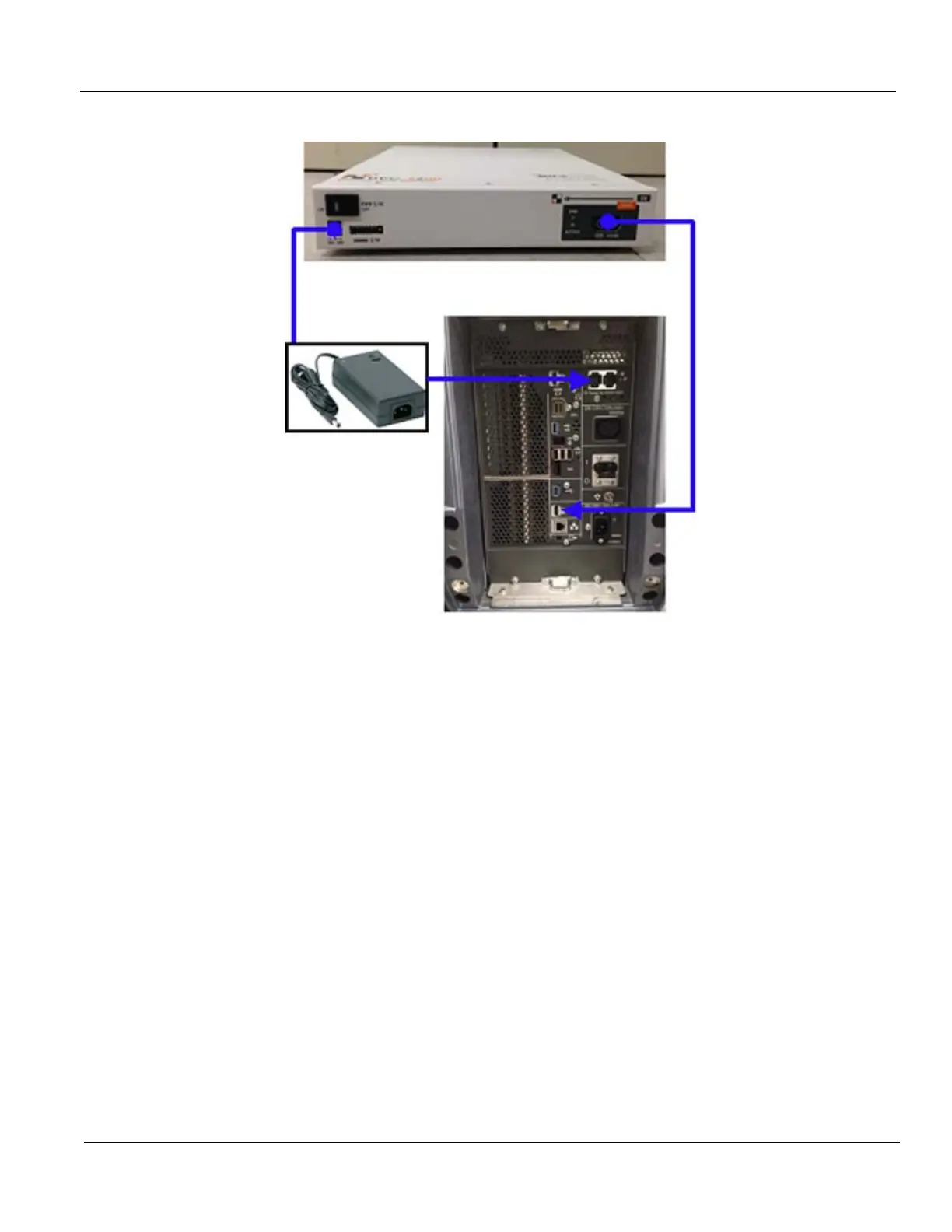

Figure 3-30 Off-Board UVC Connection for R3 and later
3.) When all the cables are connected, press the Power ON switch on the UVC.
4.) Power ON/Boot up the system as described in Section 3-7 "Power On/Off" on page 3-17.
