GE HEALTHCARE PROPRIETARY TO GE
D
IRECTION 5394227, 12 LOGIQ S8/LOGIQ E8 SERVICE MANUAL
Section 3-7 - Power On/Off 3 - 21
3-7-4 Logoff/Shutdown/Exit
1.) When you lightly press the Power On/Off switch once. The System-Exit window is displayed.
2.) The SYSTEM - EXIT menu, used when power off the unit, gives you these choices:
• Logoff
Use this button to log off the current user. The system remains ON and ready for a new user to log
on. If the Logoff button is dimmed, it indicates that no user is logged on to the unit at the moment.
• Shutdown
Use this button to shut down the system. The entire system will shut down. The power button turns
on blue indicated Standby- mode (refer to Section Figure 3-11 "Power Button" on page 3-19).
For the system with R4.2.5x and later, press Power On/Off button three (3) times to shutdown.
NOTE: If the system has Small/Extended battery (Option), the system automatically starts battery-charging
when goes to Standby-mode.
•Cancel
Use this button to exit from the System-Exit menu and return to the previous operation.
• Exit (Only available when logged in as GE Service with Service Dongle)
Select this button when you want to exit to the Windows Desktop. Refer to Section Section 7-3 "Exit
to Windows Desktop" on page 7-5.
• Sleep (R1 to R4)
Select this button to go to SLEEP mode. Refer to Section 3-7-6 "Sleep Mode (R1 to R4)" on page
3-23.

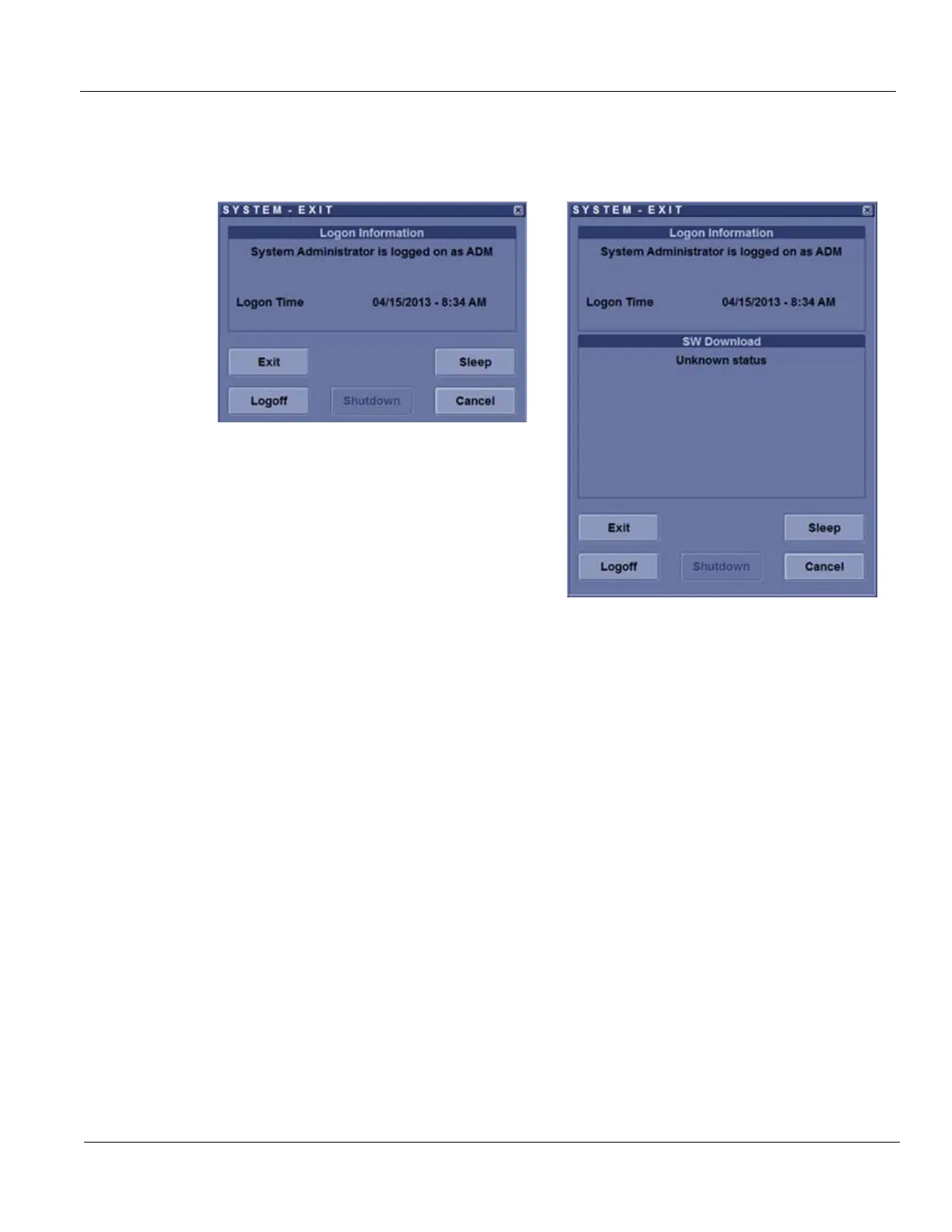

System Exit Window - R1 System Exit Window - R2 and later
To Next Page
