IRECTION 5394227, 12 LOGIQ S8/LOGIQ E8 SERVICE MANUAL
3 - 70 Section 3-11 - Connectivity Setup
3-11-8 Network icon
3-11-8-1 R3 and R4

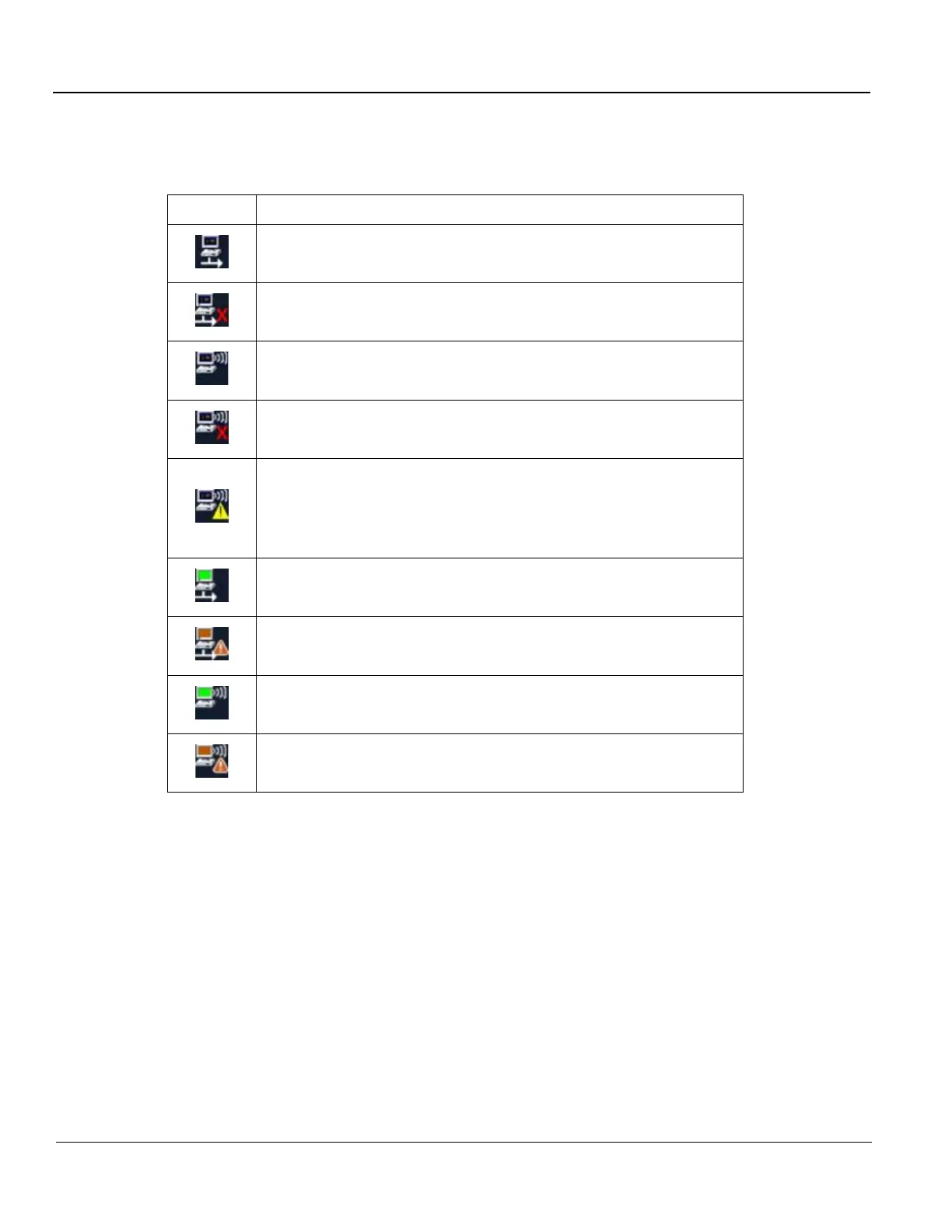

Table 3-7 Network icon description
Icon Description
Wired network connected
Wired network disconnected
Wireless network connected
Wireless network disconnected
Wireless network limited connected
• No IP address obtained
• Empty IP means “Acquiring Network Address”
• private IP means “Limited or no Connectivity”
Spooler is active with wired network
Spooler is failed with wired network
Spooler is active with wireless network
Spooler is failed with wireless network

GE LOGIQ S8 Specifications

General

Type	Ultrasound System
Display Type	LCD
3D/4D Imaging	Yes
Connectivity	DICOM, USB, Ethernet
Display Size	19 inches
Transducers	Linear, Convex, Phased Array
Doppler Modes	Color Doppler, Power Doppler, Spectral Doppler
Operating Modes	B-Mode, M-Mode
Applications	Abdominal, Cardiac, Obstetrics, Gynecology, Vascular, Musculoskeletal
Portability	Cart-based
Transducer Ports	4
