GE HEALTHCARE PROPRIETARY TO GE
D
IRECTION 5394227, 12 LOGIQ S8/LOGIQ E8 SERVICE MANUAL
3 - 84 Section 3-13 - Setting up InSite Connection (R1 to R4)
3-13-6 Configuring Agent Configuration (cont’d)

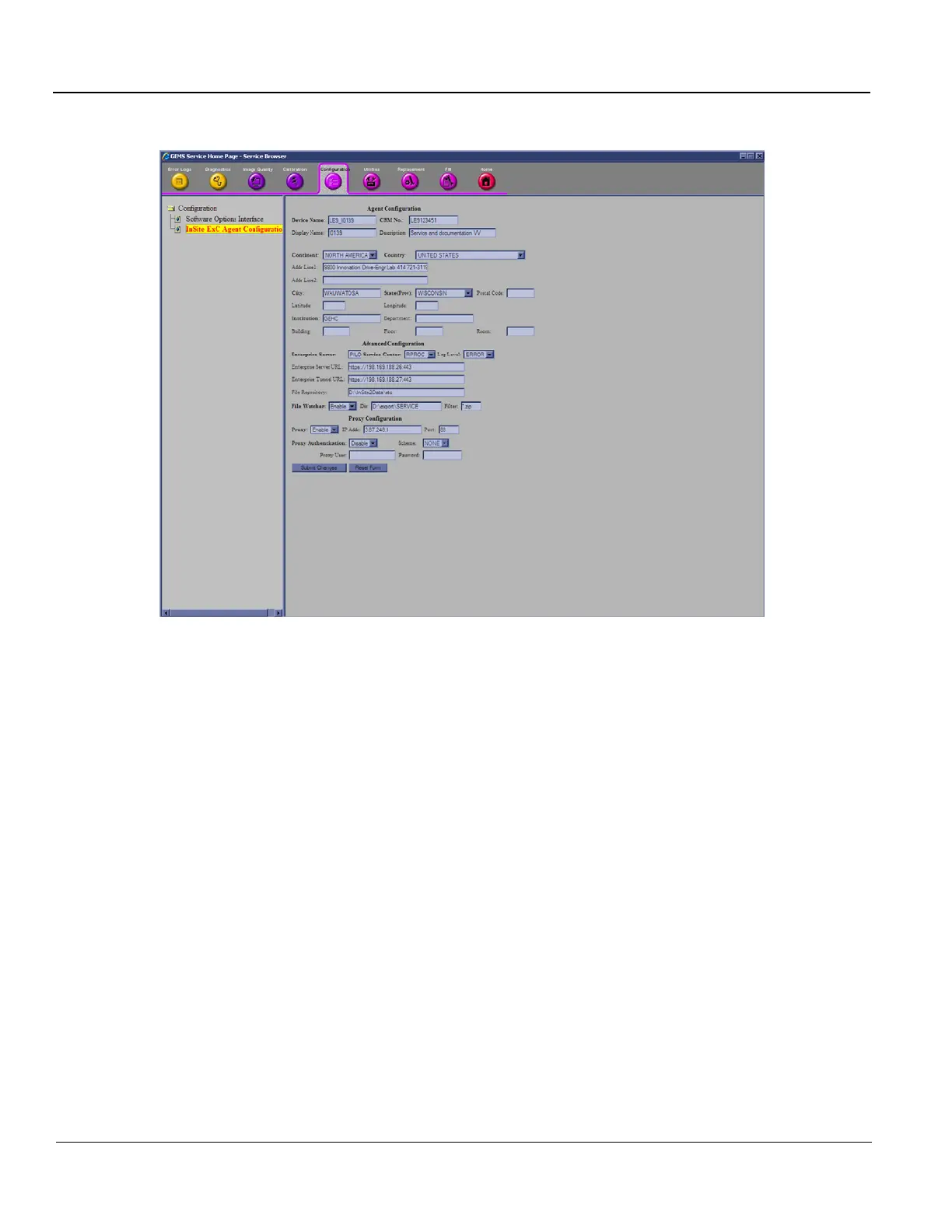

Figure 3-52 Configuration Home Page
4.) In the Display Name field, enter a descriptive name that is easy to identify with this device. For
example, “Unit 1”.
5.) In the Description field, create a unique description of the system. For example, “St. Mary’s
Hospital”.

GE LOGIQ S8 Specifications

General

Type	Ultrasound System
Display Type	LCD
3D/4D Imaging	Yes
Connectivity	DICOM, USB, Ethernet
Display Size	19 inches
Transducers	Linear, Convex, Phased Array
Doppler Modes	Color Doppler, Power Doppler, Spectral Doppler
Operating Modes	B-Mode, M-Mode
Applications	Abdominal, Cardiac, Obstetrics, Gynecology, Vascular, Musculoskeletal
Portability	Cart-based
Transducer Ports	4
