4 - 44 Section 4-4 - Functional Checks

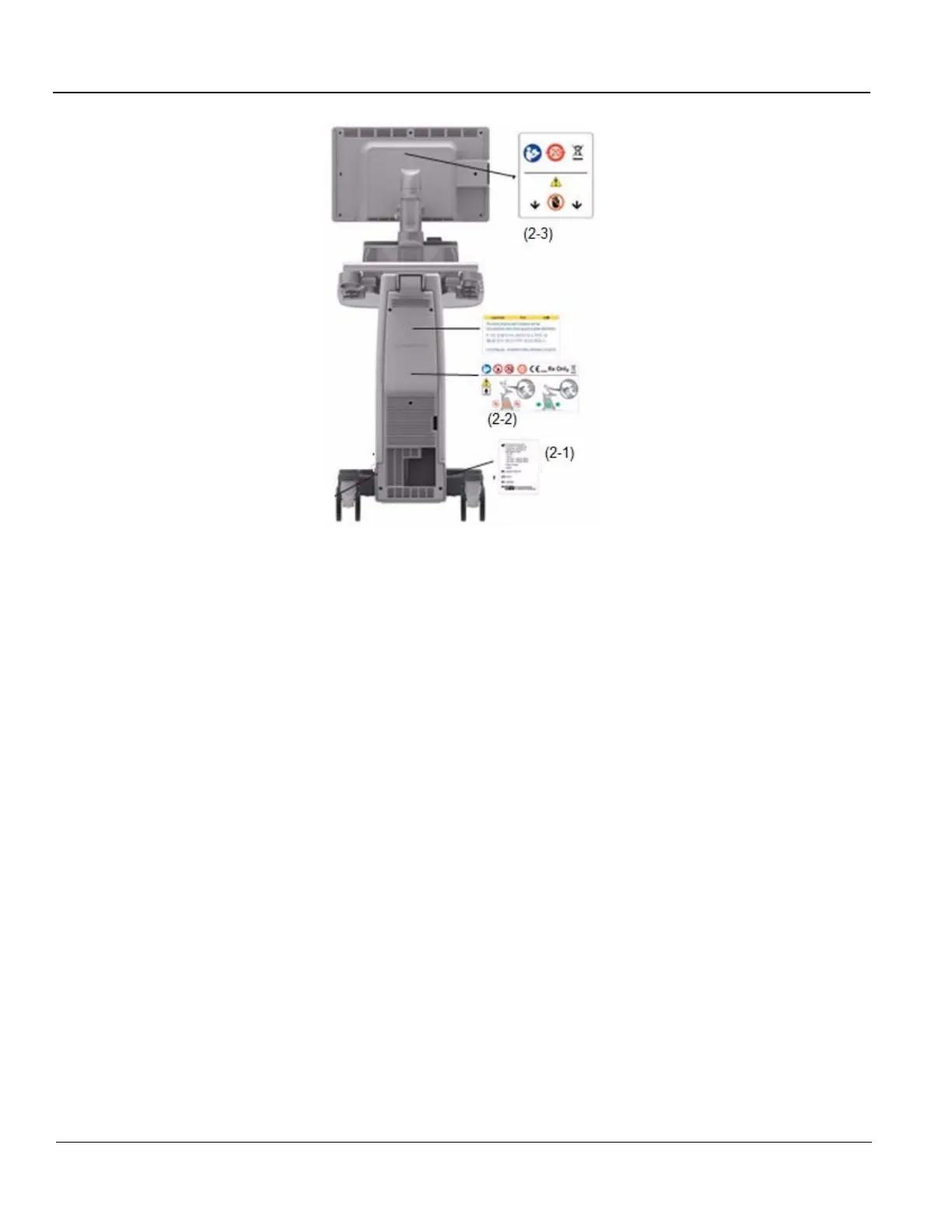

Figure 4-33 Label location (R4 system)
1.) Check presence of Caution Label on the rear panel of the monitor (2-3).
2.) Check presence of Multi Caution Label (2-2).
3.) Check presence of Rating Plate (2-1).
NOTE: Rating Plate design slightly differ depending on Console destination. At minimum simply check Console
number, manufacturing date and serial Number.
NOTE: Some countries may not have “gender determination” label.
