DIRECTION 5394227, 12 LOGIQ S8/LOGIQ E8 SERVICE MANUAL
Section 5-2 - General Information 5 - 3
5-2-1 System Exterior
5-2-1-1 R1, R2 and R3

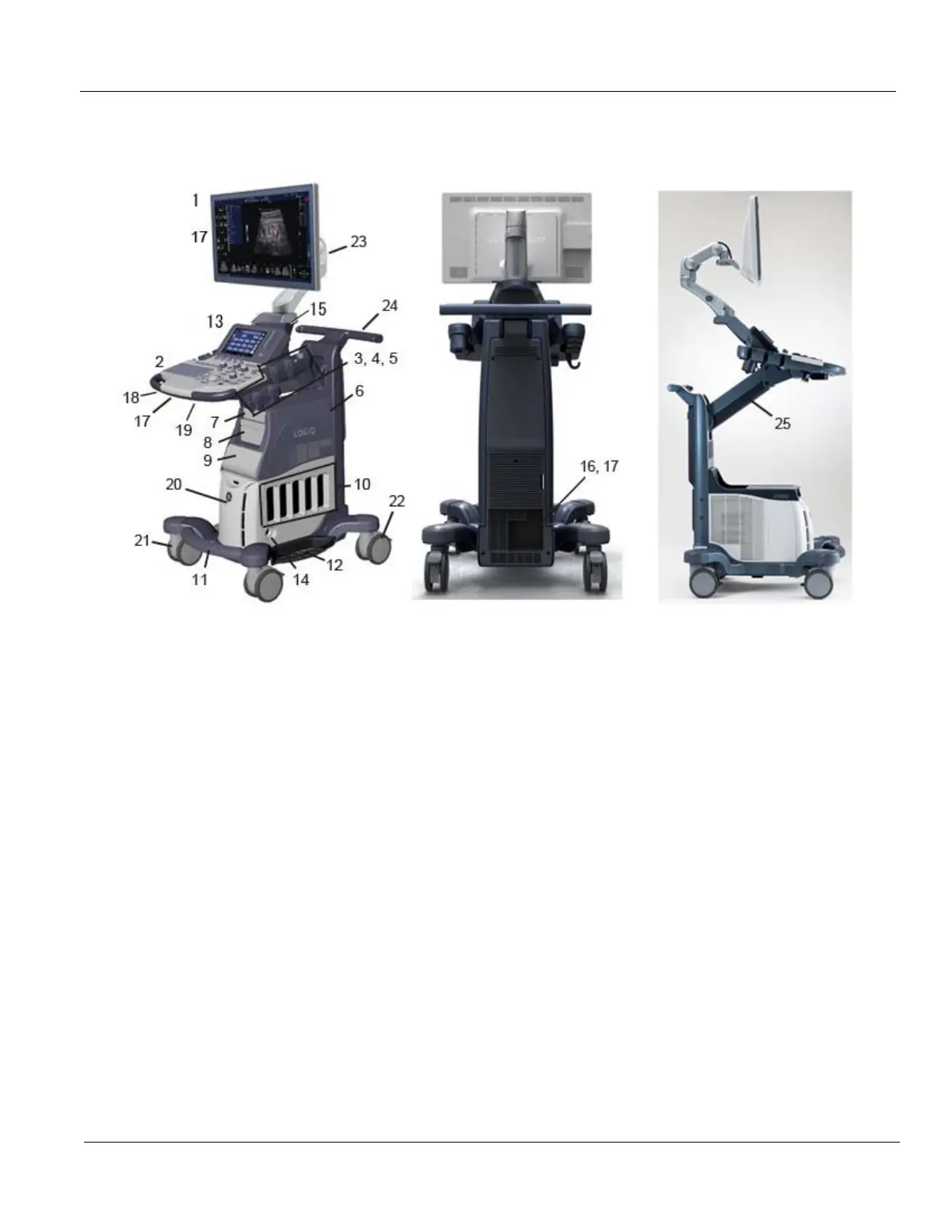

Figure 5-1 System Exterior (High cabinet type example)
1.) Monitor
2.) Control panel
3.) Probe holder
4.) Optional probe holder
5.) Gel warmer
6.) Audio speaker
7.) DVD Drive
8.) B/W Printer or V-Nav
9.) Color printer or Drawer
10.) Probe port - 4 active probe port and 1
parking port (LE8 has the cover)
11.) Foot rest
12.) Side tray (option)
13.) Touch panel
14.) CW pencil probe port
15.) ECG Connector
16.) External I/O panel
17.) USB ports (left side of 23” monitor, right
side of OLED monitor)
18.) Control panel swivel lever
19.) Control panel up/down lever
20.) Cooling fan and dust filter (inside front
cover)
21.) Caster
22.) Swivel lock caster
23.) Articulating monitor arm with lock
24.) Handle
25.) Operator panel elevation arm

GE LOGIQ S8 Specifications

General

Type	Ultrasound System
Display Type	LCD
3D/4D Imaging	Yes
Connectivity	DICOM, USB, Ethernet
Display Size	19 inches
Transducers	Linear, Convex, Phased Array
Doppler Modes	Color Doppler, Power Doppler, Spectral Doppler
Operating Modes	B-Mode, M-Mode
Applications	Abdominal, Cardiac, Obstetrics, Gynecology, Vascular, Musculoskeletal
Portability	Cart-based
Transducer Ports	4
