Section 5-2 - General Information 5 - 5
5-2-1-3 Operator Panel

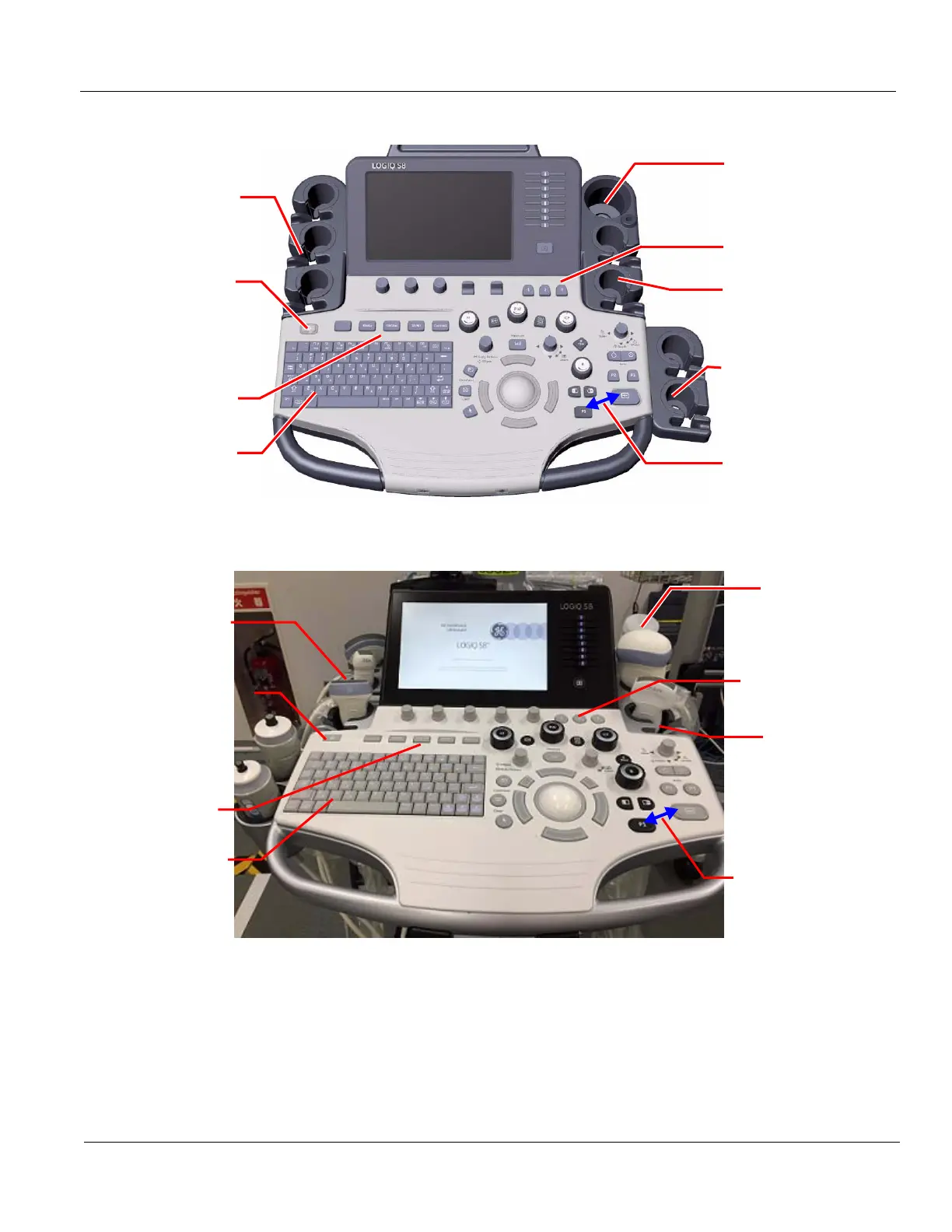

Figure 5-3 R1 - R3 Operator Panel
Figure 5-4 R4 and later Operator Panel
Integrated A/N
Keyboard
Interchangeable
FREEZE and P1 Key
User Define Keys
BT Key
Power Button
Probe Holder
Gel Warmer
Probe Holder
Option Probe Holder
Integrated A/N
Keyboard
User Define Keys
BT Key
Power Button
Probe Holder
Gel Warmer
Probe Holder
Option Probe
Holder
Interchangeable
FREEZE and P1 Key
