GE HEALTHCARE
DIRECTION 5394227, 12 LOGIQ S8/LOGIQ E8 SERVICE MANUAL
5 - 10 Section 5-2 - General Information

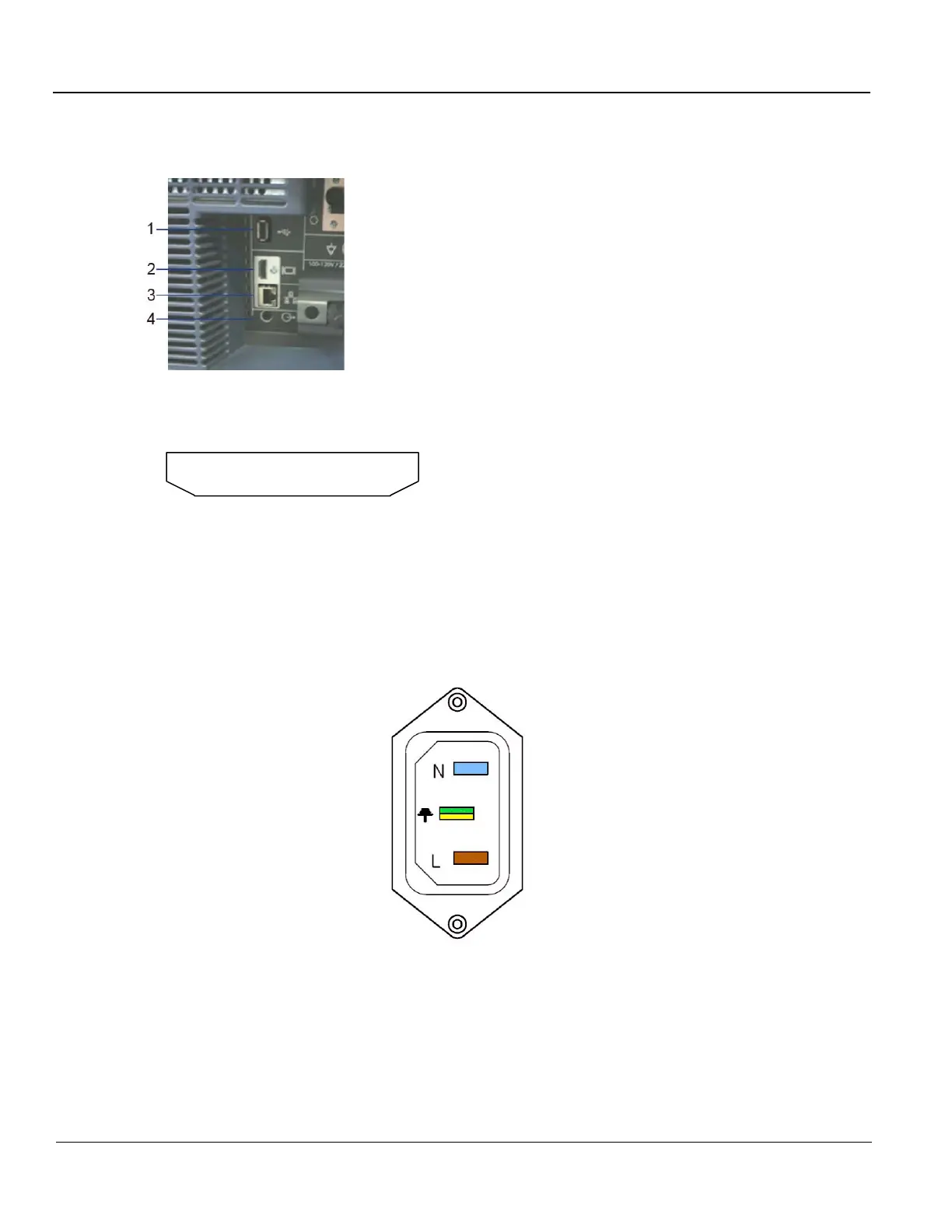

5-2-4 Rear panel
5-2-4-1 HDMI
NOTE: External display I/O is DVI-D. However, connector shape is HDMI connector.
5-2-4-2 Ethernet
1000 Base-T, 100 Base-T, 10 Base-T
5-2-4-3 Audio MiniJack
Normal Audio L/R GND pin assign Line out
5-2-4-4 AC Inlet
Figure 5-9 AC Inlet
1.) USB Port: USB2.0 Full Speed (R3 and later:
No isolated)
2.) HDMI connector: HDMI connector for an
external monitor
3.) Ethernet: LAN for InSite Connection (RJ45)
4.) Audio: Audio line out (3.5mm pin jack)
5.) Circuit breaker: 10A
6.) AC Inlet: 100-120V/220-240V
19 1
18 2
100-120V/220-240V AC
To Next Page
