5 - 28 Section 5-11 - LOGIQ E8
Section 5-11
LOGIQ E8
LOGIQ E8 based on LOGIQ S8. So LOGIQ E8 uses same electrical parts and application software.
LOGIQ E8 has a similar console to LOGIQ S8. But these consoles are not able to change to each other.
Because the product name is deferent in regulatory.
Different point are
1.) LOGIQ E8 has only one cabinet design
2.) LOGIQ E8 Emblem is attached on existing LOGIQ S8 OPIO
3.) Universal Video Converter is the standard configuration for LOGIQ E8. This universal video
converter needs a fan assy. for cooling.
4.) LOGIQ E8 SW Option
LOGIQ E8 does use LOGIQ S8 application software. LOGIQ E8 SW is required to boot system as
LOGIQ E8.
When LOGIQ E8 Software Option Key is enabled, the system behavior changes as follow;
- “LOGIQ E8” is described in splash screen
- “LOGIQ E8” displays as Probe direction mark
- The Device type and Device Name prefix on InSite is different from LS8
- The backup/restore functions is incompatible with LOGIQ S8
- The Raw Data is incompatible with LOGIQ S8. LOGIQ S8 is not able to read LOGIQ E8 Raw
Data and vice versa

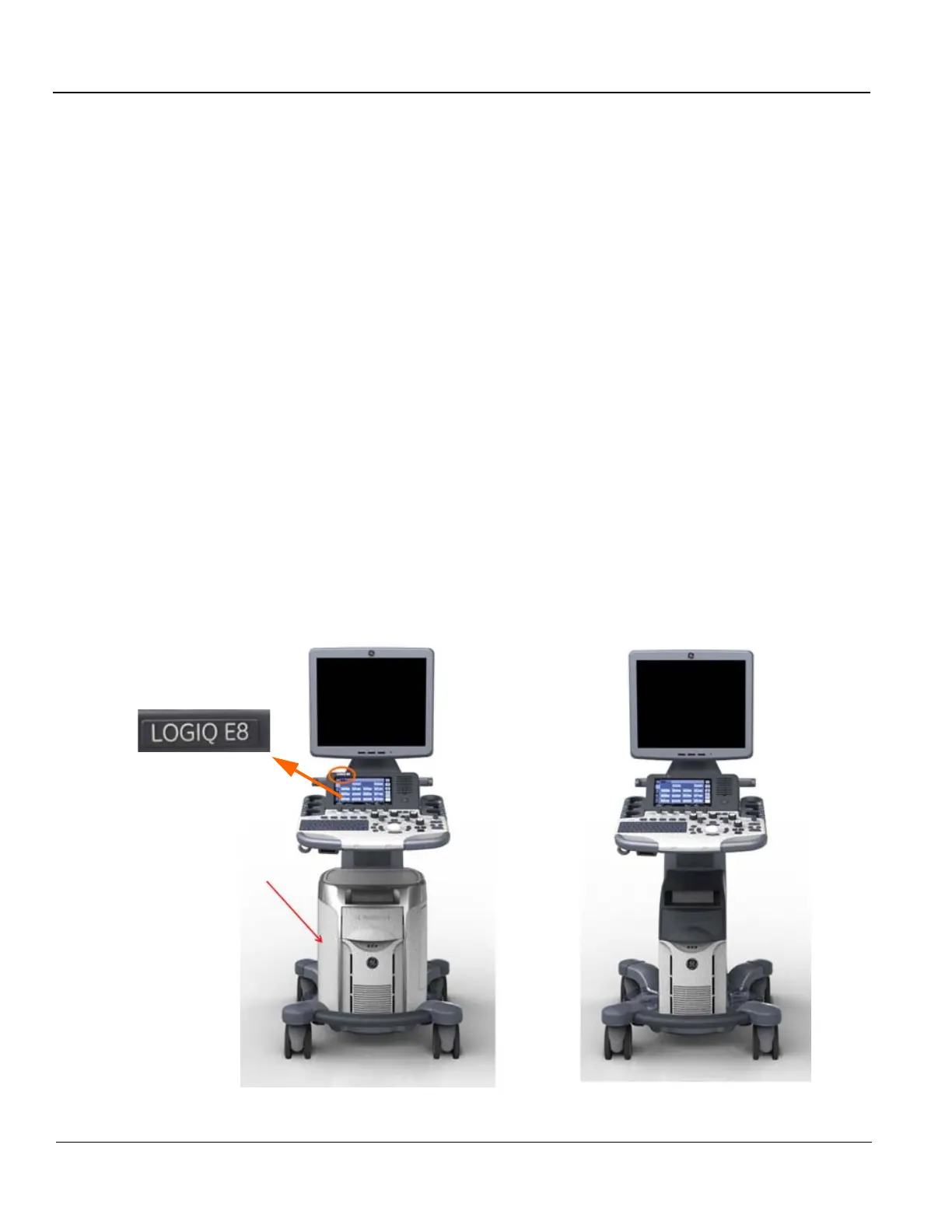

Figure 5-18 Difference in appearance between LOGIQ S8 and LOGIQ E8 (R2 - R3 system)
LOGIQ E8
LOGIQ S8
Emblem
Wide Cabinet
UVC
(Inside cabinet)
