GE HEALTHCARE PROPRIETARY TO GE
D
IRECTION 5394227, 12 LOGIQ S8/LOGIQ E8 SERVICE MANUAL
3 - 16 Section 3-6 - Completing the Set Up
3-6-4-4 Connecting the CW Pencil Probe (LOGIQ S8/LOGIQ S8 Vet)
Insert the probe connector into the pencil probe port all the way seated in. Carefully position the probe
cable so it is free to move and is not resting on the floor.
3-6-4-5 Connecting the TEE Probe
Type of this connector is “RS”, connect to the system by TEE probe adapter.
TEE RS-DLP probe adapter has 2 connection ports. One is “RS” type for TEE probe, the other is “DLP”
type for LOGIQ S8 system.

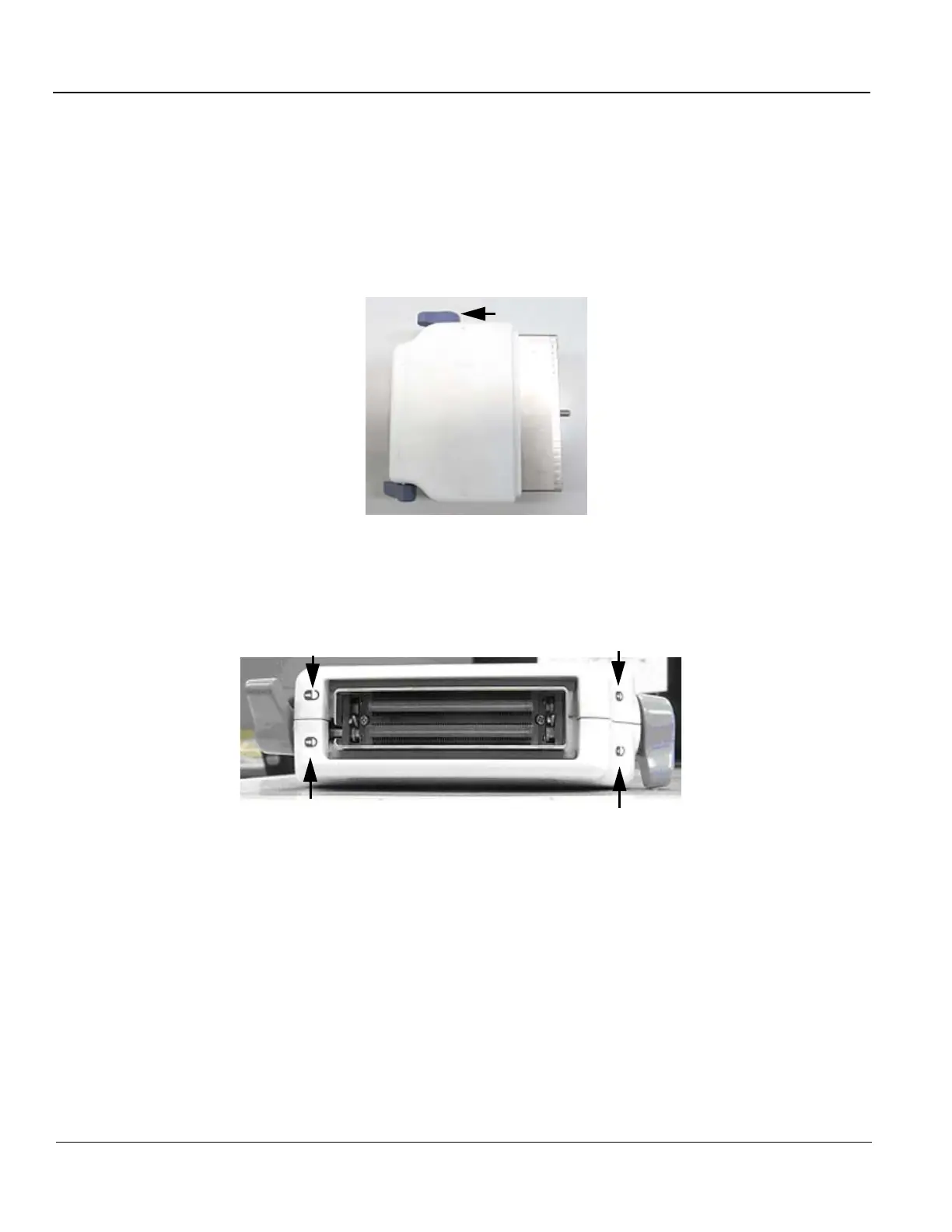

Figure 3-8 DLP-RS Connector
1.) Hold the probe connector and TEE DLP-RS adapter with the cable pointing DLP connector lock
knob.
2.) Turn the RS connector lock knob to release side.
Figure 3-9 Lock/Release position
3.) Align the connector with the RS port and carefully push into place.
4.) Turn the RS connector lock knob to the lock side.
5.) Hold the adapter + probe connector vertically with the cable pointing upward.
6.) Turn the DLP connector lock knob to lock side to secure the probe connector.
7.) Carefully position the probe cord so it is free to move and is not resting on the floor.
DLP Connector lock knob
RS Connector lock knob
RS Connector
(Probe side)
DLP Connector
(System side)
DLP Connector
lock knob
RS Connector
lock knob
Release
Lock
Lock
Release
