Maintenance: Acquisition Board Replacement
Acquisition Board Replacement
1. Remove the battery as described in “Battery Replacement” on page 5-6.
2. Remove the top cover as described in
“Keyboard/Top Cover Assembly
Removal & Reassembly”.
3. Remove the two Phillips head screws ho
lding the acquisition connector bracket
to
the acquisition board.
4. Remove the three fasteners holding the acquisition board to it’s mounting
bracket.
5. Pull up on cable connector to disconnect it from the main CPU board.
6. Remove acquisition board from the unit.
7. Reassemble by reversing the disassembly procedures.

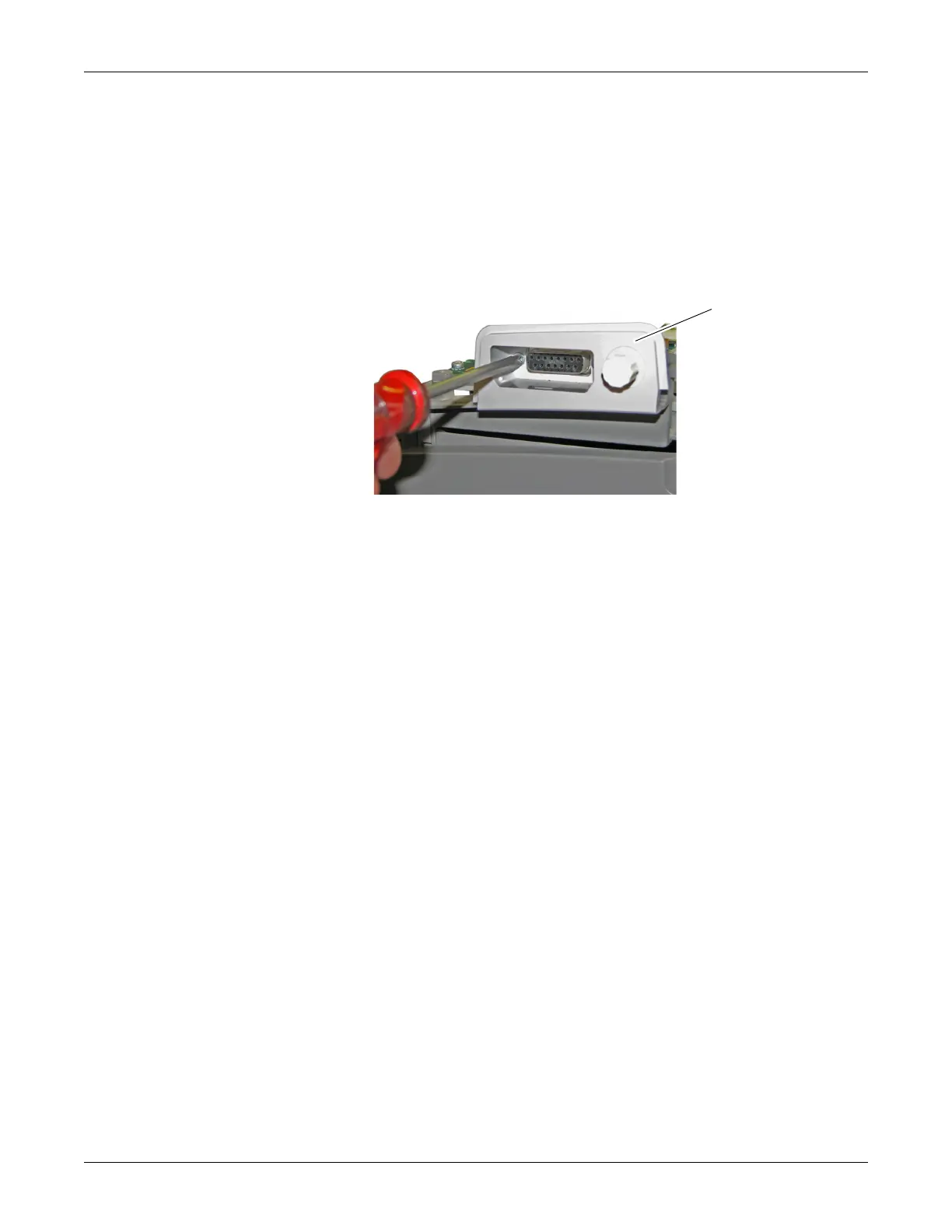

102A
acquisition
connector
bracket
