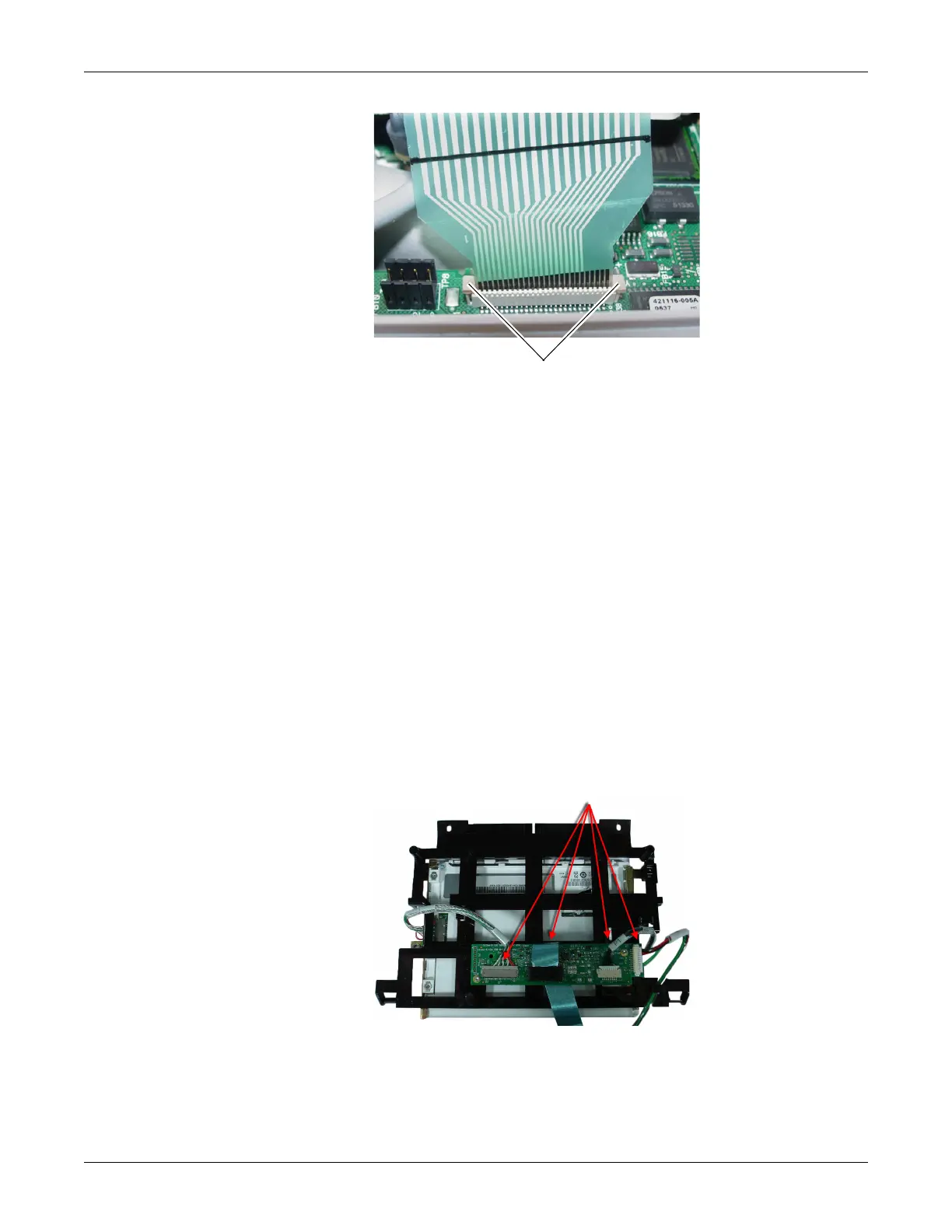

5-16 MAC™ 3500 Resting ECG Analysis System Revision L
2021337-036
Maintenance: Keyboard/Top Cover Assembly Removal & Reassembly
NOTE
Do not force the cable from its connecto
r. Raise both ends of the plastic
locking bar and gently pull the ribbon cable from the connector.
12. Lift upper cover from the assembly.
NOTE
The back bezel covering the rear connections will
fall off as you lift the off
the cover.
Replacing the LVDS Converter Board
Use the following procedure to replace the LVDS converter board required by the
AUO LCD Display (P/N 2062075-001).
1. Remove the display assembly from the devi
ce.
See “Removal of Keyboard/Top Cover Assembly” on page 5-14 for
instructions.
2. Disconnect all calbes from the LVDS converter board.
plastic locking bar
96A
