6-14 MAC™ 3500 Resting ECG Analysis System Revision L
2021337-036
Parts Lists: Field Replaceable Units (FRUs)
Universal Writer Kit, pn 2031810-002

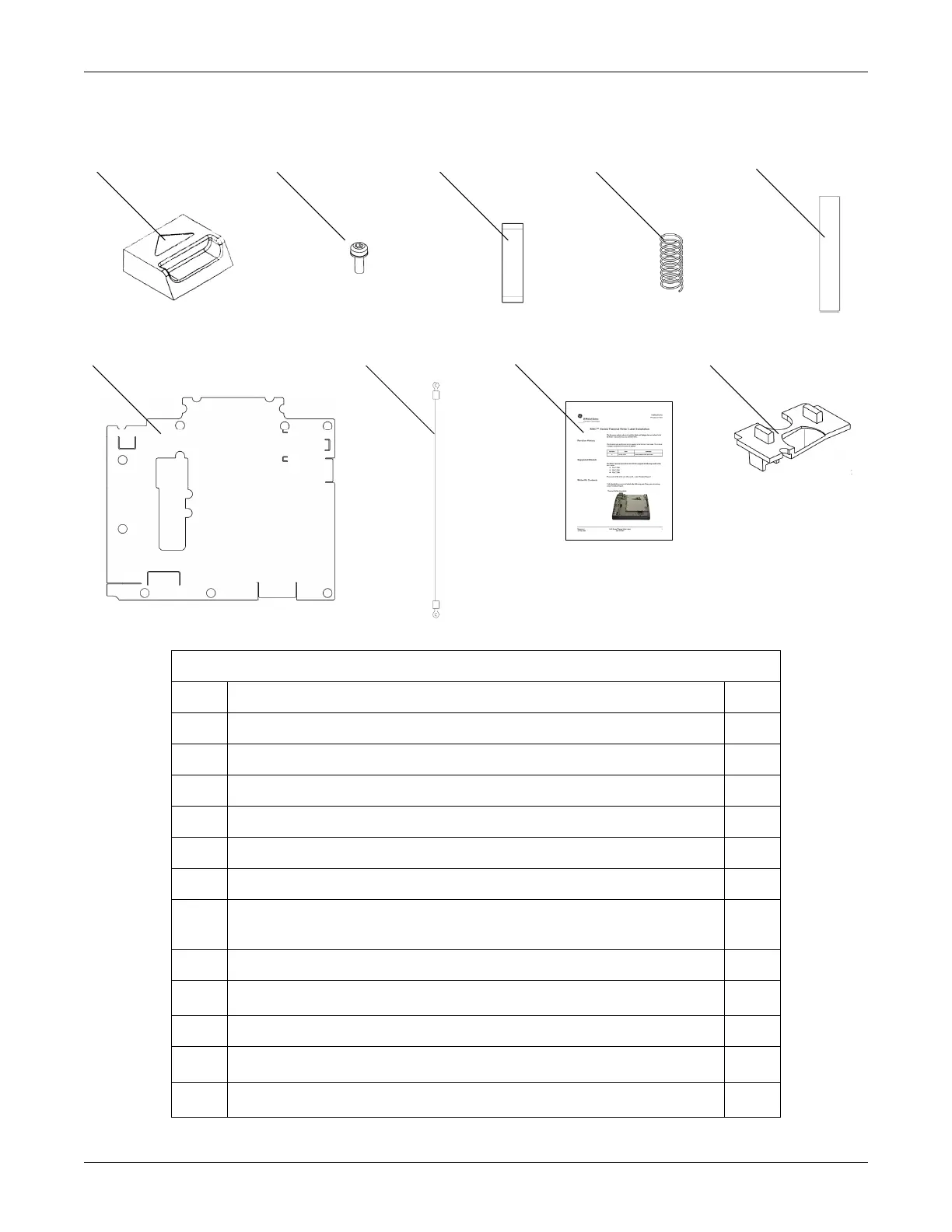

Table 4. Universal Writer Kit, pn 2031810-002
Item Description Qty
1 BUTTON BATTERY MAC SERIES 1
2 M3 X 8MM TORX SEMS 1
3 SPRING BATTERY MAC SERIES 1
4 SPRING, BAT. BUTTON MAC 1
5 PAD BOTTOM MAC SERIES 2
6 INSULATOR BD MAC SERIES 1
7 PRINTER THERMAL MAC3500
(See “Th
ermal Writer Assembly” on page 6-16)
1
8 HARNESS GROUND MAG MAC 5000 1
9
LABEL SET MAC5000 BOTTOM COVER
1
1
10 INSTALLATION INSTRUCTIONS 1
11
LABEL LED MAC SERIES
*
1
12
LABEL CE/UL MAC5000
*
1
1 2
3 4
5
6 8 10 13
