3-14 MAC™ 3500 Resting ECG Analysis System Revision L 
2021337-036
Installation: General Assembly
Barcode Reader Installation

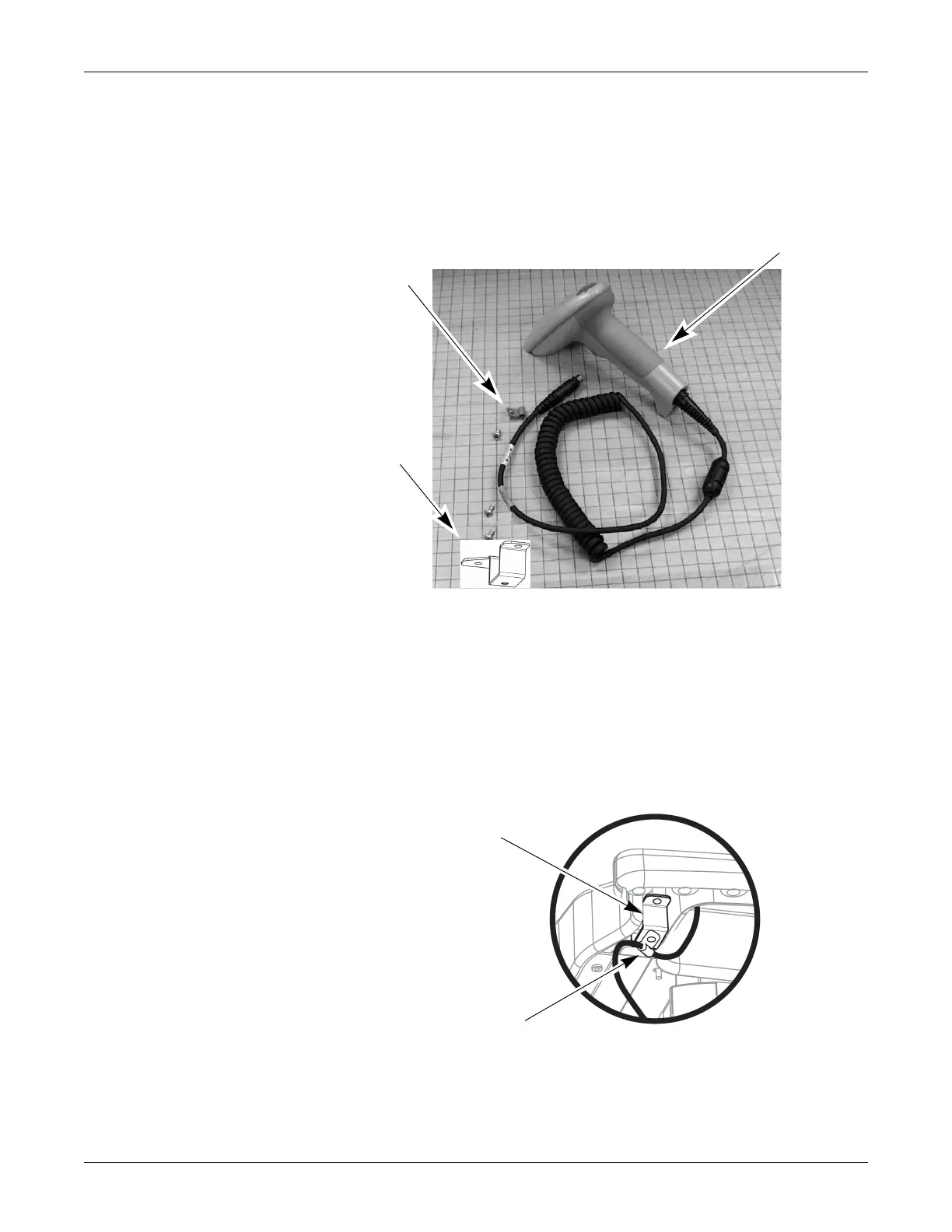

The barcode reader and its mounting bracket are ready to install on the trolley. To
install the Bar Code Reader and its cable mounting bracket on the trolley, complete
the following steps:
1. Fasten the cable clamp bracket to the underside
of the rear handle using a
Phill
ips screw driver and the self-tapping screws provided.
NOTE
DO NOT overtighten. Overtightening the s
crew may cause the screw to
strip and clamp to fail.
Cable
Clamp
Cable
Clamp
Bracket
Barcode
Reader
71A, 72A
Cable
Clamp
Cable
Clamp
Bracket
73A
