Revision L MAC™ 3500 Resting ECG Analysis System 3-15
2021337-036
Installation: General Assembly

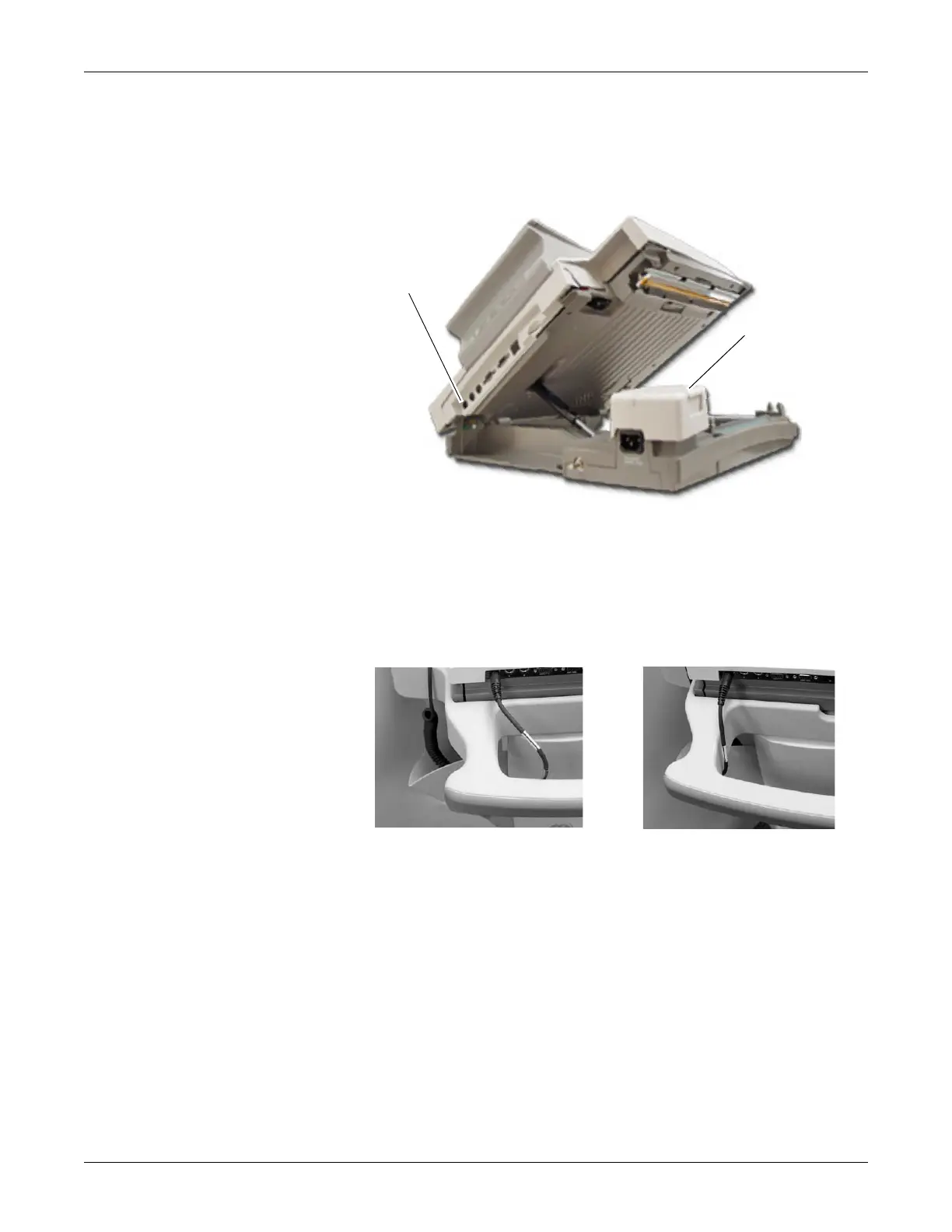

2. Press the internal access button to open the MAC 3500, then plug the cable
conn
ector into port A. Opening the MAC 3500 before
attaching the cable clamp
allo
ws you to place the correct amount of slack to free the cable from stress
when
the MAC 3500 needs to be re-opened.
3. Next fasten the cable and clamp to the clamp
bracket, then close the MAC 3500.
Observe that there is e
nough slack to allow free movement of the cable when re-
opening the MAC 3500.
4. Refer to the MAC 3500 Operator’s Manual for information on how to use the
barcode reader.
Internal Access
Button
9A
Port A
Not enough cable slack.
Correct amount of cable slack.
To Next Page
