3-12 MAC™ 3500 Resting ECG Analysis System Revision L 
2021337-036
Installation: General Assembly
Magnetic Card Reader Installation

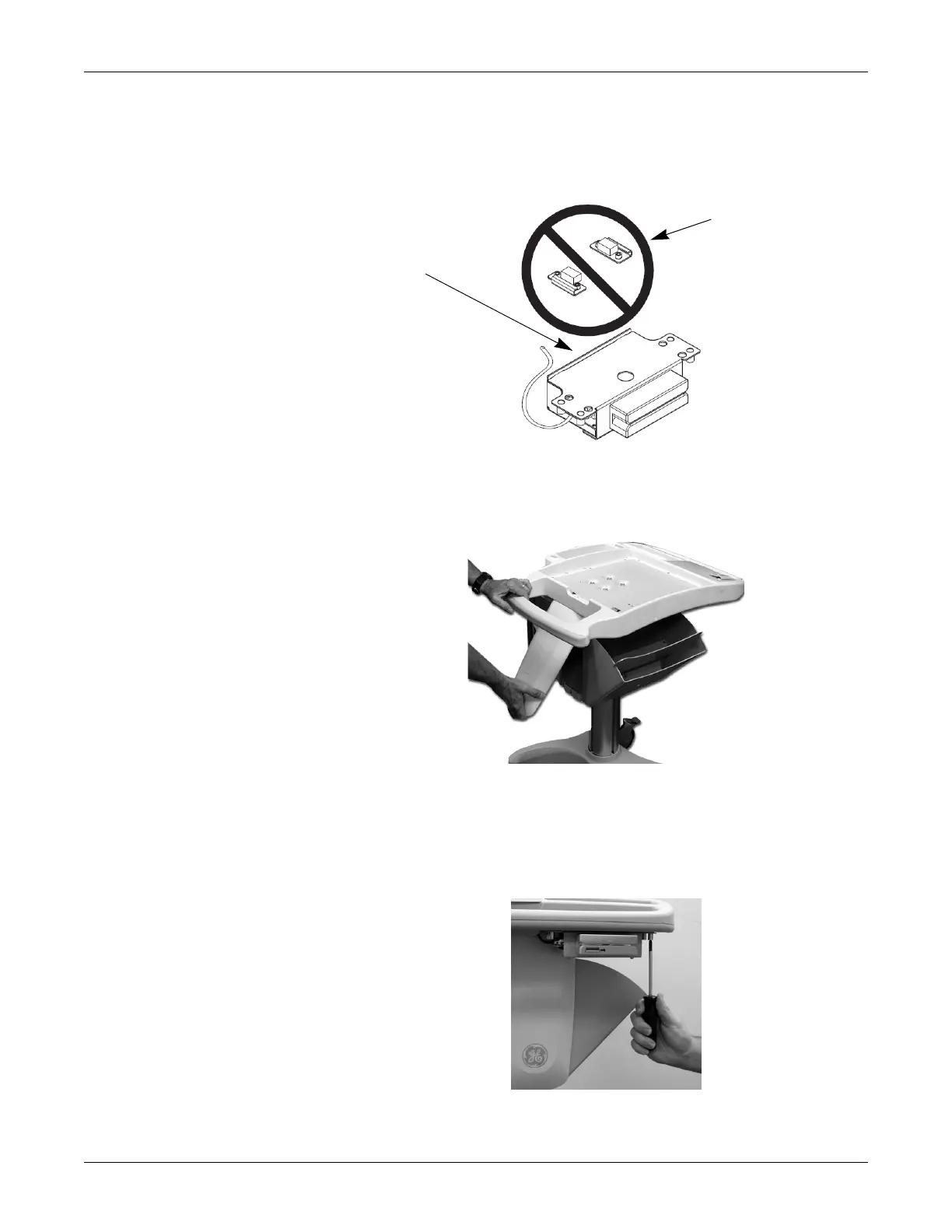

The magnetic card reader and its mounting bracket are assembled and ready to
install on the trolley. Parts are included for two different trolley styles. Disregard
and do not use the parts indicated in the following illustration.
To install the magnetic card reader and its m
ounting bracket on the trolley, complete
the following steps:
1. Remove both end panels by pulling out and up at the bottom.
2. Using a Phillips screw driver, fasten the card
reader assembly under the front
hand
le. Align with holes provided under front handle.
Card Reader
Assembly
Do Not Use
These Parts on
new style trolley
119A
112A
120A
