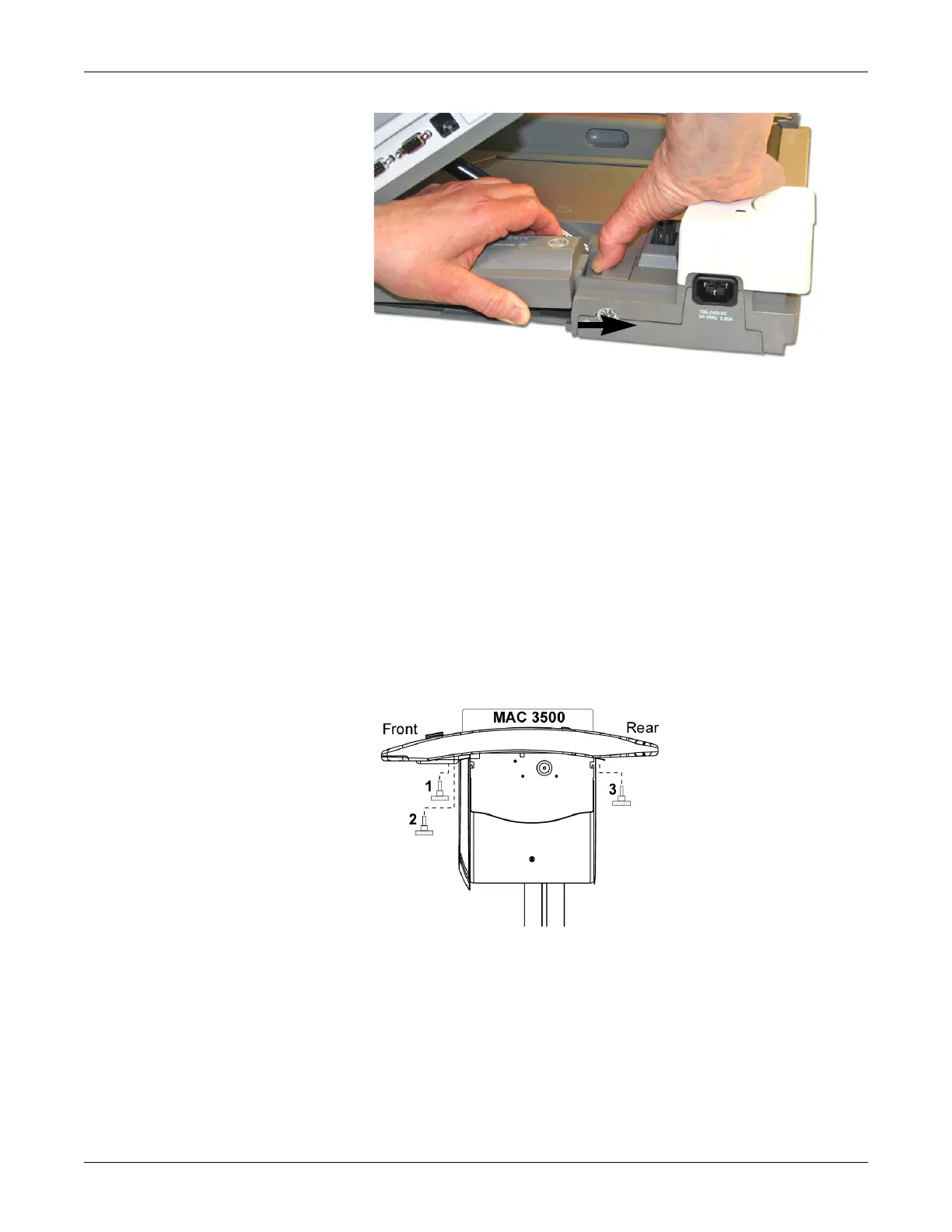

Revision L MAC™ 3500 Resting ECG Analysis System 5-7
2021337-036
Maintenance: FRU Replacement Procedures
NOTE
Once the maintenance procedures are complete,
reverse these steps to
replace the battery.
Remove MAC 3500 System From Trolley
If your MAC system is mounted on a trolley, you must remove it from the trolley
before servicing it. The method for removing the device depends on the type of
trolley.
MAC Series Trolley
1. Lock the wheels, remove the rear trolley panel then loosen the three captive
screws locat
ed under the trolley.
2. Pull the MAC 3500 up toward you
.
