4-6 MAC™ 3500 Resting ECG Analysis System Revision L
2021337-036
Troubleshooting: Assembly Descriptions

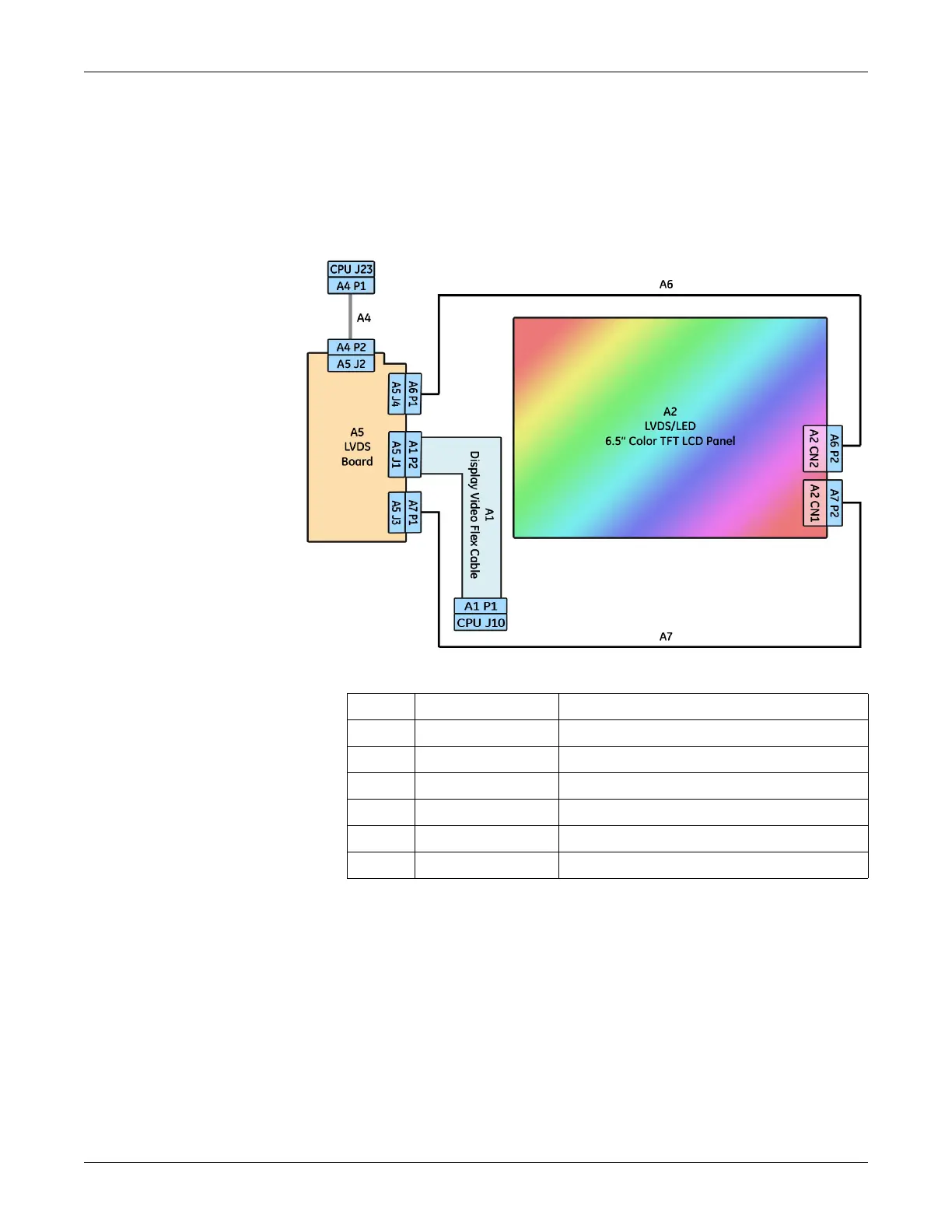

LED/LVDS Display Assembly Diagram
The following illustration diagrams the connections for the LVDS/LED display
assembly (2026799-002), and the table that follows it identifies those connections.
Item GE Part Number Desciption
A1 2024701-001 ASSY DISPLAY CABLE MAC3500 (CMOS)
A2 2062075-001 LVDS/LED LCD PANEL
A4 2024701-001 MAC3500 PWR CABLE MAIN BOARD TO LVDS
A5 2061540-001 PWA MAC5500 LVDS DRV BRD ROHS
A6 2059277-001 ASSY MAC3500 BACKLIT CABLE-AUO
A7 2059322-001 MAC3500 LCD CABLE
