5-10 MAC™ 3500 Resting ECG Analysis System Revision L
2021337-036
Maintenance: Power Supply Replacement
Power Supply Replacement

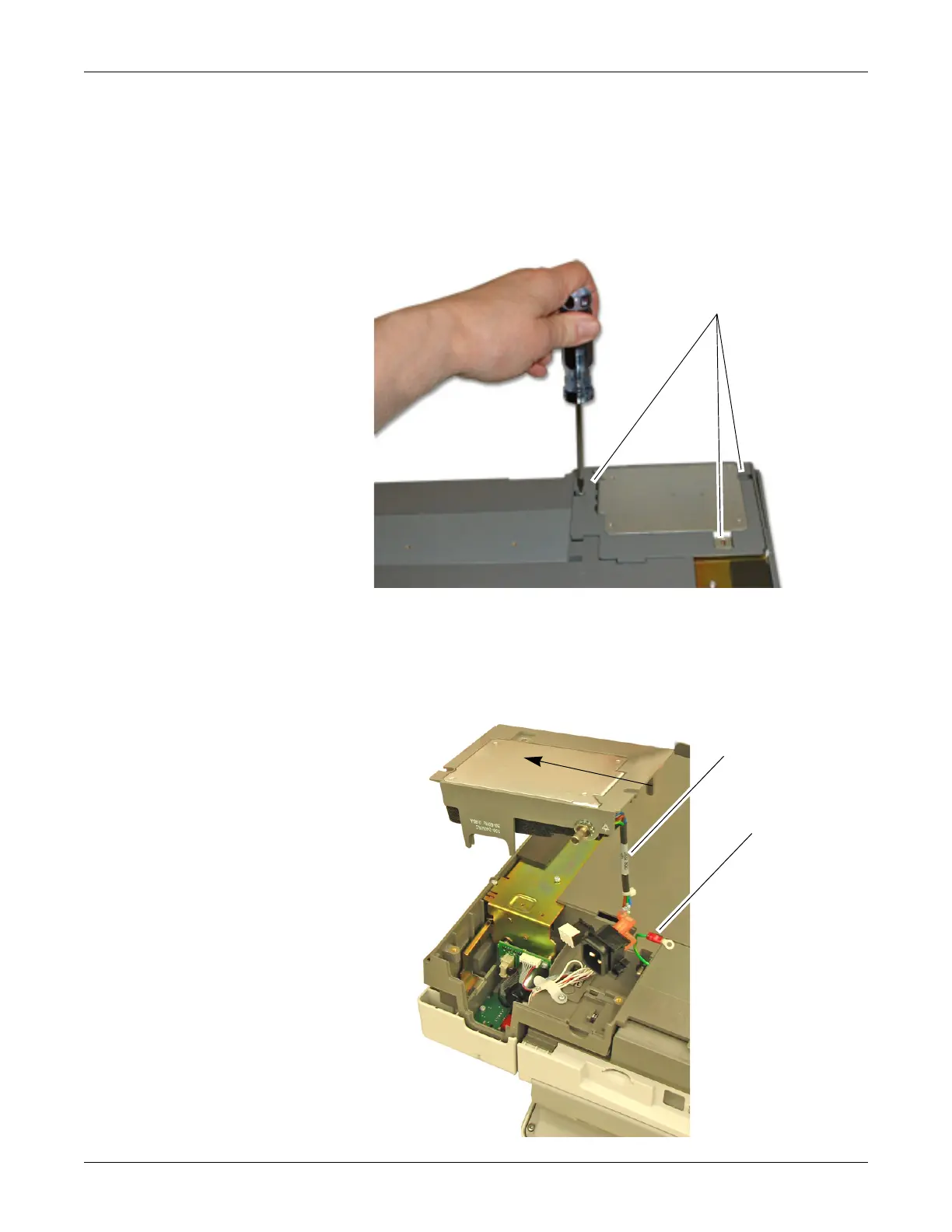

1. Turn the unit over so the bottom side is up.
2. Using a #10 Torx driver, remove the three fasteners holding the power supply in
pla
ce.
3. Lift the power supply to expose the wiring harness and ground wire.
4. Remove P2 from J2 on the power supply assembly and the ground wi
re
conn
ection from the power supply chassis.
Ground Wire
Wiring Harness
6A
To Next Page
