GE MAC 3500

Revision L MAC™ 3500 Resting ECG Analysis System 4-35
2021337-036
Troubleshooting: Input and Output Connectors
EXT. VID. Pins (J7)

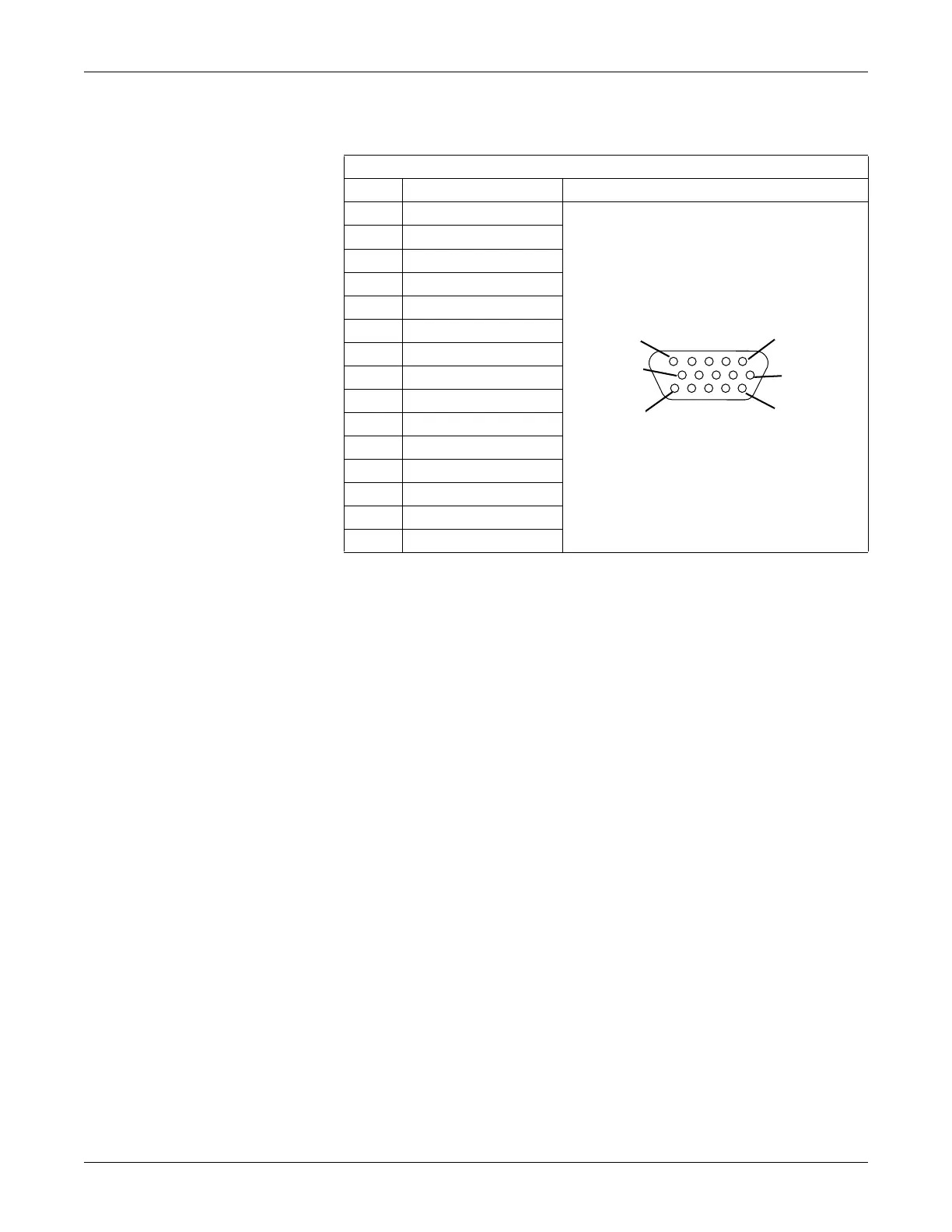

Table 6. External VGA Video (J7)
Pin Name
1 Red Video
2 Green Video
3 Blue Video
4 Ground
5 Ground
6 Ground
7 Ground
8 Ground
9 NC
10 Ground
11 Ground
12 NC
13 Horizontal Sync
14 Vertical Sync
15 NC
1
6
15
5
11
10
68A
