Maintenance: Preparing System for FRU Replacement

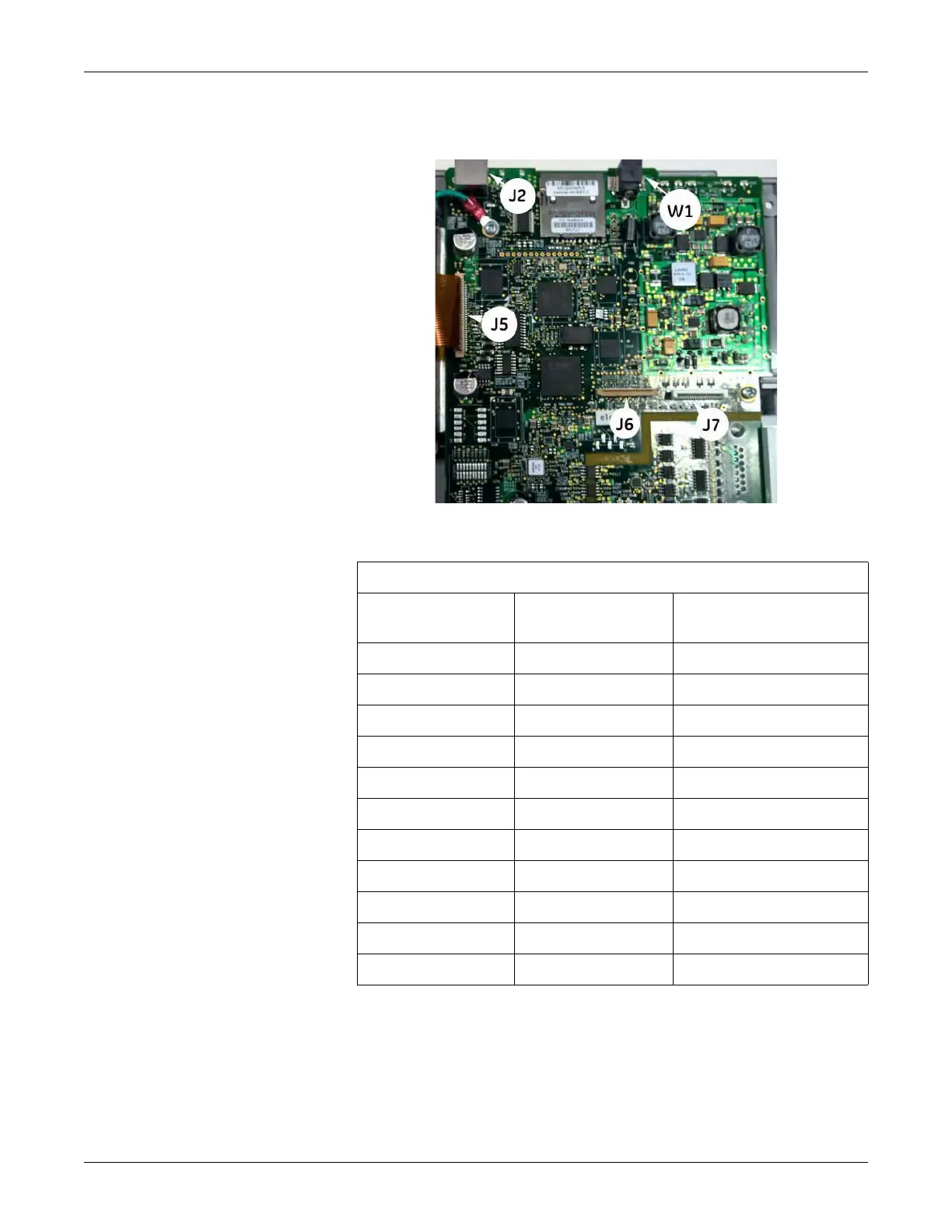

PWA Connectors for FRU PN 2066447-002 (new PWA).
PWA Connector Details
Table 4-5. PWA Connectors
Connector Description
OLD PWA FRU
PN: 2047330-001
NEW PWA FRU
PN:2066447-002
Key sheet J4 J7
Display J5 J6
Printer J10 J5
SD Card J1 J3
Power In W1 W1
RS232 J2 J2
JATAG J3 J8
USB J9 J1
Modem J12 J9
Patient Cable J7 J11
Battery J11 J10
