CHAPTER 3: INTERFACING WITH THE MM300 GRAPHICAL CONTROL PANEL
MM300 MOTOR MANAGEMENT SYSTEM – INSTRUCTION MANUAL 3–11

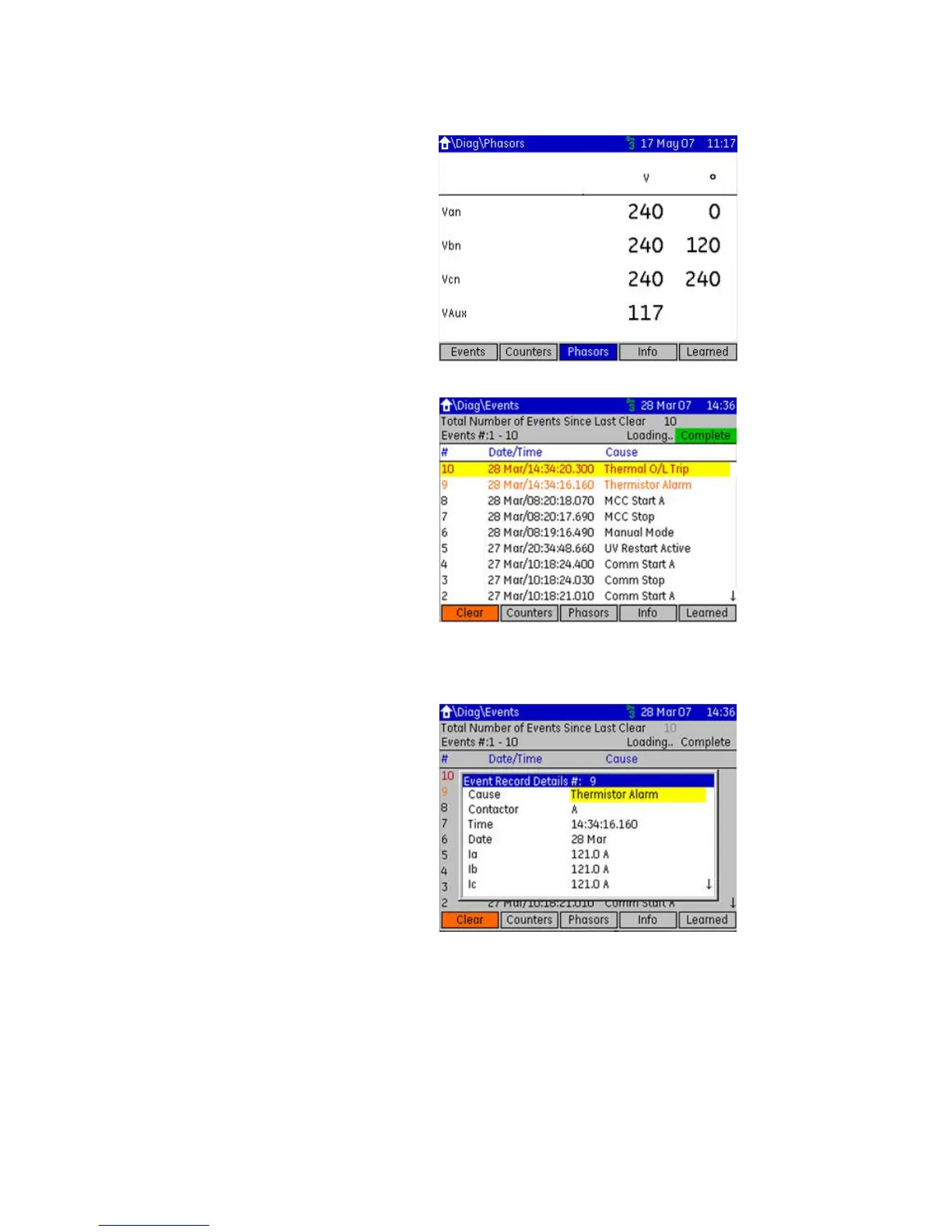

Figure 3-14: Typical phasors page
Figure 3-15: Typical events page
Pressing Enter on the highlighted line (line 9 above) will take you directly into the detailed
event analysis screen:
Figure 3-16: Typical event diagnosis page
