CHAPTER 3: INTERFACING WITH THE MM300 SOFTWARE
MM300 MOTOR MANAGEMENT SYSTEM – INSTRUCTION MANUAL 3–31
Creating a new
setpoints file
The EnerVista MM300/MM200 Setup software allows the user to create new setpoints files
independent of a connected device. These can be uploaded to a relay at a later date. The
following procedure illustrates how to create new setpoints files.

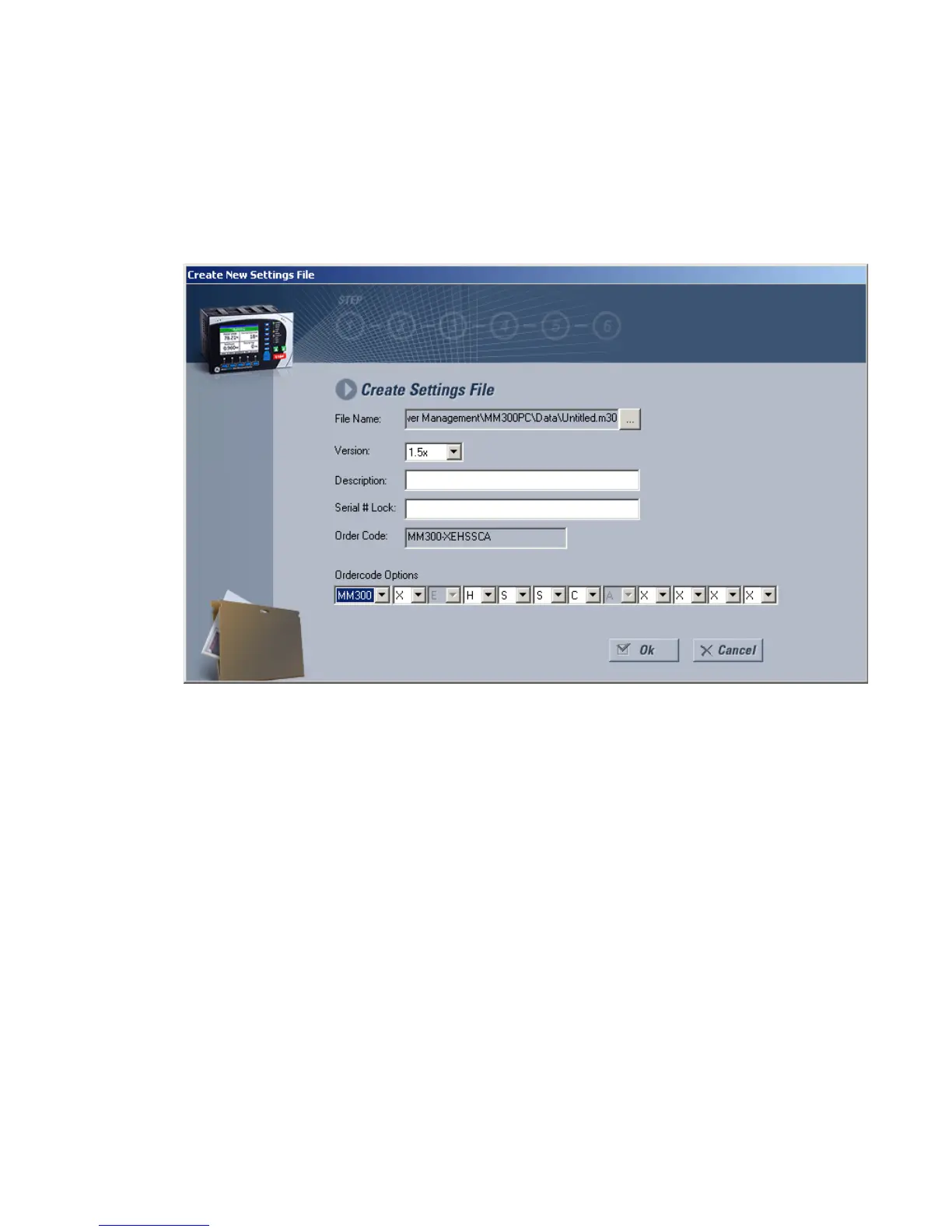

1. In the File pane, right click on File and select the New Setpoints File item. The
following box will appear, allowing for the configuration of the setpoints file for the
correct firmware version. It is important to define the correct firmware version to
ensure that setpoints not available in a particular version are not downloaded into the
relay.
2. Select the Firmware Version, and Order Code options for the new setpoints file.
3. For future reference, enter some useful information in the Description box to facilitate
the identification of the device and the purpose of the file.
4. To select a file name and path for the new file, click the button beside the File Name
box.
5. Select the file name and path to store the file, or select any displayed file name to
replace an existing file. All MM300
setpoints files should have the extension ‘M30’ (for
example, ‘ExerciserStatus.M30’).
6. Click OK to complete the process. Once this step is completed, the new file, with a
complete path, will be added to the EnerVista MM300/MM200 Setup
software
environment.
