Appendix C. Reading the MicroSD Car
d
Moisture T
arget Series 6 Hygr
ometer User
’s Manual
101
C.2
Accessing the Files (cont
.)

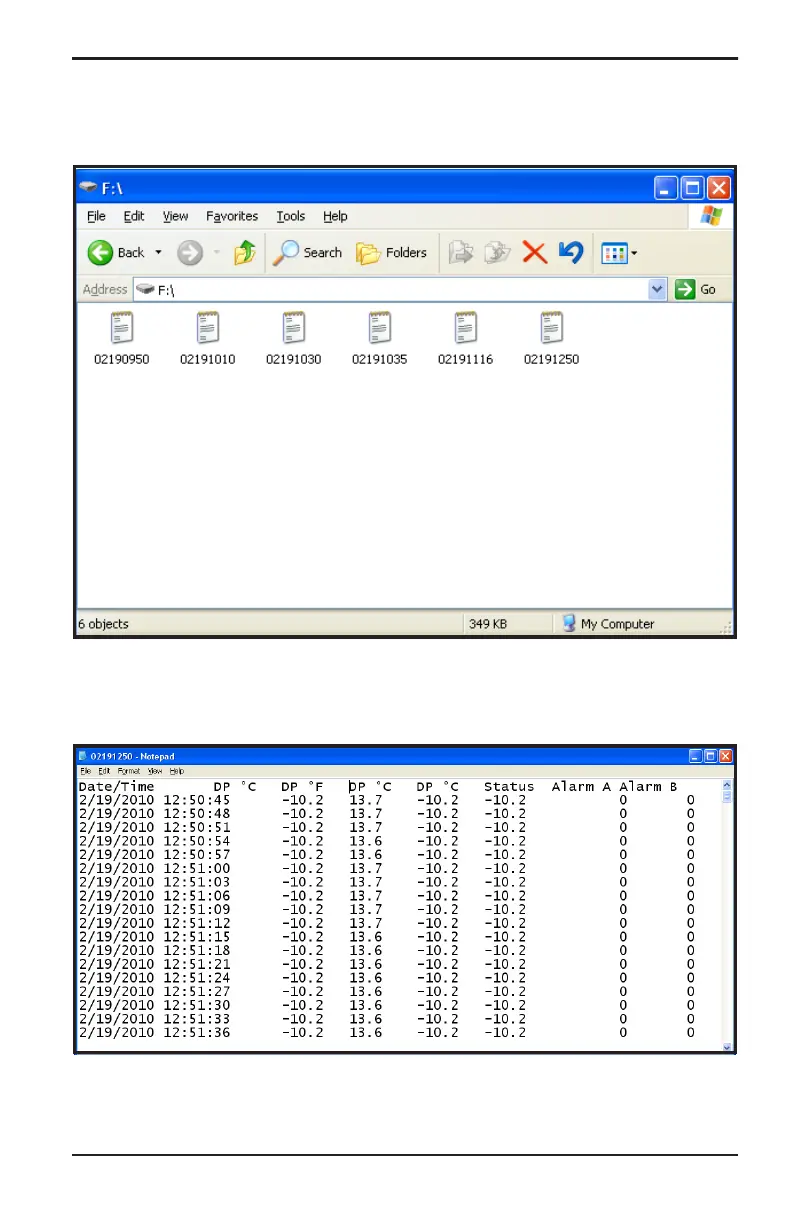

Figure 58: List of Log Files
3.
Click on the desired file and a screen similar to Figure 59 appears.
Figure 59: Log File Notepad
110
112
Table of Contents
Default Chapter
7
Table of Contents
7
Chapter 1. Features and Capabilities
11
Introduction
11
Electronics Unit
11
Probes
12
Chapter 2. Installation
13
Introduction
13
Selecting the Recorder Output
14
Mounting the Electronics Unit
18
Basic Mounting
18
Adapter Plate Mounting
22
Mounting the Sample System
26
Installing the Probe
27
Wiring the System
28
Connecting a Standard Probe
31
Connecting a Veridri Probe
34
Connecting the Recorder Outputs
37
Connecting the Relays
37
Installing the AC Power Cable
40
Installing the DC Power Cable
41
Chapter 3. Operation and Programming
43
Using the MTS6
43
Starting up
43
Accessing the Menus
44
Entering Numeric Values
45
Setting up the Display
46
Selecting Primary Units
46
Setting Decimal Places
47
Contrast
47
Setting up the Output
48
Entering the Output Menu
48
Selecting Output Units
48
Selecting an Output Type
49
Changing the Upper Output Span
49
Changing the Lower Output Span
50
Testing the Output
50
Trimming the Outputs
51
Setting up Alarms
53
Selecting an Alarm Output
53
Selecting Alarm Status
53
Selecting Alarm Units
54
Selecting an Alarm Type
54
How the Alarm Types Work
55
Changing the Upper Alarm Span
56
Changing the Lower Alarm Span
56
Testing the Alarm Relays
57
Logging
57
Checking the Data Log Status
57
Log Settings Menu
58
Managing Log Files
61
Ejecting the SD Card
65
Viewing Data Logs
65
Setting Other Information
66
Entering the Passcode
66
Setting the Fault Alarm
66
Setting Autocal
69
Setting Calibration Data 1
70
Setting Calibration Data 2
73
Reading and Setting the Calibration References
75
Entering the M Series Probe Serial Number
77
Setting the Volume Mixing Ratio
78
Resetting the Time
80
Selecting the Probe Type
83
Setting a Constant DP °C Offset
84
Viewing System Information
85
Checking the ID
85
Checking the Status
85
Checking the Software Version
86
Checking the Probe
86
Checking the Wiring
87
Locking the Menu
87
Chapter 4. Service and Maintenance
91
Introduction
91
Common Problems
91
Replacing/Recalibrating Moisture Probes
93
Cleaning the MTS6 Front Panel
94
Chapter 5. Specifications
95
Electronics
95
Moisture Measurement
97
Appendix A. Outline and Installation Drawings
99
Appendix B. Menu Maps
103
Appendix C. Reading the Microsd Card
107
Removing the Card
107
Accessing the Files
110
Setting up the Files
113
Appendix D. the Non-Enclosure MTS6 Package
117
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
