5–2 489 GENERATOR MANAGEMENT RELAY – INSTRUCTION MANUAL
CHAPTER 5: SETPOINTS


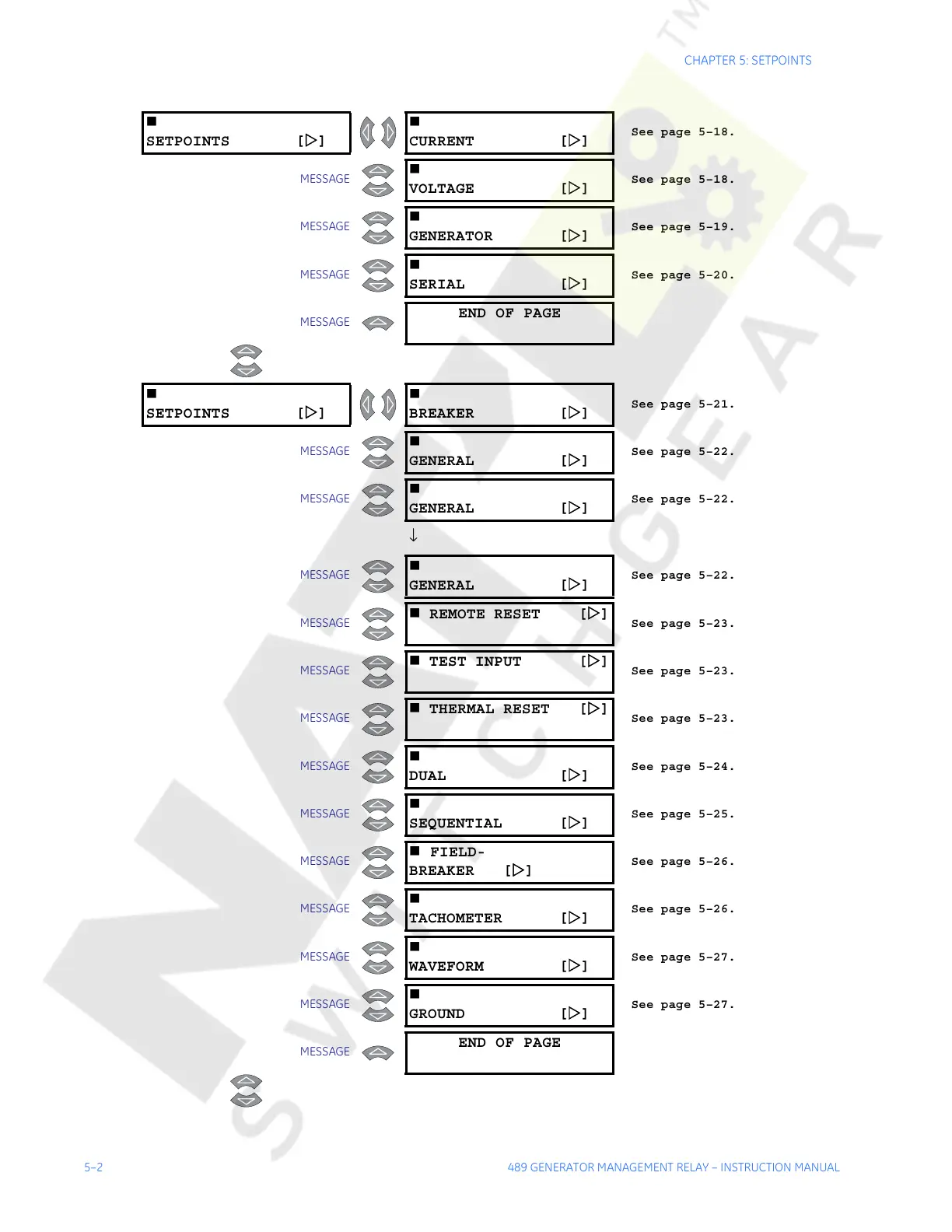

SETPOINTS [Z]

CURRENT [Z]
See page 5–18.
MESSAGE

VOLTAGE [Z]
See page 5–18.
MESSAGE

GENERATOR [Z]
See page 5–19.
MESSAGE

SERIAL [Z]
See page 5–20.
MESSAGE
END OF PAGE

SETPOINTS [Z]

BREAKER [Z]
See page 5–21.
MESSAGE

GENERAL [Z]
See page 5–22.
MESSAGE

GENERAL [Z]
See page 5–22.
↓
MESSAGE

GENERAL [Z]
See page 5–22.
MESSAGE
 REMOTE RESET [Z]
See page 5–23.
MESSAGE
 TEST INPUT [Z]
See page 5–23.
MESSAGE
 THERMAL RESET [Z]
See page 5–23.
MESSAGE

DUAL [Z]
See page 5–24.
MESSAGE

SEQUENTIAL [Z]
See page 5–25.
MESSAGE
 FIELD-
BREAKER [Z]
See page 5–26.
MESSAGE

TACHOMETER [Z]
See page 5–26.
MESSAGE

WAVEFORM [Z]
See page 5–27.
MESSAGE

GROUND [Z]
See page 5–27.
MESSAGE
