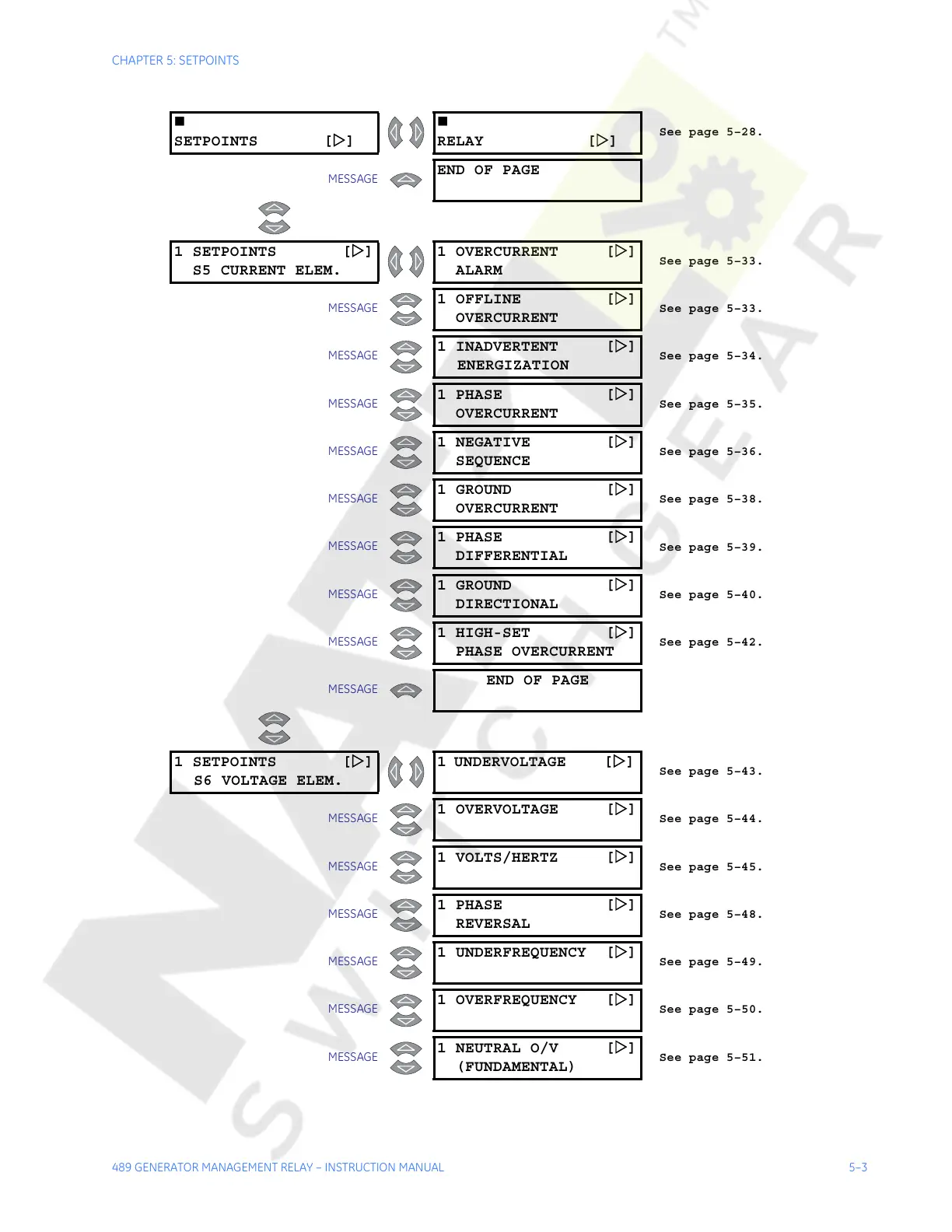

GE Multilin 489

CHAPTER 5: SETPOINTS
489 GENERATOR MANAGEMENT RELAY – INSTRUCTION MANUAL 5–3

SETPOINTS [Z]

RELAY [Z]
See page 5–28.
MESSAGE
END OF PAGE
1 SETPOINTS [Z]
S5 CURRENT ELEM.
1 OVERCURRENT [Z]
ALARM
See page 5–33.
MESSAGE
1 OFFLINE [Z]
OVERCURRENT
See page 5–33.
MESSAGE
1 INADVERTENT [Z]
ENERGIZATION
See page 5–34.
MESSAGE
1 PHASE [Z]
OVERCURRENT
See page 5–35.
MESSAGE
1 NEGATIVE [Z]
SEQUENCE
See page 5–36.
MESSAGE
1 GROUND [Z]
OVERCURRENT
See page 5–38.
MESSAGE
1 PHASE [Z]
DIFFERENTIAL
See page 5–39.
MESSAGE
1 GROUND [Z]
DIRECTIONAL
See page 5–40.
MESSAGE
1 HIGH-SET [Z]
PHASE OVERCURRENT
See page 5–42.
MESSAGE
END OF PAGE
1 SETPOINTS [Z]
S6 VOLTAGE ELEM.
1
UNDERVOLTAGE [Z]
See page 5–43.
MESSAGE
1 OVERVOLTAGE [Z]
See page 5–44.
MESSAGE
1 VOLTS/HERTZ [Z]
See page 5–45.
MESSAGE
1 PHASE [Z]
REVERSAL
See page 5–48.
MESSAGE
1 UNDERFREQUENCY [Z]
See page 5–49.
MESSAGE
1 OVERFREQUENCY [Z]
See page 5–50.
MESSAGE
1 NEUTRAL O/V [Z]
(FUNDAMENTAL)
See page 5–51.
