– 68 –
(Continued next page)
Install the L.P. orifi ces in their precise locations. 5.
Install the extended spud on the 15K Extra Large
front right burner (on models so equipped).
Note: To prevent leakage, make sure the orifi ce
spuds are securely screwed into the gas supply
tubes.
For the Extra Large burner (right front), the choke 6.
and set screw will be needed. Insert the choke
into the burner head; then insert the set screw
into the burner head and tighten securely. Make
sure the screw head is against the shoulder
(within the choke notch) so it does not have any
rotational movement.
Install the old orifi ce spuds into the metal 7.
bracket and replace both metal brackets back
on the range for possible future conversion.
Note: In the future, to convert back to natural gas,
remove the entire L.P. extended orifi ce spud.

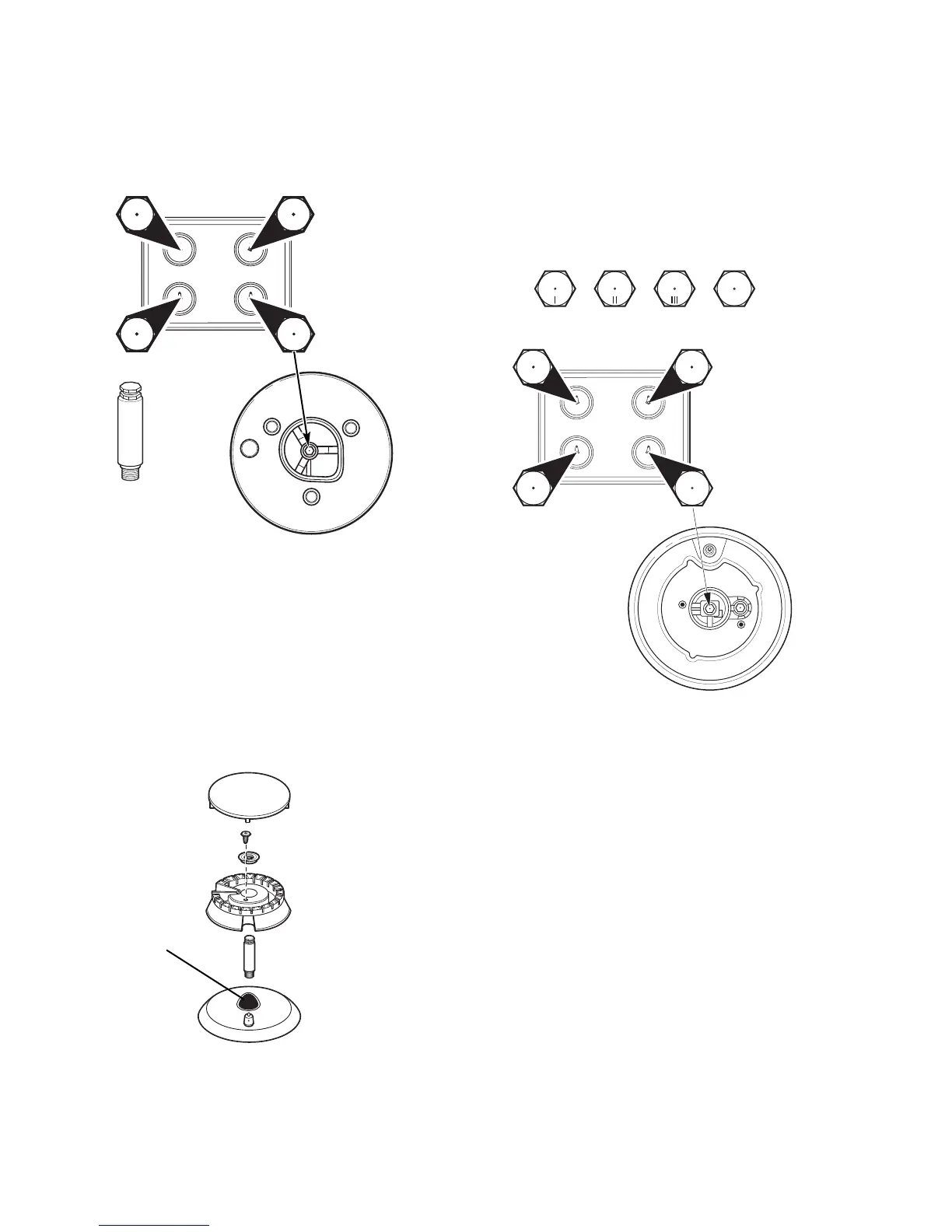

Front of Range
Note: On
15K Extra
Large front
right burner,
use the
Extended
Spud.
Extended
Spud for
front right
Extra
Large
burner
Burner Cap
Burner Head
Base
Set Screw
Choke
ORIFICE SPUD
LOCATED
THRU THIS
OPENING
Extended Spud
Convection Range
Each orifi ce will also show a series of engraved 8.
marks (I, II, III) or a number (108) located on
the top. These marks and numbers denote the
precise location of each orifi ce to the cooktop
burner.
Install the L.P. orifi ces in their precise locations.9.
Note: On models with dual burner orifi ces, the
simmer orifi ce is not changed for L.P. conversion.
IMPORTANT: Return the natural orifi ces to the
bracket and reattach the bracket and these
instructions to the range using the screw previously
removed.
108
II
III
I
108
