5. Control Input / Output
5-19
5-9-5 Torque ratio 1 setting
(1) Torque ratio 1 setting selection
The torque setting from ASR or from the outside can be operated with the multiplier factor given by
function “Torque ratio 1”. This function can be set from either the Operation Panel or from the serial
communication function.
Setting
input point
Setting data Explanation
Serial Torque ratio 1 setting
This is a setting value allowed from the host computer with
serial transmission.
Panel Panel torque ratio 1
setting
This is a setting value allowed from the parameter (B13-1).

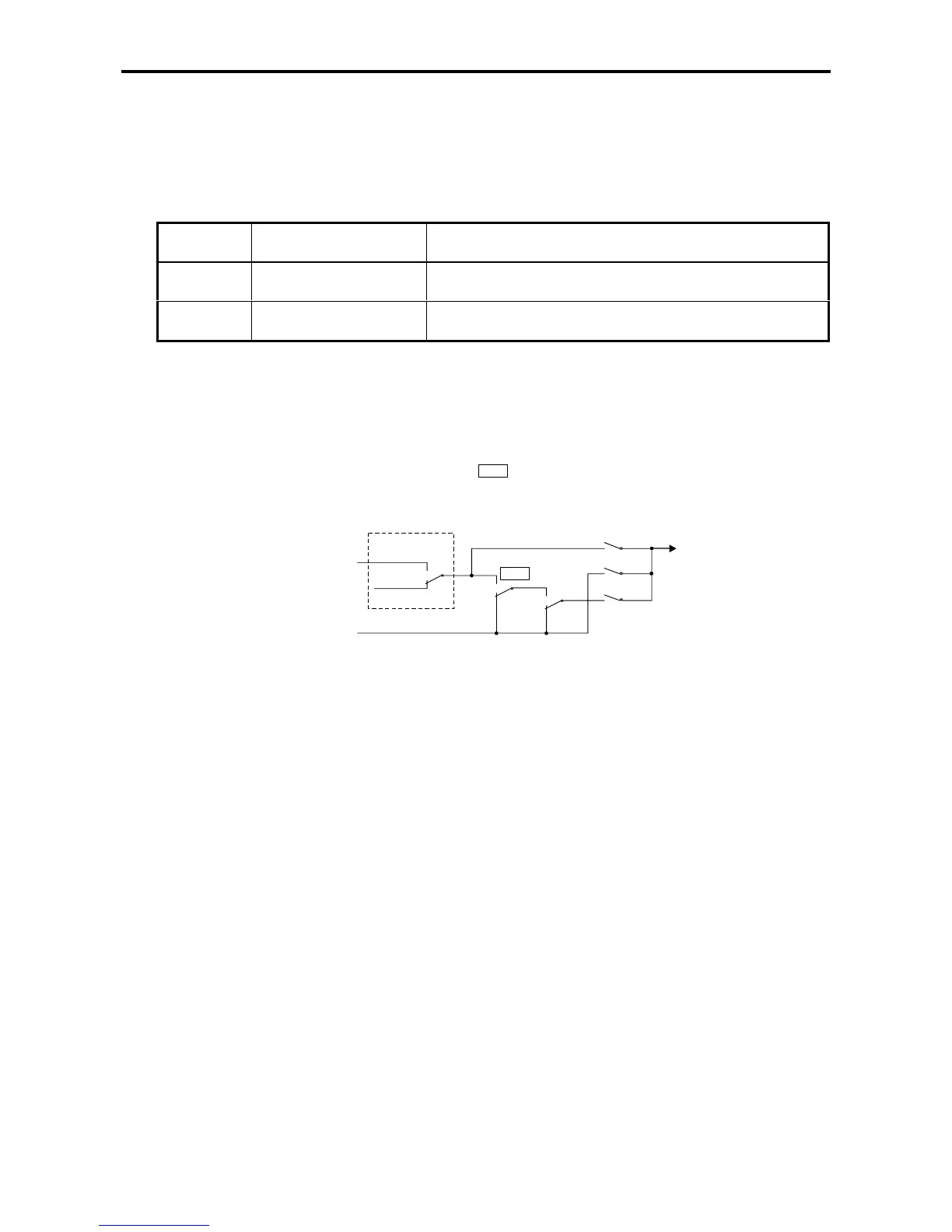

(2) Torque ratio 1 setting selection sequence
The interlock sequence for the Torque ratio 1 setting is shown below.
Torque ratio1
setting
Serial, Torque ratio 1
setting
1.000
O. Panel, Torque ratio 1
setting (B13-1)
on
on
off
off
Mounted
Not mounted
Option
CFS
LCL
=1
=2
=3
C02-3
:
:
XXX
XXX
Functions that can be controlled ON / OFF
from terminal board
Functions that can be controlled ON / OFF
By parameter setting only
Fig. 5-14 Torque ratio 1 setting selection
