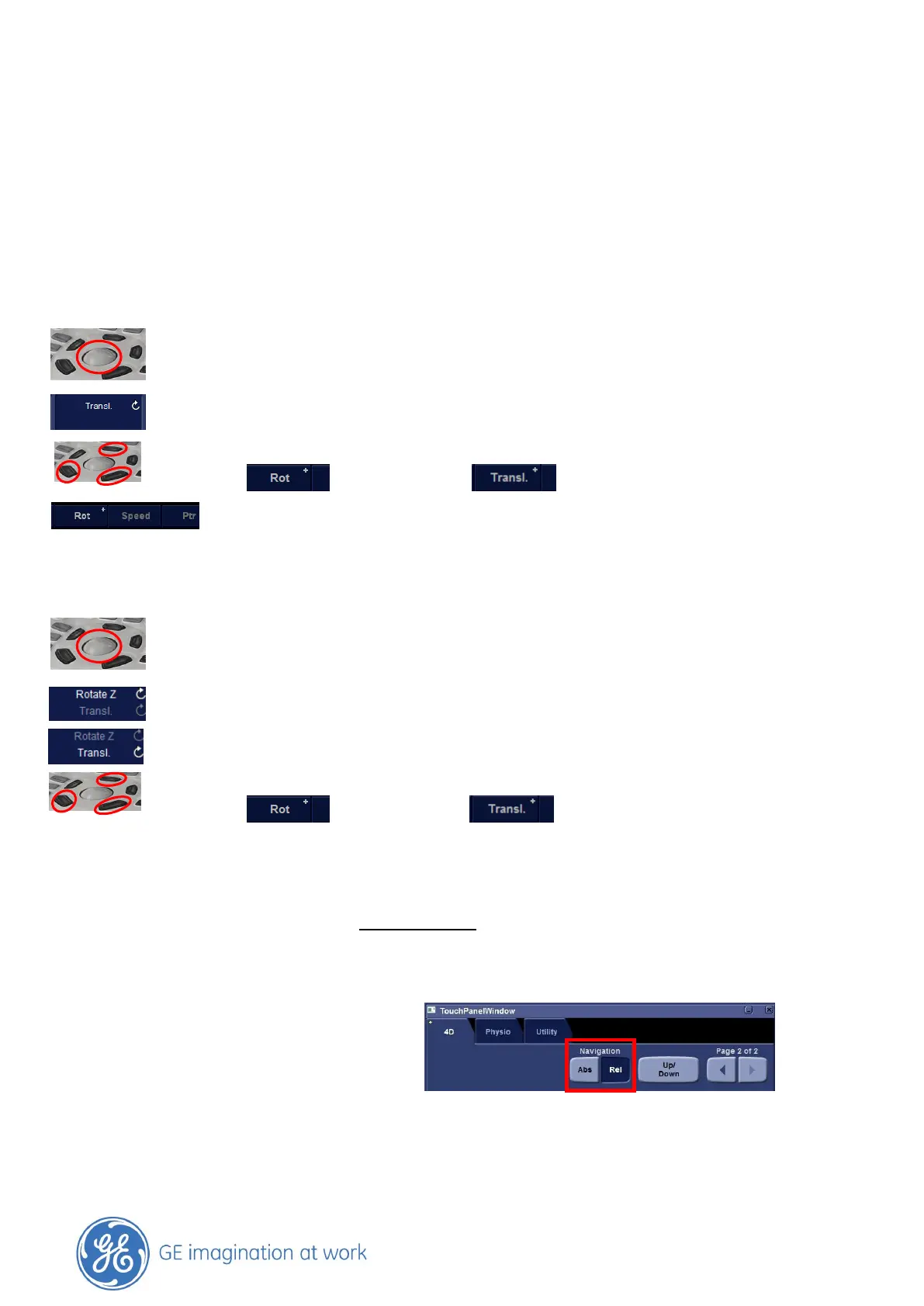

4D Navigation
Absolute or Relative
Absolute navigation
Trackball up/down: Tilt the dataset up/down
Trackball left/right: Rotate counter clockwise/clockwise
Translation can be done, by using the rotational knob or by pressing the
Set button to change the Trackball function from
Rotation to Translation
Trackball function is shown at the lower right corner at the screen.
Relative navigation
Trackball up/down: Tilt the dataset up/down
Trackball left/right: Tilt the dataset left/right
Rotate Z: Rotate counter clockwise/clockwise by using the rotational knob
Translation: Press the Rotate Z rotational knob or the
Set button to change the Trackball function from
Rotation to Translation
Factory default:
6VT- D set up to Relative Navigation: recommended setting
4V-D set up for Absolute navigation
Configuration
Absolute or Relative navigation can be
selected on Page 2, while in 4D imaging.
Absolute or Relative navigation can be stored with the user preset.
