GE Vivid E9 Series User Manual

GE Healthcare
- 15 -

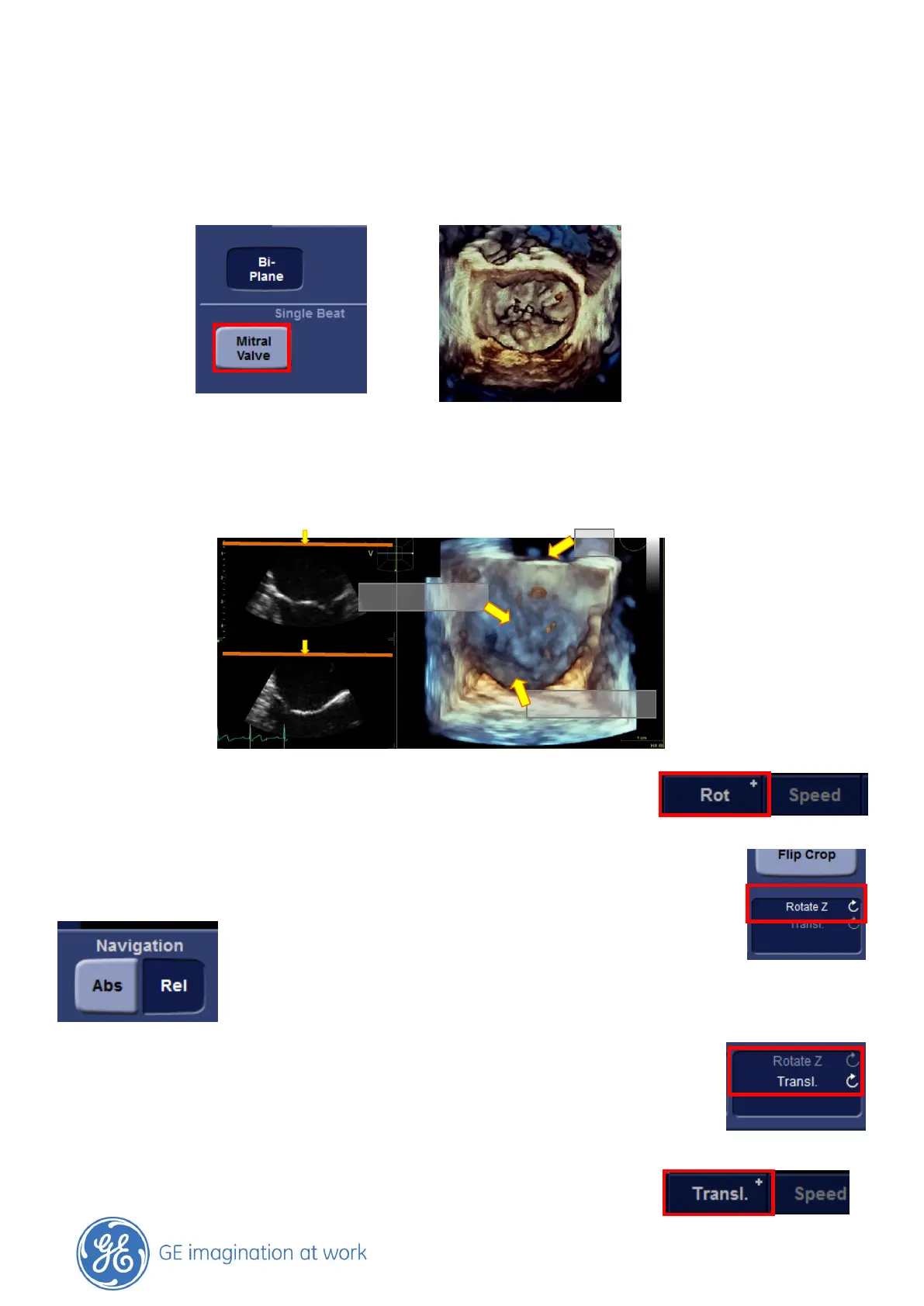

MV button
The intention of the MV button is to get instantaneous access to the surgical view (Aortic valve at
12o’clock position) with one push of a button.
Once the Zoom ROI is set properly press the Mitral valve button on the touch panel
Rendered image
A rendered zoomed image of the MV is displayed in the rendered mode.
The viewing plane looks from the left atrium towards the Mitral Valve.
The dataset is rotated 90° counter clockwise to have AV in 12 o’clock position.
By moving the trackball with the Rotation function the dataset can be
further optimized to the correct positioning.
Rotation clockwise/counter clockwise can be done by using the Rotate Z rotational
Knob
Rotate Z is only available when in Relative Navigation Mode
(Page 2 on the touch panel)
Translation of the viewing plane can be used to move closer to the MV if needed.
Either use the Translation rotational knob on the touch panel (press on Rotate Z
to change to Translation)
or
press the Set button to change the trackball function from Rotation to
Translation
AV
Anterior MV
leaflet
Posterior MV
leaflet

GE Vivid E9 Series Specifications

General

Display	High-resolution LCD
Power Requirements	100-240 VAC, 50/60 Hz
Application	Vascular
Monitor Size	19-inch
Transducers	phased array, convex, linear
Doppler Modes	Color Doppler, PW Doppler, CW Doppler
3D/4D Imaging	Yes
Beamformer	Advanced beamformer
Operating Modes	B-Mode, M-Mode, Color Doppler, PW Doppler, CW Doppler, TDI, 3D/4D
Advanced Imaging Options	Speckle Reduction Imaging
Connectivity	DICOM, USB, Ethernet
Dimensions	Varies depending on configuration
Weight	Varies by configuration
Portability	Cart-based system
