- 8 -

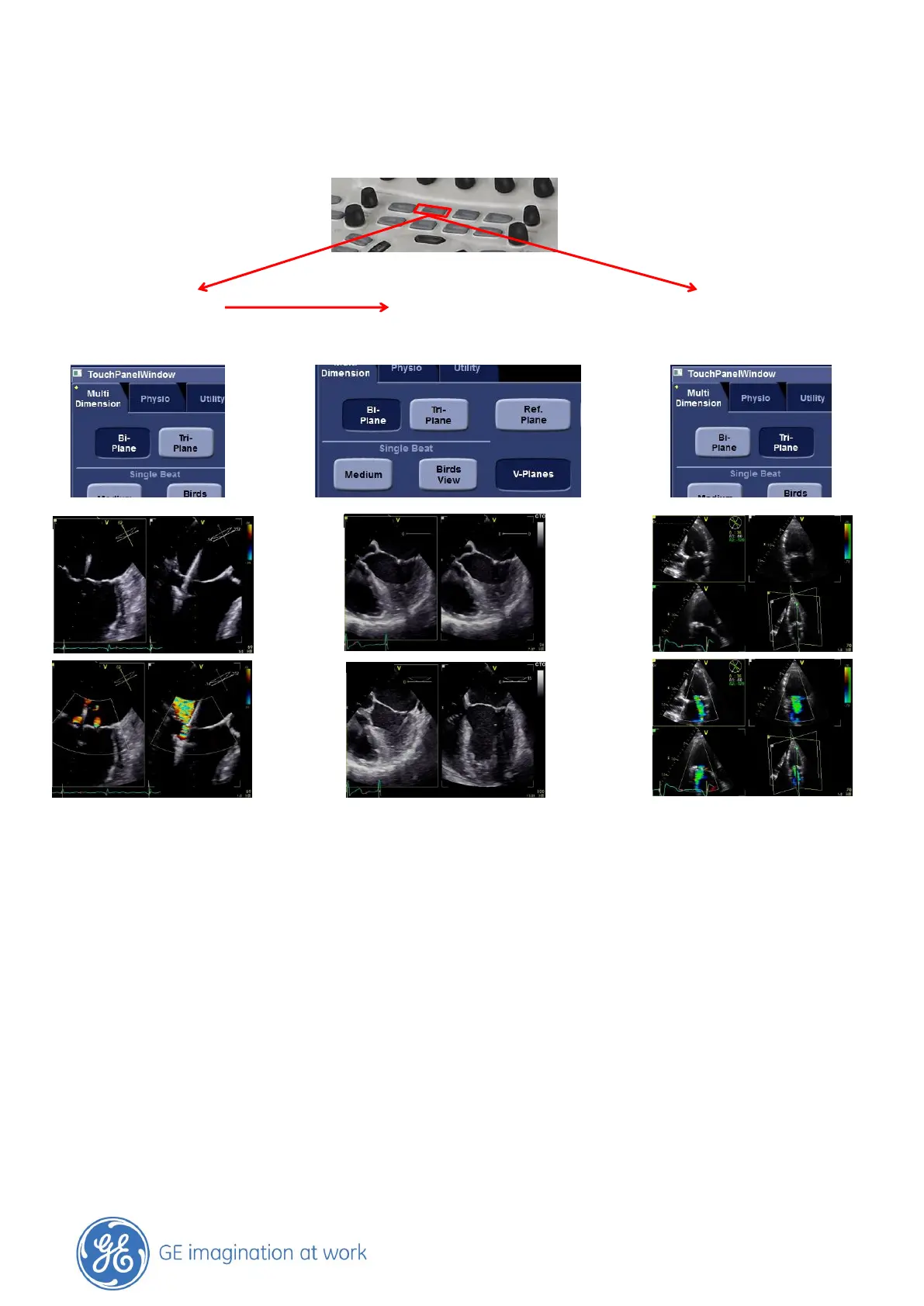

Multi D
Multi - Dimensional
Bi – Plane V- Plane Tri – Plane
(Default)
Bi - Plane / Tri - Plane
Scan plane rotation
The angle increment of scan plane 2 or 3 relative to the scan plane 1 (fixed) can be adjusted with the
trackball. The rotation is done around the crossing line between the scan planes with the rotary
button.
Tilting scan plane 2
In Bi – plane mode, the scan plane 2 can be tilted around the top of the scanning sector using the
trackball.
V – Plane
In Bi - plane Mode scan plane 2 has the same angle as scan plane 1 .The scan plane 2 can be tilted.
Navigator (4)
Displays the position of the scan planes as seen from the probe.
1
1
2
3
2
3
4
1
2
1
2
4
1
1
2
2
4

GE Vivid E9 Series Specifications

General

Display	High-resolution LCD
Power Requirements	100-240 VAC, 50/60 Hz
Application	Vascular
Monitor Size	19-inch
Transducers	phased array, convex, linear
Doppler Modes	Color Doppler, PW Doppler, CW Doppler
3D/4D Imaging	Yes
Beamformer	Advanced beamformer
Operating Modes	B-Mode, M-Mode, Color Doppler, PW Doppler, CW Doppler, TDI, 3D/4D
Advanced Imaging Options	Speckle Reduction Imaging
Connectivity	DICOM, USB, Ethernet
Dimensions	Varies depending on configuration
Weight	Varies by configuration
Portability	Cart-based system
