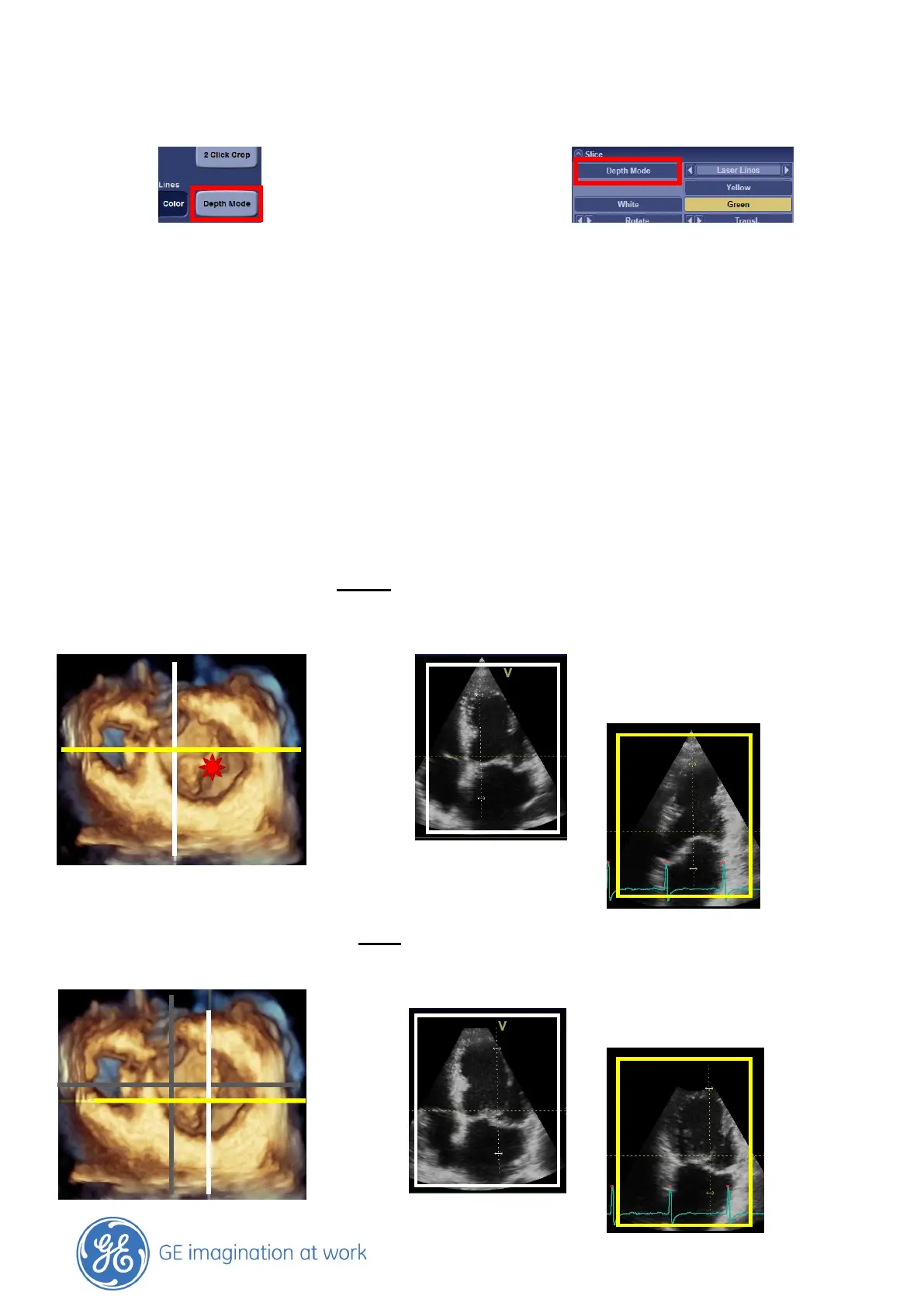

Render Depth mode
Vivid E9 touch panel EchoPAC
In order to get views within a specific depth of the object, the Depth mode can be used. The principle
is the same as described before, but this time the system takes the depth inside the heart into
account.
Simply choose the structure of interest and set your cursor on this structure in the rendered image
i.e. the tip of a MV leaflet. The System will automatically move the green 2D slice on this position and
give you a nice short axis from i.e. the MV leaflet tip.
Tip
To set the cursor easier on the correct position and depth, it’s preferred to stop the loop.
Adjust on Render
The render image can be used to position the yellow and white plane with just one click.
Move the cursor on the position of interest in the rendered image, with only one click the two planes
are getting moved to the new position.
Before
Image and lines to manipulate 2D slices belonging to the lines
After
Old and new position of the lines 2D slices belonging to the lines
